1742543 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

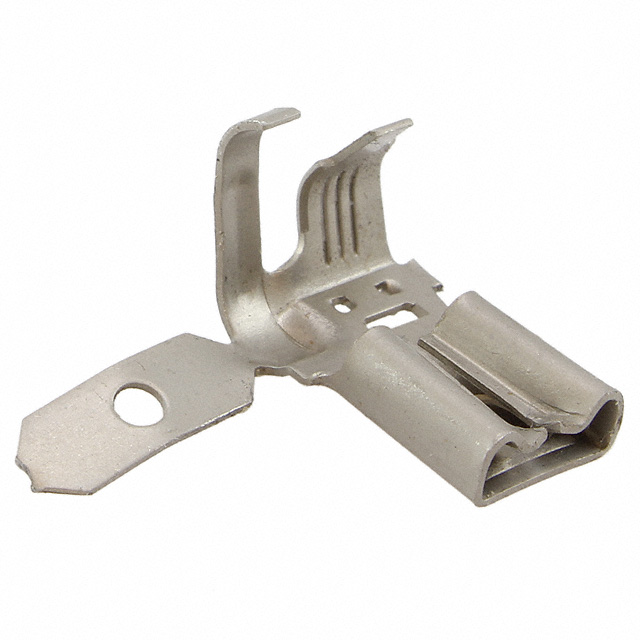

(1742543-1) FASTON FLAG REC 250 12-18AWG NPST
| Part | Insulation | Terminal Type | Tab Width | Tab Width | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Gender | Tab Thickness | Tab Thickness | Contact Finish | Tab Length | Tab Length | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Contact Material | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Non-Insulated | Angled - 90° Flag | 6.35 mm | 0.25 in | 0.21 in 5.33 mm | 0.11 " | 2.79 mm | Female | 0.032 in | 0.81 mm | Nickel | 7.75 mm | 0.305 in | Free Hanging (In-Line) Right Angle | 16 AWG | 18 AWG | Steel | Crimp |
