AFL12A Series

Catalog

AC FAN AXIAL BALL BEARING 100V TO 240V 110V TO 230V 103.6CFM 45DB 120 X 120 X 38MM

Part	Material - Blade	Lifetime @ Temp.	Material - Frame	Bearing Type	Voltage - Rated [Max]	Voltage - Rated [Min]	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Ingress Protection	Features	Static Pressure	Static Pressure	Width [y]	RPM	Power (Watts)	Air Flow	Air Flow	Termination	Noise

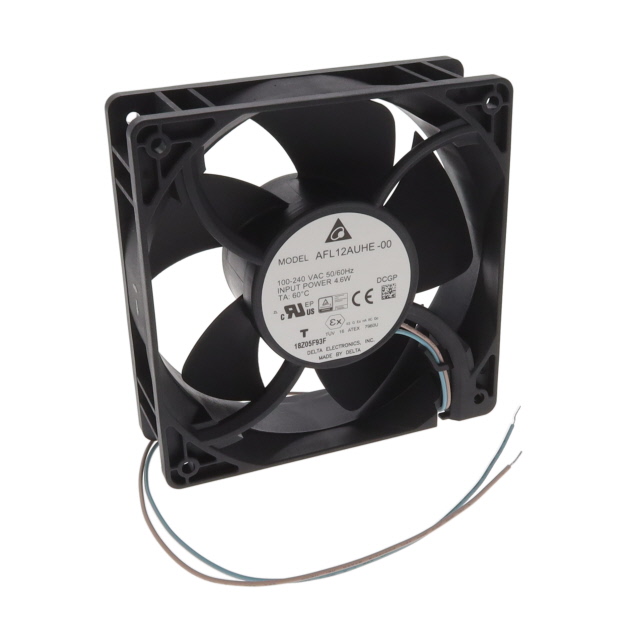

Delta Electronics AFL12AUHE-00	Plastic	70000 Hrs	Plastic	Ball	240 VAC	100 VAC	Tubeaxial	60 °C	60 °C	-4 °F	-20 ░C	120 mm	120 mm	IP52	Electronic Commutation (EC) Locked Rotor Protection	99.6 Pa	0.4 in H2O	38 mm	3200 RPM	4.6 W	2.9 m³/min	103.6 CFM	2 Wire Leads	45 dB(A)
