5682232 Series

Manufacturer: DIALIGHT

Catalog

LED CBI 3MM 4X2 GRN/RED RA

Part	Viewing Angle	Lens Style	Voltage Rating	Wavelength - Peak	Mounting Type	Millicandela Rating	Lens Type	Color	Lens Size [diameter]	Configuration [y]	Configuration [z]	Configuration	Lens Size	Lens Size	Current	Current
DIALIGHT 56822321112F	45 °	Round with Domed Top	2 V 2.1 V	565 nm 635 nm	Right Angle Through Hole	29 mcd 50 mcd	Tinted	Green (x 2) Red (x 6)	3 mm	2	4

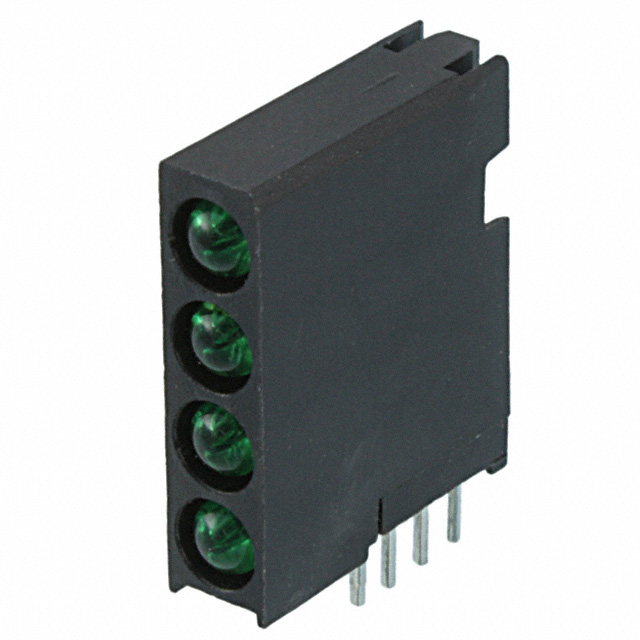

DIALIGHT 5682232222F	45 °	Round with Domed Top	2.1 V	565 nm	Right Angle Through Hole	50 mcd	Tinted	Green				4 High	3 mm	T-1	20 mA
DIALIGHT 5682232110F	45 °	Round with Domed Top	2 V 2.1 V	565 nm 635 nm	Right Angle Through Hole	29 mcd 50 mcd	Tinted	Blank (x 1) Green (x 1) Red (x 2)				4 High	3 mm	T-1		30mA Green 30mA Red

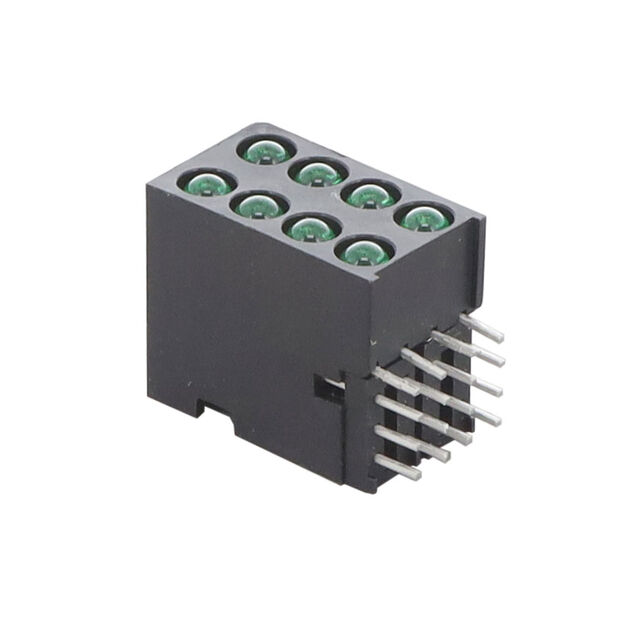

DIALIGHT 56822322222F	45 °	Round with Domed Top	2.1 V	565 nm	Right Angle Through Hole	50 mcd	Tinted	Green (x 8)	3 mm	2	4				20 mA
DIALIGHT 5682232806F	45 °	Round with Domed Top	2.1 V	565 nm	Right Angle Through Hole	50 mcd	Clear	Green				4 High	3 mm	T-1	30 mA
DIALIGHT 56822323234F	45 °	Round with Domed Top	2.1 V 2.1 V	565 nm 585 nm	Right Angle Through Hole	30 mcd 50 mcd	Tinted	Green (x 8) Yellow (x 8)		4	4		3 mm	T-1
DIALIGHT 56822322114F	45 °	Round with Domed Top	2 V 2.1 V	565 nm 635 nm	Right Angle Through Hole	29 mcd 50 mcd	Tinted	Green Red	3 mm	4	4
DIALIGHT 5682232323F	45 °	Round with Domed Top	2.1 V	565 nm 585 nm	Right Angle Through Hole	30 mcd 50 mcd	Tinted	Green (x 2) Yellow (x 2)				4 High	3 mm	T-1	20 mA
DIALIGHT 56822322224F	45 °	Round with Domed Top	2.1 V	565 nm	Right Angle Through Hole	50 mcd	Tinted	Green (x 16)		4	4		3 mm	T-1	20 mA
