EEE-TQV Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K

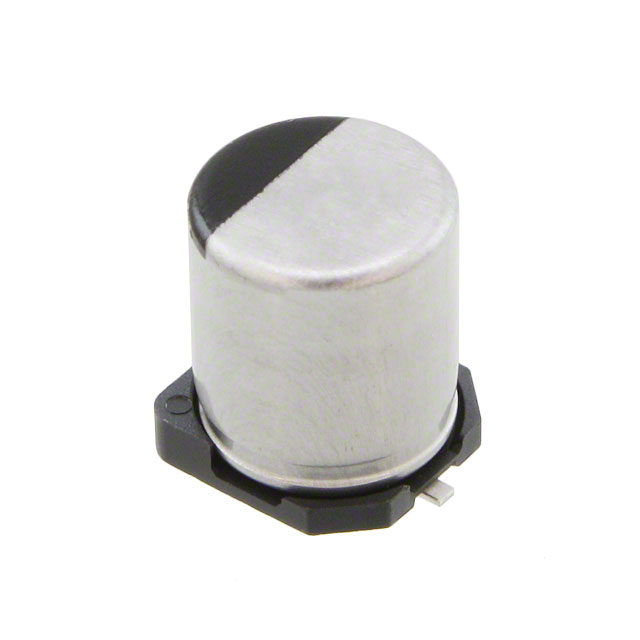

CAP ALUM 47UF 20% 35V SMD
| Part | Applications | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Ratings | Lifetime @ Temp. | Mounting Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Ripple Current @ Low Frequency | Polarization | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Capacitance | Voltage - Rated | Tolerance | ESR (Equivalent Series Resistance) | Ripple Current @ High Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | Automotive High Temperature Reflow | 8 mm | 0.315 in | Radial Can - SMD | 125 °C | -40 °C | AEC-Q200 | 2000 Hrs | Surface Mount | 0.248 in | 6.3 mm | 128.05 mA | Polar | 0.26 in | 6.6 mm | 6.6 mm | 0.26 in | 47 µF | 35 V | 20 % | 300 mOhm | 197 mA |
