1219C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

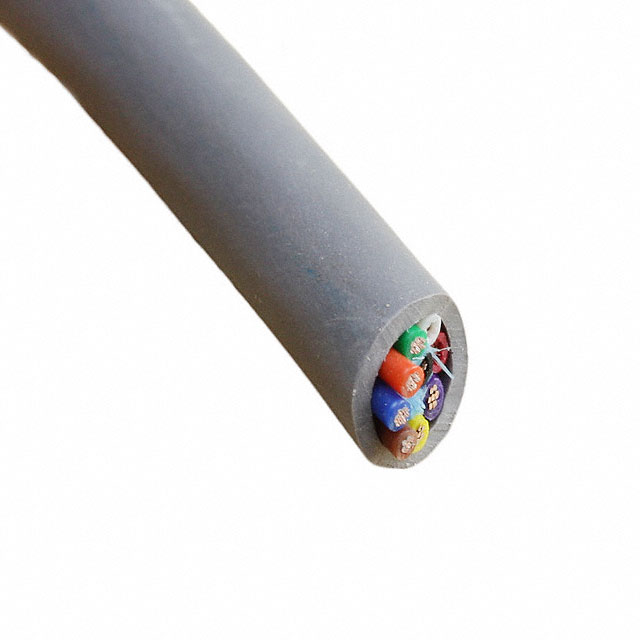

MULTI-CONDUCTOR CABLES 24 AWG, 9 CONDUCTOR COMMUNICATION CABLE, SHIELDED, BOX OF 1000 FT - SLATE
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Cable Type | Jacket Color | Shield Type | Conductor Material | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage | Features | Wire Gauge | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Slate | Foil | Copper Tinned | Communication Control | 7 | 32 AWG | 80 °C | -20 ░C | 300 VDC | Drain Wire | 24 AWG | Poly-Vinyl Chloride (PVC) | 5.79 mm | 0.228 in | 304.8 m | 1000 ft | 0.813 mm | 0.032 in | 9 | ||
ALPHA WIRE | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Slate | Foil | Copper Tinned | Communication Control | 7 | 32 AWG | 80 °C | -20 ░C | 300 VDC | Drain Wire | 24 AWG | Poly-Vinyl Chloride (PVC) | 5.79 mm | 0.228 in | 0.813 mm | 0.032 in | 9 | 100 ft | 30.5 m | ||
ALPHA WIRE | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Slate | Foil | Copper Tinned | Communication Control | 7 | 32 AWG | 80 °C | -20 ░C | 300 VDC | Drain Wire | 24 AWG | Poly-Vinyl Chloride (PVC) | 5.79 mm | 0.228 in | 152.4 m | 500 ft | 0.813 mm | 0.032 in | 9 |
