MDBRE15 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K
CONN D-SUB HD RCPT 15POS PNL MNT
| Part | Dielectric Material | Color | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Mounting Type | Contact Type | Number of Positions | Material Flammability Rating | Connector Style | Ingress Protection | Current Rating (Amps) | Connector Type | Flange Feature | Features | Number of Rows [custom] | Shell Material, Finish | Termination | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

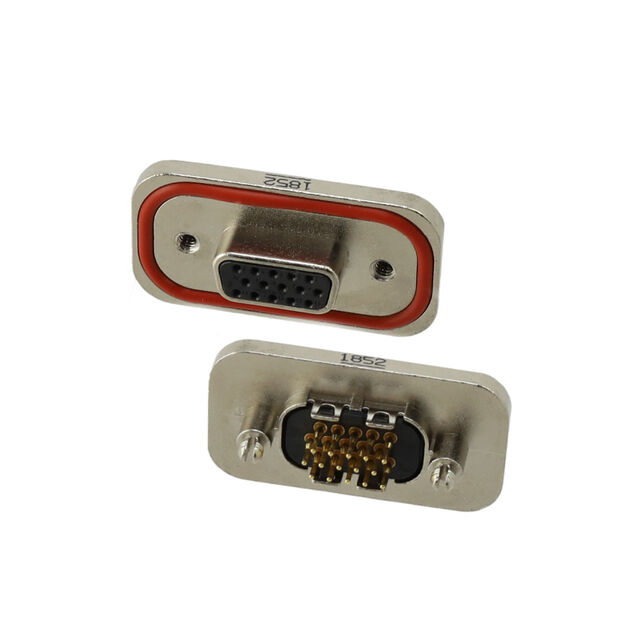

 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Black | 200 V | -40 C | 105 ░C | Copper Alloy | (DE E) High Density | 1 | 50 µin | 1.27 µm | Gold | Panel Mount Through Hole | Signal | 15 | UL94 V-0 | D-Sub High Density | IP68 - Dust Tight Waterproof | 3 A | Receptacle Female Sockets | Housing/Shell (M3) | Board Lock | 3 | Nickel Plated Zinc | Solder | |
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Black | 200 V | -40 C | 105 ░C | Copper Alloy | (DE E) High Density | 1 | 30 Áin | 0.76 Ám | Gold | Panel Mount | Signal | 15 | UL94 V-0 | D-Sub High Density | IP68 - Dust Tight Waterproof | 3 A | Receptacle Female Sockets | Housing/Shell | Board Lock | 3 | Nickel Plated Zinc | 4-40 | |
Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Black | 200 V | -40 C | 105 ░C | Copper Alloy | (DE E) High Density | 1 | 30 Áin | 0.76 Ám | Gold | Panel Mount | Signal | 15 | UL94 V-0 | D-Sub High Density | IP68 - Dust Tight Waterproof | 3 A | Receptacle Female Sockets | Housing/Shell (M3) | Board Lock | 3 | Nickel Plated Zinc | ||

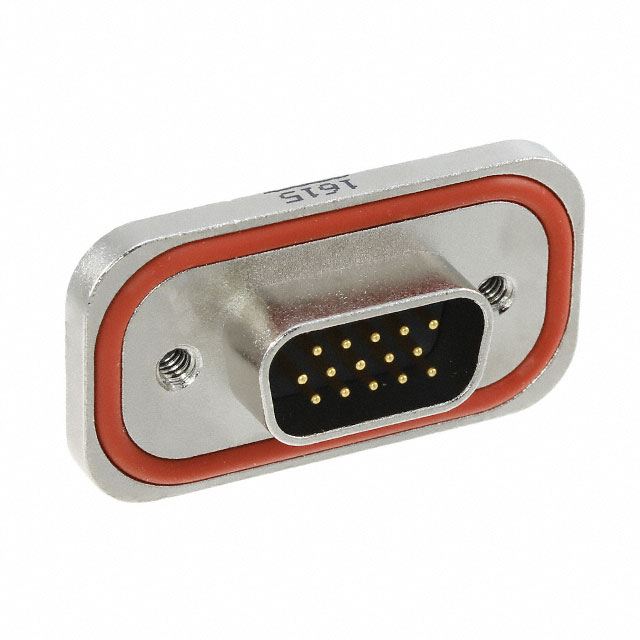

 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Black | 200 V | -40 C | 105 ░C | Copper Alloy | (DE E) High Density | 1 | 50 µin | 1.27 µm | Gold | Panel Mount Through Hole | Signal | 15 | UL94 V-0 | D-Sub High Density | IP68 - Dust Tight Waterproof | 3 A | Plug Male Pins | Housing/Shell | Board Lock | 3 | Nickel Plated Zinc | Solder | 4-40 |
Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Black | 200 V | -40 C | 105 ░C | Copper Alloy | (DE E) High Density | 1 | 30 Áin | 0.76 Ám | Gold | Panel Mount | Signal | 15 | UL94 V-0 | D-Sub High Density | IP68 - Dust Tight Waterproof | 3 A | Plug Male Pins | Housing/Shell | Board Lock | 3 | Nickel Plated Zinc | 4-40 |
