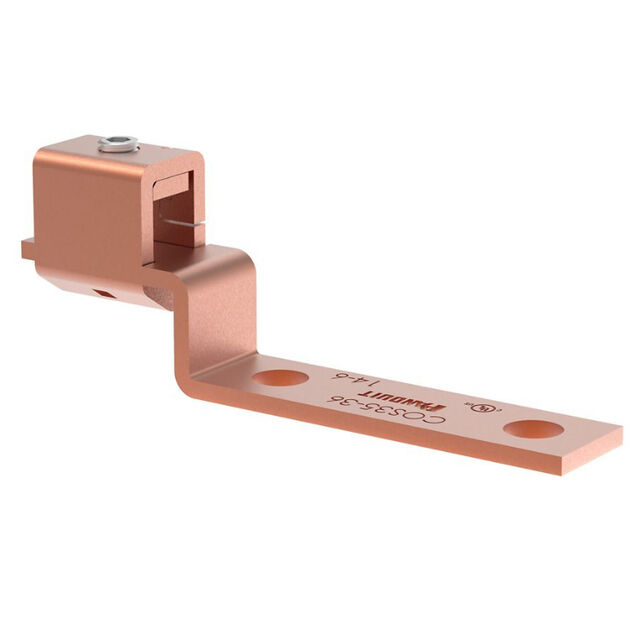

CDS35 Series
Manufacturer: Panduit Corp
Beta
⌘K
LABEL
| Part | Contact Material | Stud/Tab Size | Wire Gauge [Max] | Wire Gauge [Min] | Insulation | Terminal Style | Width - Outer Edges [x] | Width - Outer Edges [x] | Termination | Mounting Type | Terminal Type | Length - Overall [x] | Length - Overall [x] | Tab Thickness [custom] | Tab Thickness [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Copper | 3/16 | 14 AWG | 6 AWG | Non-Insulated | Two Stud Holes | 40.64 mm | 1.6 in | Barrel Crimp | Free Hanging (In-Line) | Lug Grounding | 55.12 mm | 2.17 in | 0.06 in | 1.52 mm |
