FJ9SCSC Series

Manufacturer: UNC Group

Catalog

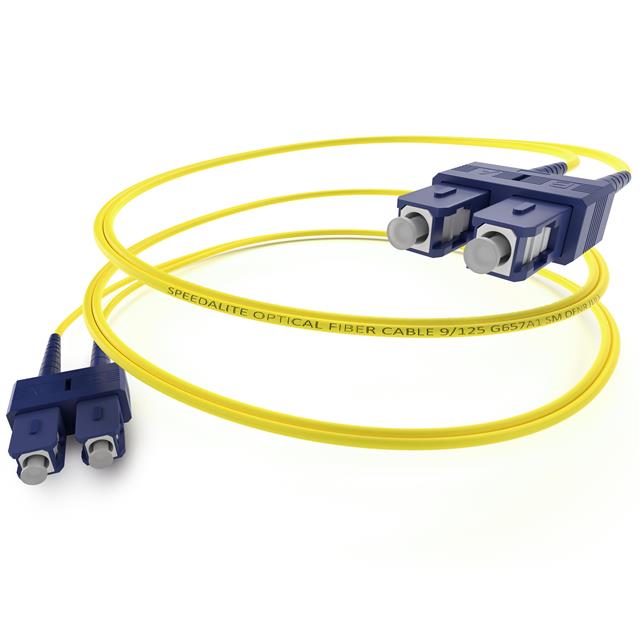

SINGLEMODE SC TO SC FIBER 4M

Part	Type	Cable Type	Fiber Type	Operating Temperature [Min]	Operating Temperature [Max]	Bend Radius [radius]	1st Connector	2nd Connector	Return Loss	Features	Jacket (Insulation) Material	Cable Diameter [diameter]	Cable Diameter [diameter]	Insertion Loss	Length - Overall [x]	Length - Overall [x]	Color - Cable	Color - Connectors	Ratings	Length - Overall
UNC Group FJ9SCSC-04M	Duplex OS2 Singlemode	Twin Zip Bend Insensitive Fiber (BIF)	9/125	-20 C	60 °C	10 mm	SC Duplex	SC Duplex	55 dB	Dust Cap Riser Zipcord	Poly-Vinyl Chloride (PVC)	2 mm	0.08 in	0.2 dB	13.1 '	4 m	Yellow	Blue	OFNR
UNC Group FJ9SCSC-08M	Duplex OS2 Singlemode	Twin Zip Bend Insensitive Fiber (BIF)	9/125	-20 C	60 °C	10 mm	SC Duplex	SC Duplex	55 dB	Dust Cap Riser Zipcord	Poly-Vinyl Chloride (PVC)	2 mm	0.08 in	0.2 dB	26.2 ft	8 m	Yellow	Blue	OFNR
UNC Group FJ9SCSC-09M	Duplex OS2 Singlemode	Twin Zip Bend Insensitive Fiber (BIF)	9/125	-20 C	60 °C	10 mm	SC Duplex	SC Duplex	55 dB	Dust Cap Riser Zipcord	Poly-Vinyl Chloride (PVC)	2 mm	0.08 in	0.2 dB	29.5 '	9 m	Yellow	Blue	OFNR
UNC Group FJ9SCSC-20M	Duplex OS2 Singlemode	Twin Zip Bend Insensitive Fiber (BIF)	9/125	-20 C	60 °C	10 mm	SC Duplex	SC Duplex	55 dB	Dust Cap Riser Zipcord	Poly-Vinyl Chloride (PVC)	2 mm	0.08 in	0.2 dB	65.6 ft	20 m	Yellow	Blue	OFNR
UNC Group FJ9SCSC-30M	Duplex OS2 Singlemode	Twin Zip Bend Insensitive Fiber (BIF)	9/125	-20 C	60 °C	10 mm	SC Duplex	SC Duplex	55 dB	Dust Cap Riser Zipcord	Poly-Vinyl Chloride (PVC)	2 mm	0.08 in	0.2 dB	98.4 ft		Yellow	Blue	OFNR	30 m
UNC Group FJ9SCSC-06M	Duplex OS2 Singlemode	Twin Zip Bend Insensitive Fiber (BIF)	9/125	-20 C	60 °C	10 mm	SC Duplex	SC Duplex	55 dB	Dust Cap Riser Zipcord	Poly-Vinyl Chloride (PVC)	2 mm	0.08 in	0.2 dB	19.7 ft	6 m	Yellow	Blue	OFNR
