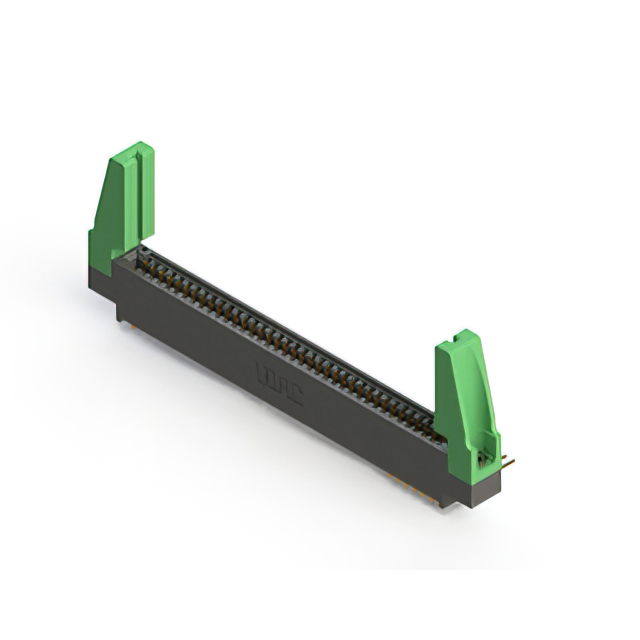

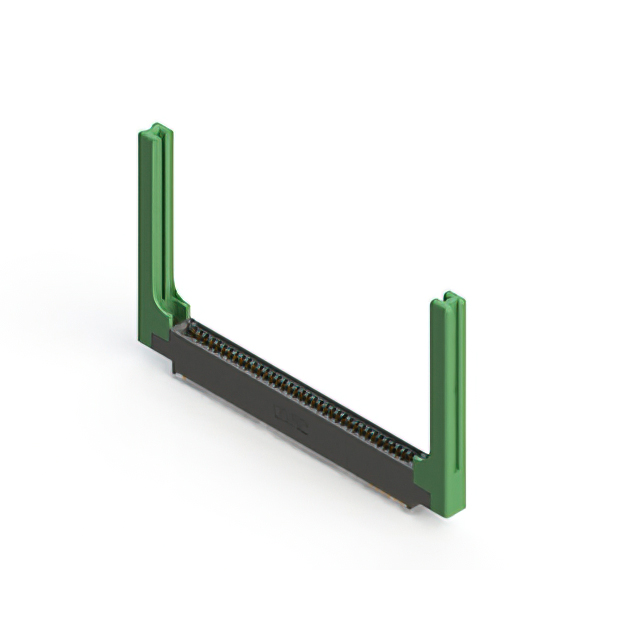

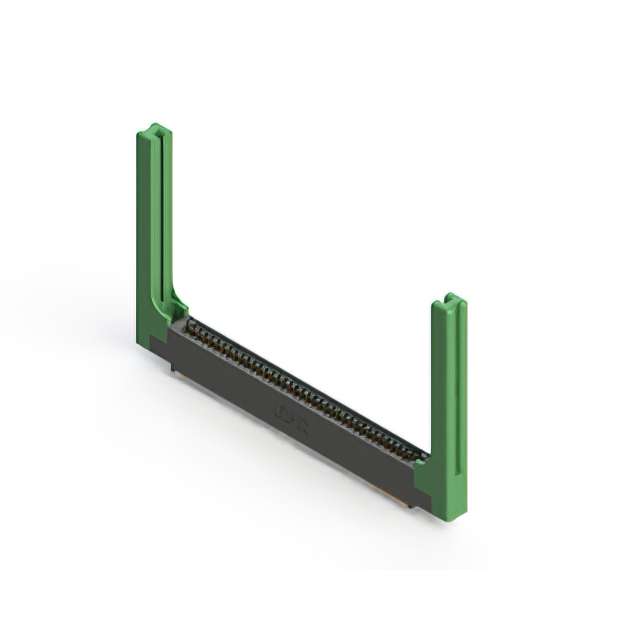

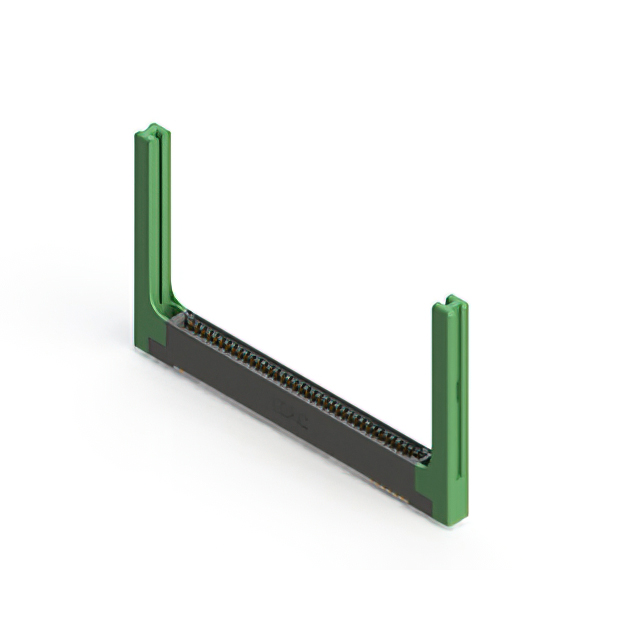

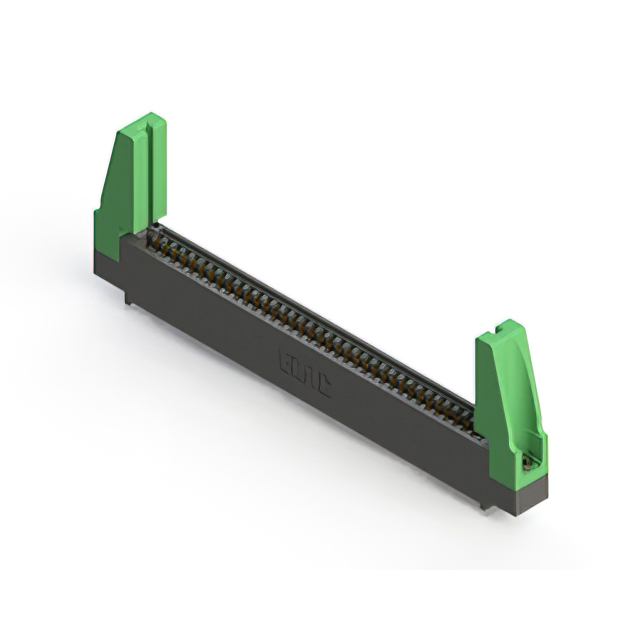

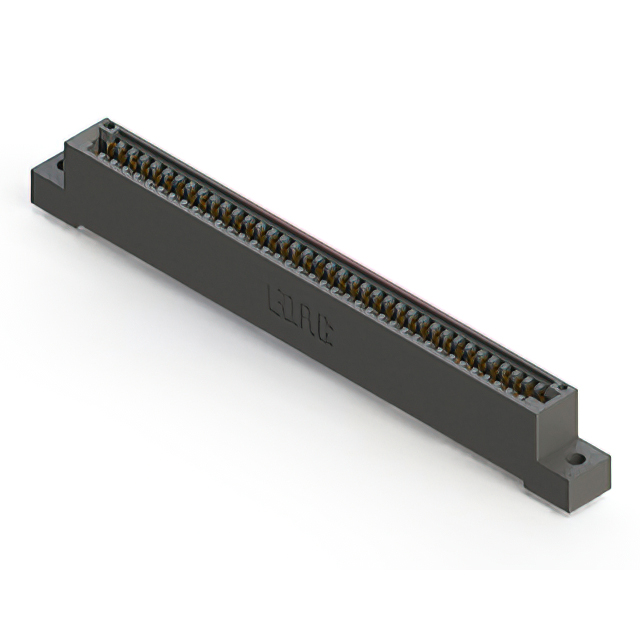

395-076 Series
Manufacturer: EDAC Inc.
Beta
⌘K
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
| Part | Material - Insulation | Termination Rows [custom] | Card Thickness [Max] | Card Thickness [Min] | Termination | Contact Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Contact Material | Contact Finish | Number of Positions/Bay/Row [custom] | Number of Rows [custom] | Color | Card Type | Contact Finish Thickness | Contact Finish Thickness | Features | Mounting Type | Pitch | Pitch | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | Cantilever | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Dual | -40 C | 105 ░C | Female | Copper Alloy | Gold | 38 | 2 | Black | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Card Extender | Board Edge Straddle Mount | 0.1 " | 2.54 mm | 76 |
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Dual | -40 C | 105 ░C | Female | Copper Alloy | Gold | 38 | 2 | Black | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Card Guides | Right Angle Through Hole | 0.1 " | 2.54 mm | 76 | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Cantilever | 4-40 Threaded Insert Top Mount Opening | Dual | -40 C | 105 ░C | Female | Copper Alloy | Gold | 38 | 2 | Black | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Card Extender Card Guides | Board Edge Straddle Mount | 0.1 " | 2.54 mm | 76 | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Cantilever | M3 Threaded Insert Top Mount Opening | Dual | -40 C | 105 ░C | Female | Copper Alloy | Gold | 38 | 2 | Black | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Card Extender | Board Edge Straddle Mount | 0.1 " | 2.54 mm | 76 | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Cantilever | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " | Dual | -40 C | 105 ░C | Female | Copper Alloy | Gold | 38 | 2 | Black | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Through Hole | 0.1 " | 2.54 mm | 76 | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Cantilever | 4-40 Threaded Insert Top Mount Opening | Dual | -40 C | 105 ░C | Female | Copper Alloy | Gold | 38 | 2 | Black | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Right Angle Through Hole | 0.1 " | 2.54 mm | 76 | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Cantilever | 4-40 Threaded Insert Top Mount Opening | Dual | -40 C | 105 ░C | Female | Copper Alloy | Gold | 38 | 2 | Black | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Through Hole | 0.1 " | 2.54 mm | 76 | |||
EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Cantilever | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " | Dual | -40 C | 105 ░C | Female | Copper Alloy | Gold | 38 | 2 | Black | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Through Hole | 0.1 " | 2.54 mm | 76 | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Cantilever | 4-40 Threaded Insert Top Mount Opening | Dual | -40 C | 105 ░C | Female | Copper Alloy | Gold | 38 | 2 | Black | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Card Guides | Right Angle Through Hole | 0.1 " | 2.54 mm | 76 | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Cantilever | 4-40 Threaded Insert Top Mount Opening | Dual | -40 C | 105 ░C | Female | Copper Alloy | Gold | 38 | 2 | Black | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Card Guides | Right Angle Through Hole | 0.1 " | 2.54 mm | 76 |
