A3CCB Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

IDC CABLE- AKC26B/AE26M/AKC26B

Part	Number of Positions	Connector Type	Shielding	Cable Termination	Color	Length	Length	Length	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Contact Finish	Length [x]	Length [x]
TE Connectivity AMP Connectors A3CCB-2606M	26	Socket to Socket	Unshielded	IDC	Multiple Ribbon	152.4 mm	0.5 '	6 "	0.05 in	1.27 mm	0.1 in	2.54 mm	Polarizing Key	30 Áin	0.76 Ám	2	Gold
TE Connectivity AMP Connectors A3CCB-2406G	24	Socket to Socket	Unshielded	IDC		152.4 mm	0.5 '	6 "	0.05 in	1.27 mm	0.1 in	2.54 mm	Polarizing Key	30 Áin	0.76 Ám	2	Gold

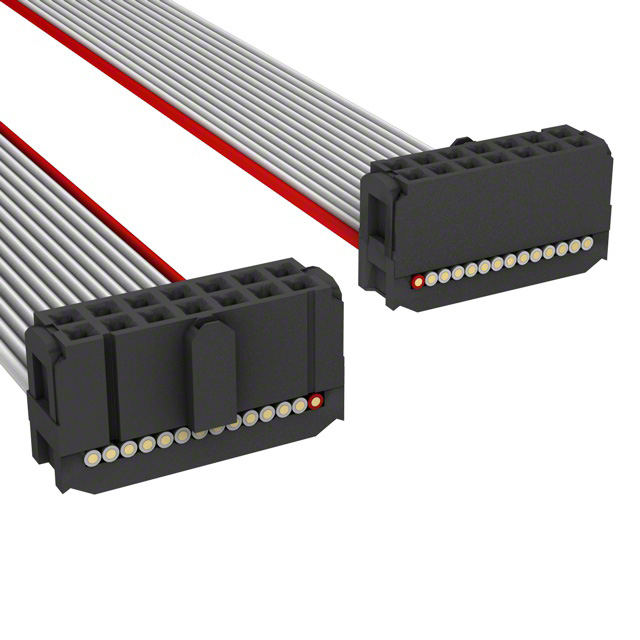

TE Connectivity AMP Connectors A3CCB-1418G	14	Socket to Socket	Unshielded	IDC					0.05 in	1.27 mm	0.1 in	2.54 mm	Polarizing Key	30 Áin	0.76 Ám	2	Gold	457.2 mm	1.5 ft
TE Connectivity AMP Connectors A3CCB-2036G	20	Socket to Socket	Unshielded	IDC		91.44 cm	3 ft		0.05 in	1.27 mm	0.1 in	2.54 mm	Polarizing Key	30 Áin	0.76 Ám	2	Gold

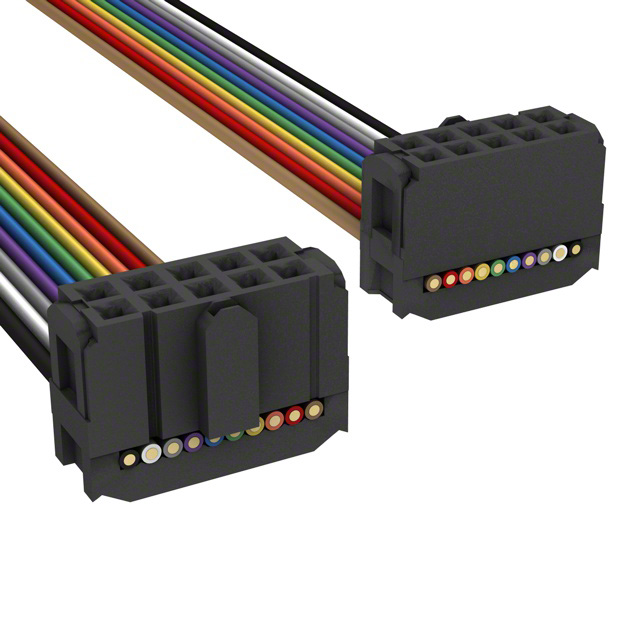

TE Connectivity AMP Connectors A3CCB-1036M	10	Socket to Socket	Unshielded	IDC	Multiple Ribbon	91.44 cm	3 ft		0.05 in	1.27 mm	0.1 in	2.54 mm	Polarizing Key	30 Áin	0.76 Ám	2	Gold
TE Connectivity AMP Connectors A3CCB-6418G	64	Socket to Socket	Unshielded	IDC					0.05 in	1.27 mm	0.1 in	2.54 mm	Polarizing Key	30 Áin	0.76 Ám	2	Gold	457.2 mm	1.5 ft
TE Connectivity AMP Connectors A3CCB-1018G	10	Socket to Socket	Unshielded	IDC					0.05 in	1.27 mm	0.1 in	2.54 mm	Polarizing Key	30 Áin	0.76 Ám	2	Gold	457.2 mm	1.5 ft
TE Connectivity AMP Connectors A3CCB-5018M	50	Socket to Socket	Unshielded	IDC	Multiple Ribbon				0.05 in	1.27 mm	0.1 in	2.54 mm	Polarizing Key	30 Áin	0.76 Ám	2	Gold	457.2 mm	1.5 ft

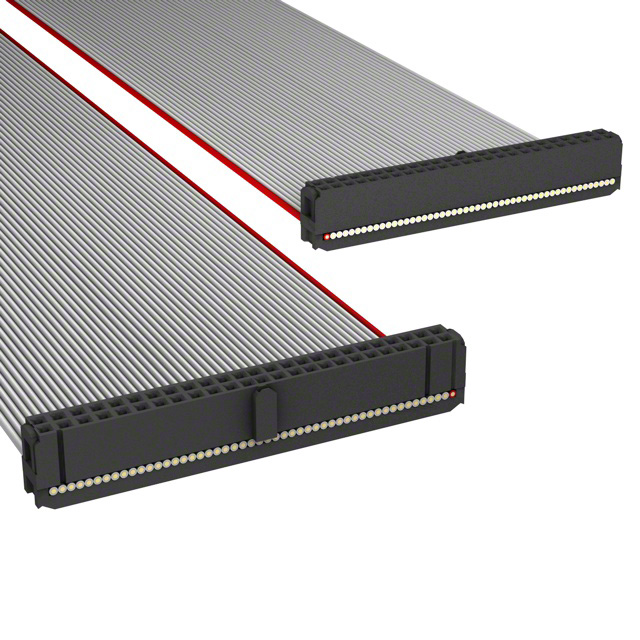

TE Connectivity AMP Connectors A3CCB-5018G	50	Socket to Socket	Unshielded	IDC					0.05 in	1.27 mm	0.1 in	2.54 mm	Polarizing Key	30 Áin	0.76 Ám	2	Gold	457.2 mm	1.5 ft
TE Connectivity AMP Connectors A3CCB-2406M	24	Socket to Socket	Unshielded	IDC	Multiple Ribbon	152.4 mm	0.5 '	6 "	0.05 in	1.27 mm	0.1 in	2.54 mm	Polarizing Key	30 Áin	0.76 Ám	2	Gold
