45362 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

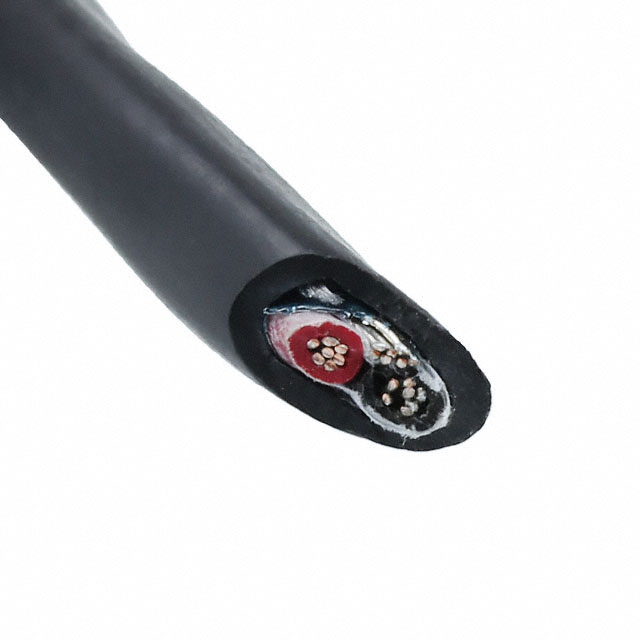

CABLE 2COND 16AWG BLK SHLD FEET
| Part | Conductor Insulation | Shield Type | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Length | Features | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Shield Coverage | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Shield Material | Voltage | Spool Size | Spool Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Thermoplastic Elastomer (TPE) | Foil | 2 | 1.143 mm | 0.045 in | Black | Enter Number of Feet in Order Quantity | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | 0.28 in | 7.11 mm | 16 AWG | ISO 10993 | -50 °C | 125 °C | 100 % | Thermoplastic Elastomer (TPE) | 19 | 0.0117 in | Multi-Conductor | Aluminum | 300 V | 1000 ft | 304.8 m |
