225398 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

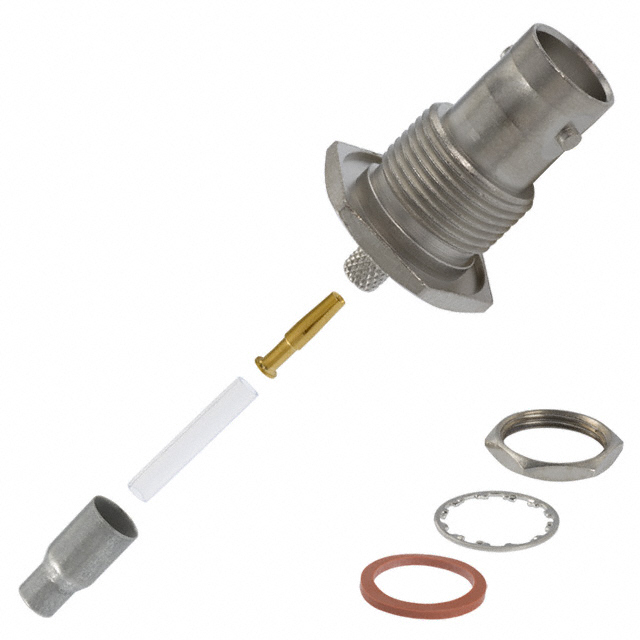

CONN BNC JACK STR 50 OHM CRIMP
| Part | Fastening Type | Body Finish | Body Material | Frequency - Max [Max] | Center Contact Plating | Mounting Feature | Housing Color | Voltage Rating | Center Contact Material | Impedance | Dielectric Material | Shield Termination | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Mating Cycles | Includes | Connector Style | Contact Termination | Insertion Loss | Number of Ports | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Bayonet Lock | Nickel | Brass | 4 GHz | Gold | Bulkhead - Front Side Nut | Silver | 500 V | Beryllium Copper | 50 Ohms | Polytetrafluoroethylene (PTFE) | Crimp | 85 °C | -55 °C | Female Socket Jack | 500 | 1 Connector 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut | BNC | Crimp | 0.2 dB | 1 | 58A 58B 58C RG-58 |
 TE Connectivity Raychem Cable Protection | Bayonet Lock | Nickel | Brass | 4 GHz | Gold | Bulkhead - Front Side Nut | Silver | 500 V | Beryllium Copper | 50 Ohms | Polytetrafluoroethylene (PTFE) | Crimp | 85 °C | -55 °C | Female Socket Jack | 500 | 1 Connector 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut | BNC | Crimp | 0.2 dB | 1 | 188 RG-174 |
 TE Connectivity Raychem Cable Protection | Bayonet Lock | Nickel | Brass | 4 GHz | Gold | Bulkhead - Front Side Nut | Silver | 500 V | Beryllium Copper | 50 Ohms | Polytetrafluoroethylene (PTFE) | Crimp | 85 °C | -55 °C | Female Socket Jack | 500 | 1 Connector 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut | BNC | Crimp | 0.2 dB | 1 | RD-316 Double Braid |
