ZW Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

BASIC / SNAP ACTION SWITCHES SPDT, 5A 125/250VAC IP67,CBL SIDE EXIT

Part	Termination Style	Ingress Protection	Overtravel [custom]	Overtravel [custom]	Voltage Rating - AC	Operating Force	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Differential Travel	Differential Travel	Operating Position	Operating Position	Circuit	Actuator Type	Electrical Life	Mechanical Life	Current Rating (Amps)	Switch Function	Release Force	Pretravel	Pretravel

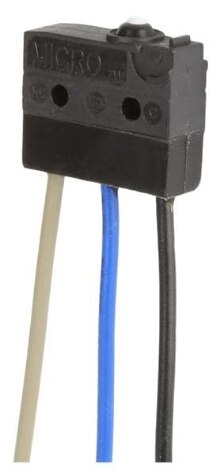

Honeywell Sensing and Productivity Solutions ZW50F91AW1-Z	Wire Leads	IP67 - Dust Tight Waterproof	0.025 in	0.6 mm	125 V	203 gf	Chassis Mount	-40 C	105 ░C	0.2 mm	0.008 in	0.33 in	8.4 mm	SPDT	Round (Pin Plunger)	10000 Cycles	1000000 Cycles	5 A	On-Mom	50 gf	1.2 mm	0.047 in

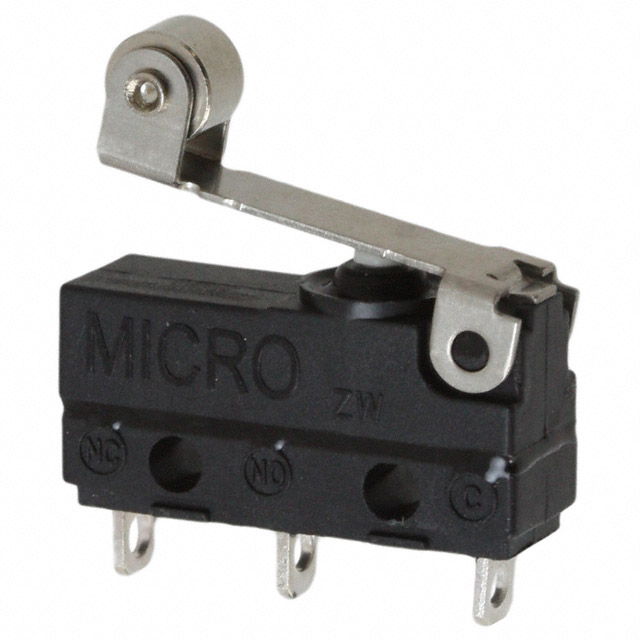

Honeywell Sensing and Productivity Solutions ZW50F15FD1-Z	Solder Lug	IP00	0.035 "	0.9 mm	125 V	72 gf	Chassis Mount	-40 C	120 °C	0.6 mm	0.025 in	0.571 in	14.5 mm	SPDT	Lever Roller	10000 Cycles	2000000 Cycles	5 A	On-Mom	15 gf	4.3 mm	0.17 in
Honeywell Sensing and Productivity Solutions ZW50F92SW1-A	Wire Leads	IP67 - Dust Tight Waterproof			125 V		Chassis Mount	-40 C	120 °C					SPDT			1000000 Cycles	6 A	On-Mom
Honeywell Sensing and Productivity Solutions ZW50F15CD1-Z	Solder Lug	IP00	0.039 "	1 mm	125 V	66 gf	Chassis Mount	-40 C	120 °C	0.7 mm	0.028 in	0.345 in	8.8 mm	SPDT	Lever Straight	10000 Cycles	1000000 Cycles	5 A	On-Mom	13 gf	4.8 mm	0.188 in
Honeywell Sensing and Productivity Solutions ZW10E90AW3-001	Wire Leads	IP67 - Dust Tight Waterproof			125 V	150 gf	Chassis Mount	-40 C	120 °C					SPST-NO	Round (Pin Plunger)		1000000 Cycles	100 mA	Off-Mom
Honeywell Sensing and Productivity Solutions ZW50F90HW3	Wire Leads	IP67 - Dust Tight Waterproof			125 V		Chassis Mount	-40 C	120 °C						Lever Simulated Roller		1000000 Cycles	6 A	Off-Mom
Honeywell Sensing and Productivity Solutions ZW50F99AW1-E	Wire Leads	IP67 - Dust Tight Waterproof	0.025 in	0.6 mm	125 V	203 gf	Chassis Mount	-40 C	105 ░C	0.2 mm	0.008 in	0.33 in	8.4 mm	SPDT	Round (Pin Plunger)	10000 Cycles	2000000 Cycles	5 A	On-Mom	50 gf	1.2 mm	0.047 in
Honeywell Sensing and Productivity Solutions ZW10E99AW3A-F-ZC1		IP67 - Dust Tight Waterproof			125 V	150 gf		-40 C	120 °C					SPST-NO	Round (Pin Plunger)		1000000 Cycles	100 mA	Off-Mom
