TPS65150-Q1 Series

Automotive, compact LCD bias Power Supply with integrated VCOM Buffer

Catalog

Automotive, compact LCD bias Power Supply with integrated VCOM Buffer

Part	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Supplied Contents	Frequency - Switching	Board Type	Regulator Topology	Voltage - Output	Utilized IC / Part	Outputs and Type	Outputs and Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Applications	Mounting Type	Supplier Device Package	Current - Supply	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Grade	Qualification

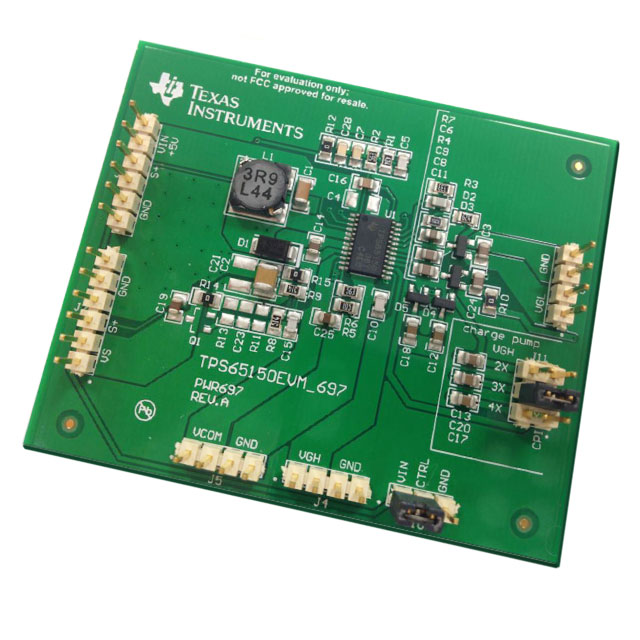

Texas Instruments TPS65150EVM-697	Special Purpose DC/DC LCD Supply	1.8 V	6 V	Board(s)	1.2 MHz	Fully Populated	Boost	-2 V 15 VDC 30 VDC	TPS65150	Non-Isolated	3
Texas Instruments TPS65150PWPR												1.8 V	6 V	LCD Monitor Notebook Display	Surface Mount	24-HTSSOP	1.9 mA	0.173 in 4.4 mm	24-PowerTSSOP	85 °C	-40 °C
Texas Instruments TPS65150QPWPRQ1												1.8 V	6 V	LCD Monitor Notebook Display	Surface Mount	24-HTSSOP	1.9 mA	0.173 in 4.4 mm	24-PowerTSSOP	125 °C	-40 °C	Automotive	AEC-Q100
Texas Instruments TPS65150PWP												1.8 V	6 V	LCD Monitor Notebook Display	Surface Mount	24-HTSSOP	1.9 mA	0.173 in 4.4 mm	24-PowerTSSOP	85 °C	-40 °C
Texas Instruments TPS65150PWPG4												1.8 V	6 V	LCD Monitor Notebook Display	Surface Mount	24-HTSSOP	1.9 mA	0.173 in 4.4 mm	24-PowerTSSOP	85 °C	-40 °C

Catalog

Automotive, compact LCD bias Power Supply with integrated VCOM Buffer

Key Features

• AEC-Q100 Qualified:Device Temperature Grade 1: –40°C to 125°C Junction TemperatureDevice HBM ESD Classification According to AEC - Q100-002Device CDM ESD Classification According to AEC - Q100-011Input Voltage Range: 1.8 V to 6 VV(VS)Boost ConverterUp to 15 V Output Voltage< 1% Output Voltage Accuracy2-A Switch Current LimitV(VGH)Positive Regulated Charge Pump DriverUp to 30 V Output VoltageGate Voltage ShapingV(VGL)Negative Regulated Charge Pump DriverDown to –15 V Output VoltageIntegrated VCOM BufferAdjustable Power On SequencingGate Drive Signal for External Isolation MOSFET for V(VS)Protection FeaturesOut-of-Regulation ProtectionOver-voltage ProtectionAdjustable Fault Detection TimingThermal Shutdown24-Pin TSSOP Package with Exposed Thermal PadAEC-Q100 Qualified:Device Temperature Grade 1: –40°C to 125°C Junction TemperatureDevice HBM ESD Classification According to AEC - Q100-002Device CDM ESD Classification According to AEC - Q100-011Input Voltage Range: 1.8 V to 6 VV(VS)Boost ConverterUp to 15 V Output Voltage< 1% Output Voltage Accuracy2-A Switch Current LimitV(VGH)Positive Regulated Charge Pump DriverUp to 30 V Output VoltageGate Voltage ShapingV(VGL)Negative Regulated Charge Pump DriverDown to –15 V Output VoltageIntegrated VCOM BufferAdjustable Power On SequencingGate Drive Signal for External Isolation MOSFET for V(VS)Protection FeaturesOut-of-Regulation ProtectionOver-voltage ProtectionAdjustable Fault Detection TimingThermal Shutdown24-Pin TSSOP Package with Exposed Thermal Pad

Description

The TPS65150-Q1 is an integrated power-supply for automotive LCD applications. The device integrates a boost converter for the source voltage and two regulated adjustable charge pump drivers for the gate voltages. For reduced external cost, improved picture quality and reduced image sticking, the device includes a VCOM buffer and a gate-voltage shaping function. The device is designed to operate from a supply voltage of 1.8 V to 6 V making it ideal for automotive LCD applications using a fixed 3.3 V or 5 V input-voltage rail. Adjustable power-on sequencing for VGL and VGH allow the device to be optimized for a variety of displays. For protection from system malfunction, the TPS65150-Q1 integrates an adjustable shutdown latch feature. The device monitors the outputs (V(VS), V(VGL), V(VGH)); and, as soon as one of the outputs falls below its power-good threshold for longer than the adjustable fault delay time, the device enters shutdown. The TPS65150-Q1 is an integrated power-supply for automotive LCD applications. The device integrates a boost converter for the source voltage and two regulated adjustable charge pump drivers for the gate voltages. For reduced external cost, improved picture quality and reduced image sticking, the device includes a VCOM buffer and a gate-voltage shaping function. The device is designed to operate from a supply voltage of 1.8 V to 6 V making it ideal for automotive LCD applications using a fixed 3.3 V or 5 V input-voltage rail. Adjustable power-on sequencing for VGL and VGH allow the device to be optimized for a variety of displays. For protection from system malfunction, the TPS65150-Q1 integrates an adjustable shutdown latch feature. The device monitors the outputs (V(VS), V(VGL), V(VGH)); and, as soon as one of the outputs falls below its power-good threshold for longer than the adjustable fault delay time, the device enters shutdown.
