SNDHS50 Series

Catalog

DC/DC CONVERTER 24V 50W

Part	Current - Output (Max) [Max]	Applications	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Type	Voltage - Output 1	Voltage - Input (Max) [Max]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Approval Agency	Number of Outputs	Efficiency
Cosel USA, Inc. SNDHS50B24	2.1 A	ITE (Commercial)	200 V	2.42 in 61.5 mm	1.75 in 44.5 mm	127 mm	Open Frame	24 V	400 VDC	50 W	-20 °C	95 °C	Chassis Mount	CE cURus	1

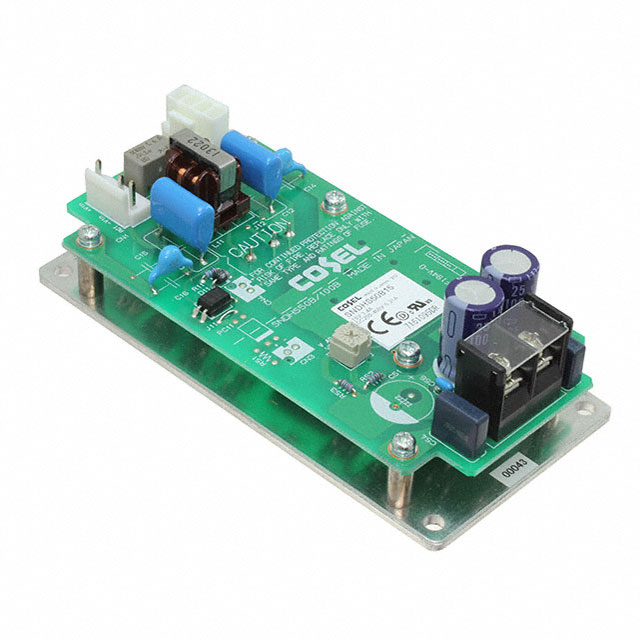

Cosel USA, Inc. SNDHS50B05	10 A	ITE (Commercial)	200 V	2.42 in 61.5 mm	1.75 in 44.5 mm	127 mm	Open Frame	5 V	400 VDC	50 W	-20 °C	95 °C	Chassis Mount	CE cURus	1	79 %

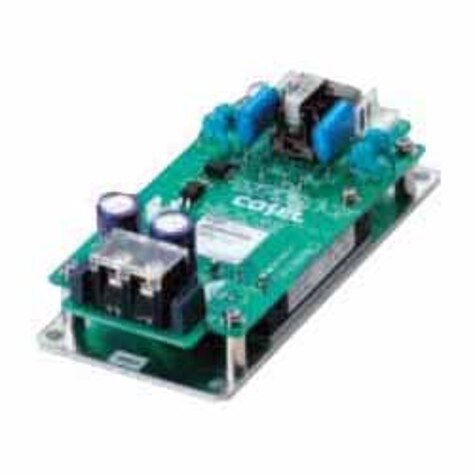

Cosel USA, Inc. SNDHS50B15	3.4 A	ITE (Commercial)	200 V	2.42 in 61.5 mm	1.75 in 44.5 mm	127 mm	Open Frame	15 V	400 VDC	51 W	-20 °C	95 °C	Chassis Mount	CE cURus	1
Cosel USA, Inc. SNDHS50B28	1.8 A	ITE (Commercial)	200 V	2.42 in 61.5 mm	1.75 in 44.5 mm	127 mm	Open Frame	28 V	400 VDC	50 W	-20 °C	95 °C	Chassis Mount	CE cURus	1
Cosel USA, Inc. SNDHS50B12	4.2 A	ITE (Commercial)	200 V	2.42 in 61.5 mm	1.75 in 44.5 mm	127 mm	Open Frame	12 V	400 VDC	50 W	-20 °C	95 °C	Chassis Mount	CE cURus	1
Cosel USA, Inc. SNDHS50B03	10 A	ITE (Commercial)	200 V	2.42 in 61.5 mm	1.75 in 44.5 mm	127 mm	Open Frame	3.3 V	400 VDC	33 W	-20 °C	95 °C	Chassis Mount	CE cURus	1	76 %
