MAX77654 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
ULTRA-LOW POWER PMIC FEATURING SINGLE-INDUCTOR, 3-OUTPUT BUCK-BOOST, 2-LDOS, POWER-PATH CHARGER FOR SMALL LI+, AND SHIP MODE
| Part | Applications | Mounting Type | Current - Supply | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] | Package / Case | Supplier Device Package | Supplied Contents | Contents | Utilized IC / Part | Function | Type | Secondary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

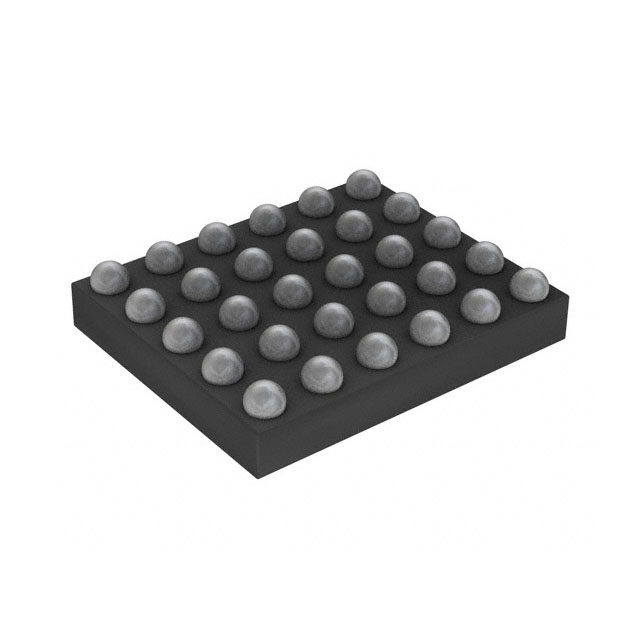

 Analog Devices Inc./Maxim Integrated | Battery Management | Surface Mount | 30 mA | 85 °C | -40 C | 5.5 V | 2.7 V | 30-XFBGA WLBGA | 30-WLP (2.79x2.34) | ||||||
 Analog Devices Inc./Maxim Integrated | General Purpose | Surface Mount | 28 µA | 85 C | -40 ¯C | 5.5 V | 2.7 V | 30-XFBGA WLBGA | 30-WLP (2.79x2.34) | ||||||

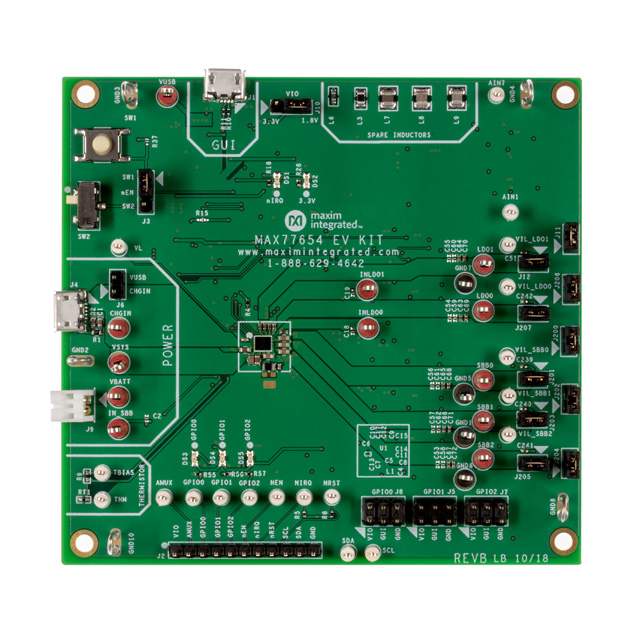

 Analog Devices Inc./Maxim Integrated | Board(s) | Board(s) | MAX77654 | Battery Charger | Power Management | Graphical User Interface (GUI) I2C Interface(s) | |||||||||
Analog Devices Inc./Maxim Integrated | Battery Management | Surface Mount | 30 mA | 85 °C | -40 C | 5.5 V | 2.7 V | 30-XFBGA WLBGA | 30-WLP (2.79x2.34) | ||||||
Analog Devices Inc./Maxim Integrated | General Purpose | Surface Mount | 28 µA | 85 C | -40 ¯C | 5.5 V | 2.7 V | 30-XFBGA WLBGA | 30-WLP (2.79x2.34) | ||||||
Analog Devices Inc./Maxim Integrated | General Purpose | Surface Mount | 28 µA | 85 C | -40 ¯C | 5.5 V | 2.7 V | 30-XFBGA WLBGA | 30-WLP (2.79x2.34) | ||||||
Analog Devices Inc./Maxim Integrated | General Purpose | Surface Mount | 28 µA | 85 C | -40 ¯C | 5.5 V | 2.7 V | 30-XFBGA WLBGA | 30-WLP (2.79x2.34) | ||||||
 Analog Devices Inc./Maxim Integrated | General Purpose | Surface Mount | 28 µA | 85 C | -40 ¯C | 5.5 V | 2.7 V | 30-XFBGA WLBGA | 30-WLP (2.79x2.34) | ||||||
Analog Devices Inc./Maxim Integrated | General Purpose | Surface Mount | 28 µA | 85 C | -40 ¯C | 5.5 V | 2.7 V | 30-XFBGA WLBGA | 30-WLP (2.79x2.34) |
