GRB260A Series
Manufacturer: CW Industries
Beta
⌘K
SWITCH ROCKER SPST 20A 125V
| Part | Mechanical Life | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Voltage Rating - DC | Voltage Rating - AC | Approval Agency | Termination Style | Actuator Marking | Mounting Type | Circuit | Color - Actuator/Cap | Current Rating (Amps) | Actuator Type | Ingress Protection | Illumination Voltage (Nominal) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

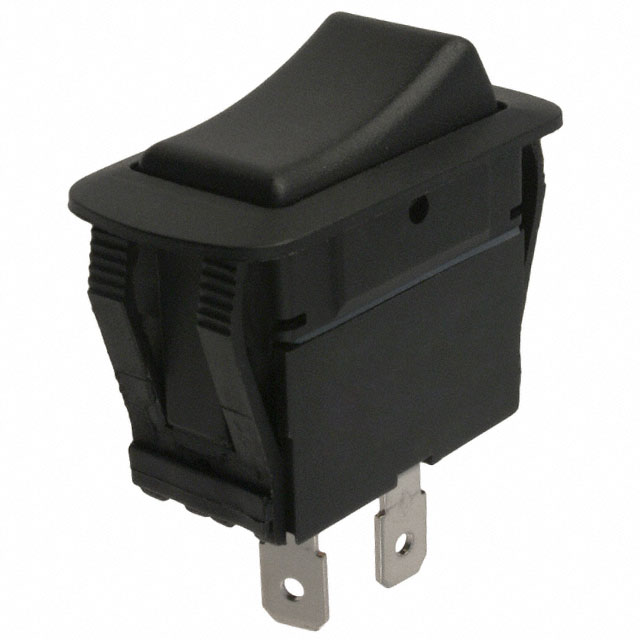

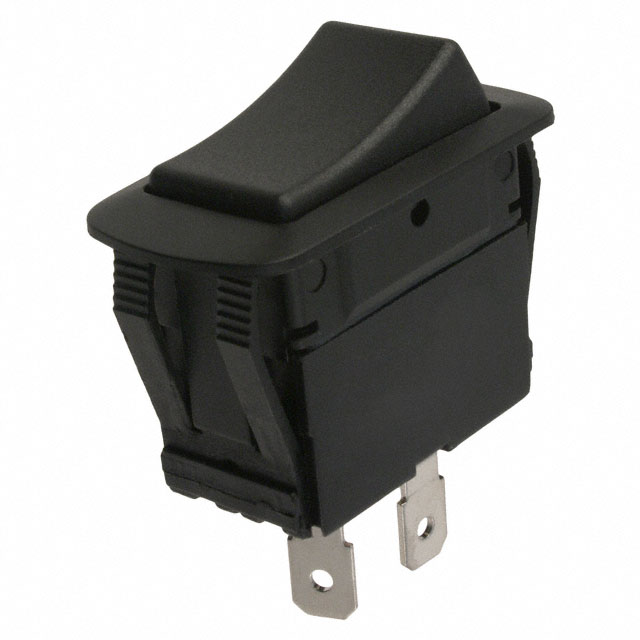

 CW Industries | 100000 Cycles | 21.2 mm | 36.6 mm | 85 °C | -20 ░C | On-Off | 14 V | 125 V | cULus ENEC | Quick Connect - 0.250" (6.3mm) | No Marking | Panel Mount Snap-In | SPST | Black | 20 A 21 A | Concave (Curved) | IP56 - Dust Protected Water Resistant | ||

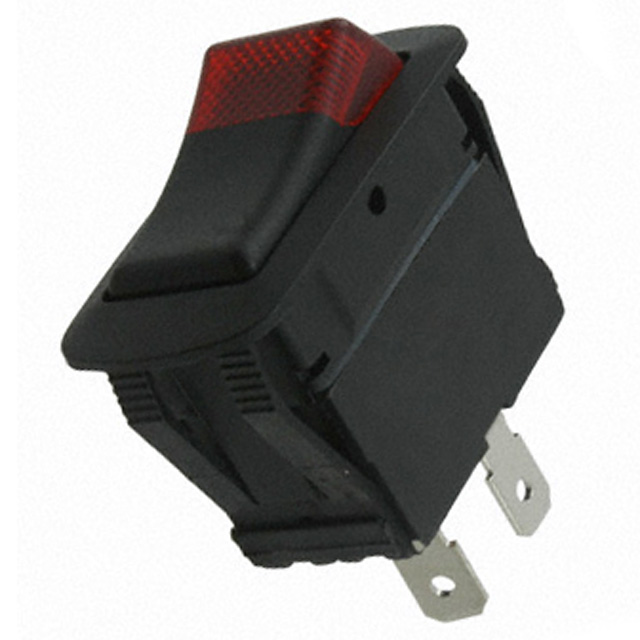

 CW Industries | 100000 Cycles | 21.2 mm | 36.6 mm | 85 °C | -20 ░C | On-Off | 14 V | 125 V | cULus ENEC | Quick Connect - 0.250" (6.3mm) | No Marking | Panel Mount Snap-In | SPST | Black | 20 A 21 A | Concave (Curved) - Illuminated | IP56 - Dust Protected Water Resistant | 250 VAC | Neon Red |
 CW Industries | 100000 Cycles | 21.2 mm | 36.6 mm | 85 °C | -20 ░C | On-Off | 14 V | 125 V | cULus ENEC | Quick Connect - 0.250" (6.3mm) | No Marking | Panel Mount Snap-In | SPST | Black | 20 A 21 A | Concave (Curved) | IP56 - Dust Protected Water Resistant |
