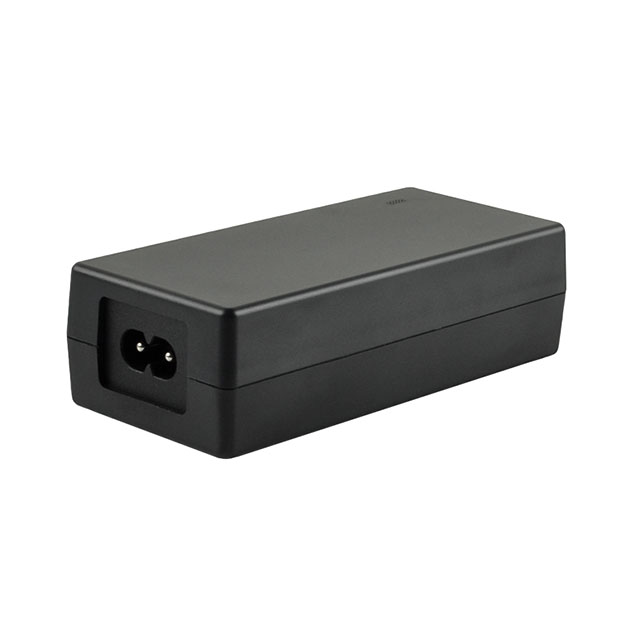

SDI40 Series

Manufacturer: CUI Inc.

Catalog

AC/DC DESKTOP ADAPTER 24V 41W

Part	Current - Output (Max) [Max]	Applications	Standard Number	Power (Watts)	Input Connector	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Region Utilized	Output Connector [diameter]	Output Connector [x]	Output Connector	Input Type	Cord Length	Cord Length	No Load Power Consumption	Polarization	Form	Operating Temperature [Max]	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Output Connector [z]	Output Connector [custom]	Output Connector [custom]	Output Connector [custom]
CUI Inc. SDI40-24-U-P6	1.7 A	ITE (Commercial)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 C22.2 No. 60950-1	41 W	IEC 320-C14	4.37 in	32.3 mm	52 mm	2.05 in	111 mm	1.27 "	Level VI	International	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Cord (Sold Separately)	60.2 in	1.53 m	75 mW	Positive Center	Desktop (Class I)	40 °C	24 V	264 VAC	90 VAC	CB Scheme CCC CSA EN FCC IEC RCM SIQ TUV UL
CUI Inc. SDI40-19-U2-P6	2.1 A	ITE (Commercial)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 C22.2 No. 60950-1	40 W	IEC 320-C14	4.37 in	32.3 mm	52 mm	2.05 in	111 mm	1.27 "	Level VI	Europe	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Cord	60.2 in	1.53 m	75 mW	Positive Center	Desktop (Class I)	40 °C	19 V	264 VAC	90 VAC	CB Scheme CCC CSA EN FCC IEC RCM SIQ TUV UL
CUI Inc. SDI40-15-UDC-P6R	2.7 A	ITE (Commercial)		41 W	IEC 320-C8	4.37 in	32.3 mm	52 mm	2.05 in	111 mm	1.27 "	Level VI	North America	2.5 mm 5.5 mm		Barrel Plug R/A	Cord	60.2 in	1.53 m	75 mW	Positive Center	Desktop (Class II)	40 °C	15 V	264 VAC	90 VAC	CE cULus GS PSE	9.5 mm
CUI Inc. SDI40-24-UC-P6	1.7 A	ITE (Commercial)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 C22.2 No. 60950-1	41 W	IEC 320-C14	4.37 in	32.3 mm	52 mm	2.05 in	111 mm	1.27 "	Level VI	North America	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Cord	60.2 in	1.53 m	75 mW	Positive Center	Desktop (Class I)	40 °C	24 V	264 VAC	90 VAC	CB Scheme CCC CSA EN FCC IEC RCM SIQ TUV UL
CUI Inc. SDI40-19-UD-P6	2.1 A	ITE (Commercial)		40 W	IEC 320-C8	4.37 in	32.3 mm	52 mm	2.05 in	111 mm	1.27 "	Level VI	International	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Cord (Sold Separately)	60.2 in	1.53 m	75 mW	Positive Center	Desktop (Class II)	40 °C	19 V	264 VAC	90 VAC	CE cULus GS PSE
CUI Inc. SDI40-12-UDC-P6	3 A	ITE (Commercial)		36 W	IEC 320-C8	4.37 in	32.3 mm	52 mm	2.05 in	111 mm	1.27 "	Level VI	North America	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Cord	60.2 in	1.53 m	75 mW	Positive Center	Desktop (Class II)	40 °C	12 V	264 VAC	90 VAC	CE cULus GS PSE
CUI Inc. SDI40-24-UC-P5R	1.7 A	ITE (Commercial)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 C22.2 No. 60950-1	41 W	IEC 320-C14	4.37 in	32.3 mm	52 mm	2.05 in	111 mm	1.27 "	Level VI	North America			Barrel Plug R/A	Cord	60.2 in	1.53 m	75 mW	Positive Center	Desktop (Class I)	40 °C	24 V	264 VAC	90 VAC	CB Scheme CCC CSA EN FCC IEC RCM SIQ TUV UL		9.5 mm	5.5 mm	2.1 mm
CUI Inc. SDI40-15-U-P6R	2.7 A	ITE (Commercial)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 C22.2 No. 60950-1	41 W	IEC 320-C14	4.37 in	32.3 mm	52 mm	2.05 in	111 mm	1.27 "	Level VI	International	2.5 mm 5.5 mm		Barrel Plug R/A	Cord (Sold Separately)	60.2 in	1.53 m	75 mW	Positive Center	Desktop (Class I)	40 °C	15 V	264 VAC	90 VAC	CB Scheme CCC CSA EN FCC IEC RCM SIQ TUV UL	9.5 mm
CUI Inc. SDI40-24-U2-P5	1.7 A	ITE (Commercial)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 C22.2 No. 60950-1	41 W	IEC 320-C14	4.37 in	32.3 mm	52 mm	2.05 in	111 mm	1.27 "	Level VI	Europe	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	Cord	60.2 in	1.53 m	75 mW	Positive Center	Desktop (Class I)	40 °C	24 V	264 VAC	90 VAC	CB Scheme CCC CSA EN FCC IEC RCM SIQ TUV UL
CUI Inc. SDI40-24-UD2-P6	1.7 A	ITE (Commercial)		41 W	IEC 320-C8	4.37 in	32.3 mm	52 mm	2.05 in	111 mm	1.27 "	Level VI	Europe	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Cord	60.2 in	1.53 m	75 mW	Positive Center	Desktop (Class II)	40 °C	24 V	264 VAC	90 VAC	CE cULus GS PSE
