630-W15 Series
Manufacturer: EDAC Inc.
Beta
⌘K

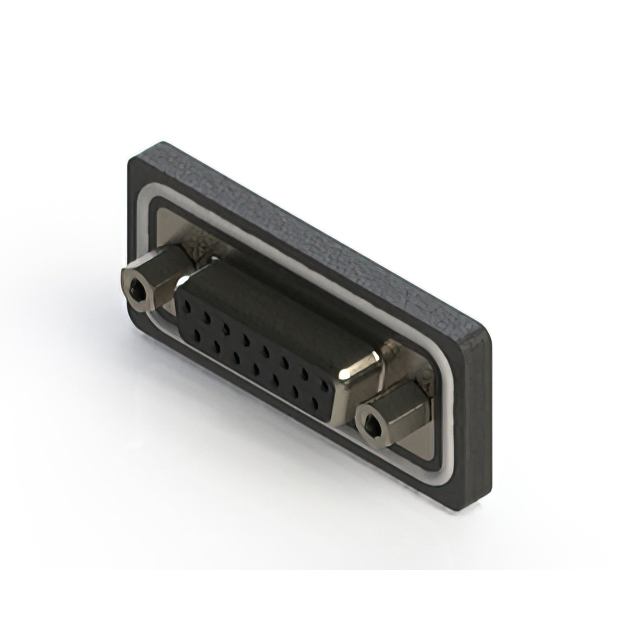

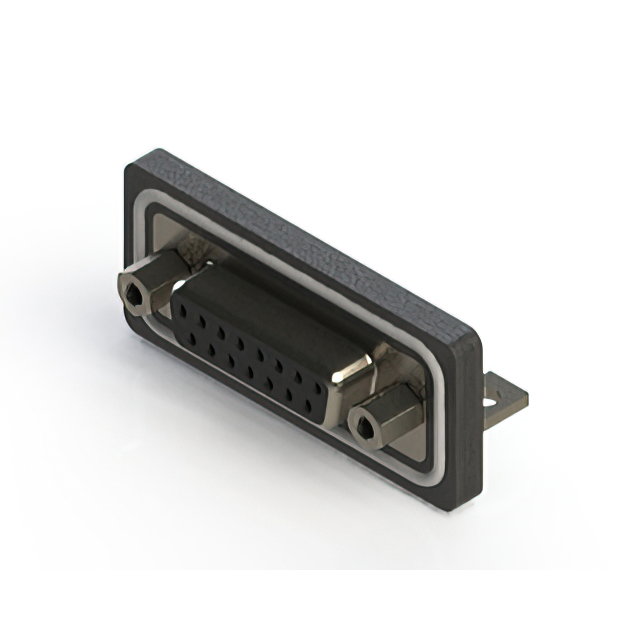

630W (WATERPROOF) SERIES RIGHT A
| Part | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Color | Connector Type | Backset Spacing | Backset Spacing | Termination | Contact Finish | Shell Material, Finish | Current Rating (Amps) | Contact Finish Thickness | Number of Positions | Shell Size, Connector Layout | Ingress Protection | Connector Style | Contact Type | Flange Feature | Material Flammability Rating | Number of Rows [custom] | Features | Mounting Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -25 °C | Copper Alloy | Black | Receptacle Female Sockets | 10.3 mm | 0.406 in | Solder | Gold | Nickel Plated Steel | 5 A | Flash | 15 | 2 | IP67 - Dust Tight Waterproof | D-Sub | Signal | 4-40 Mating Side Female Screwlock | UL94 V-0 | 2 | Shielded | Right Angle Through Hole | ||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -25 °C | Copper Alloy | Black | Receptacle Female Sockets | 10.3 mm | 0.406 in | Solder | Gold | Nickel Plated Steel | 5 A | 15 | 2 | IP67 - Dust Tight Waterproof | D-Sub | Signal | 4-40 Mating Side Female Screwlock | UL94 V-0 | 2 | Shielded | Right Angle Through Hole | 30 Áin | 0.76 Ám | |
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -25 °C | Copper Alloy | Black | Receptacle Female Sockets | 10.3 mm | 0.406 in | Solder | Gold | Nickel Plated Steel | 5 A | Flash | 15 | 2 | IP67 - Dust Tight Waterproof | D-Sub | Signal | 4-40 Mating Side Female Screwlock | UL94 V-0 | 2 | Mounting Brackets Shielded | Right Angle Through Hole | ||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -25 °C | Copper Alloy | Black | Receptacle Female Sockets | 10.3 mm | 0.406 in | Solder | Gold | Nickel Plated Steel | 5 A | 15 | 2 | IP67 - Dust Tight Waterproof | D-Sub | Signal | 4-40 Mating Side Female Screwlock | UL94 V-0 | 2 | Shielded | Right Angle Through Hole | 15 µin | 0.38 µm | |
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -25 °C | Copper Alloy | Black | Receptacle Female Sockets | 10.3 mm | 0.406 in | Solder | Gold | Nickel Plated Steel | 5 A | 15 | 2 | IP67 - Dust Tight Waterproof | D-Sub | Signal | 4-40 Mating Side Female Screwlock | UL94 V-0 | 2 | Mounting Brackets Shielded | Right Angle Through Hole | 15 µin | 0.38 µm |
