2314924 Series

Catalog

BOARD CONNECTOR, 16 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, SOLDER TERMINAL, BLACK INSULATOR, RECEPTACLE

Part	Insulation Color	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Contact Finish - Post	Number of Positions	Contact Length - Post [x]	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Contact Material	Contact Type	Mounting Type	Termination	Current Rating (Amps)	Connector Type	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Pitch - Mating [x]	Pitch - Mating [x]	Material Flammability Rating	Number of Rows	Number of Positions Loaded	Insulation Material	Number of Positions

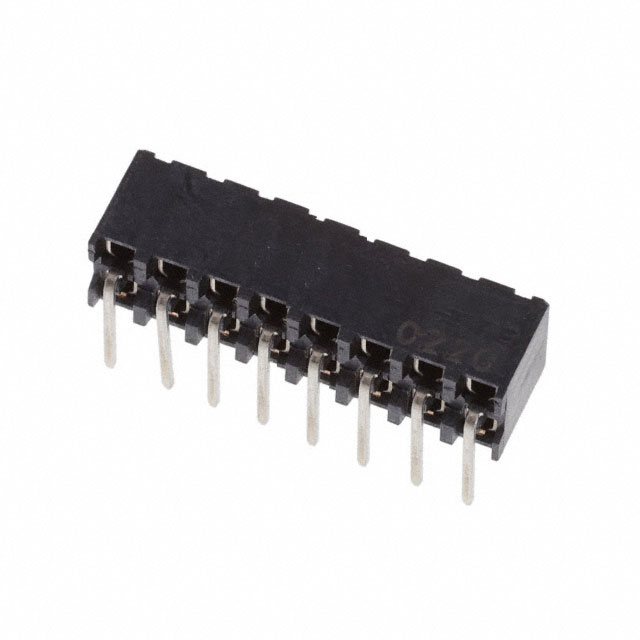

TE Connectivity Raychem Cable Protection 1-2314924-6	Black	0.161 in	4.1 mm	0.079 in	2 mm	3.94 µin	0.1 µm	125 VDC	Tin	16	0.11 in	2.79 mm	0.3 µm	12 µin	Push-Pull	Phosphor Bronze	Female Socket	Through Hole Right Angle	Solder	2 A	Receptacle	Gold	125 °C	-40 °C	Square	0.079 in	2 mm	UL94 V-0	2	All	Liquid Crystal Polymer (LCP)

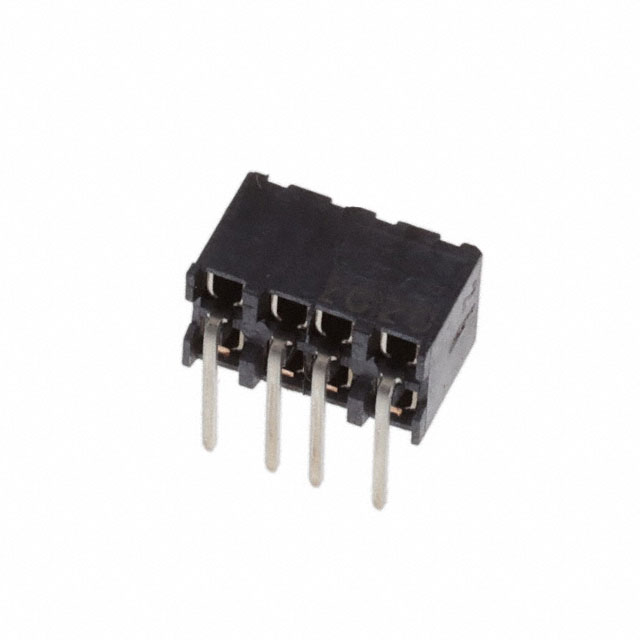

TE Connectivity Raychem Cable Protection 2314924-8	Black	0.161 in	4.1 mm	0.079 in	2 mm	3.94 µin	0.1 µm	125 VDC	Tin		0.11 in	2.79 mm	3 µm	118.1 µin	Push-Pull	Phosphor Bronze	Female Socket	Through Hole Right Angle	Solder	2 A	Receptacle	Gold	125 °C	-40 °C	Square	0.079 in	2 mm	UL94 V-0	2	All	Liquid Crystal Polymer (LCP)	8
