34158 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

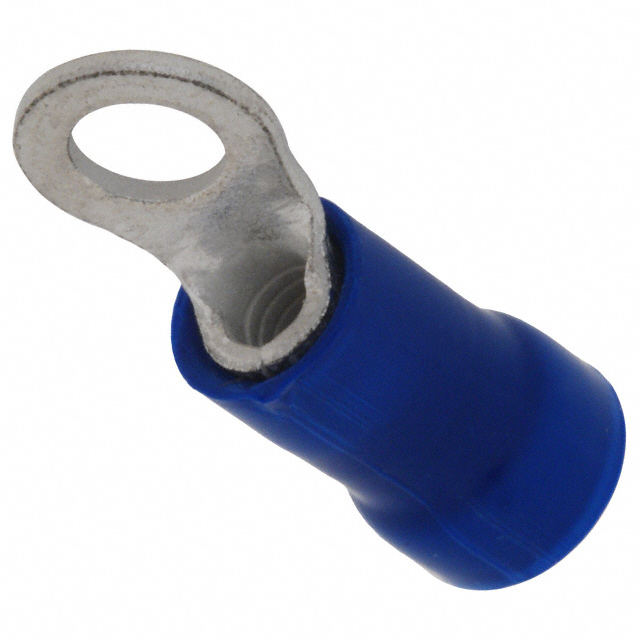

CONN RING CIRC 14-16AWG #6 CRIMP
| Part | Mounting Type | Material - Insulation | Insulation | Contact Material | Contact Finish | Length - Overall [x] | Length - Overall [x] | Features | Width - Outer Edges [y] | Width - Outer Edges [y] | Color | Thickness | Thickness | Stud/Tab Size | Terminal Type | Termination | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | Poly-Vinyl Chloride (PVC) | Insulated | Copper | Tin | 18.16 mm | 0.715 " | Serrated Termination | 0.25 " | 6.35 mm | Blue | 0.031 in | 0.79 mm | 6 Stud | Circular | Crimp | 4.9 mm | 3 mm | 0.193 in | 0.118 in |
