1036A Series
Manufacturer: Belden Inc.
Beta
⌘K

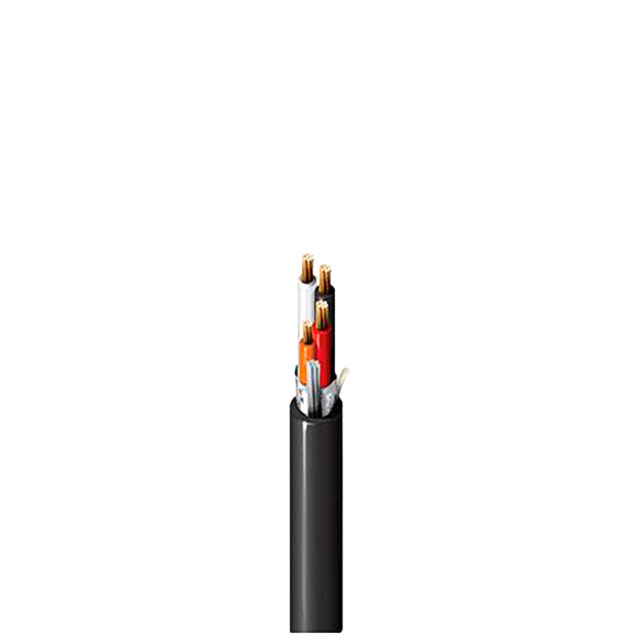

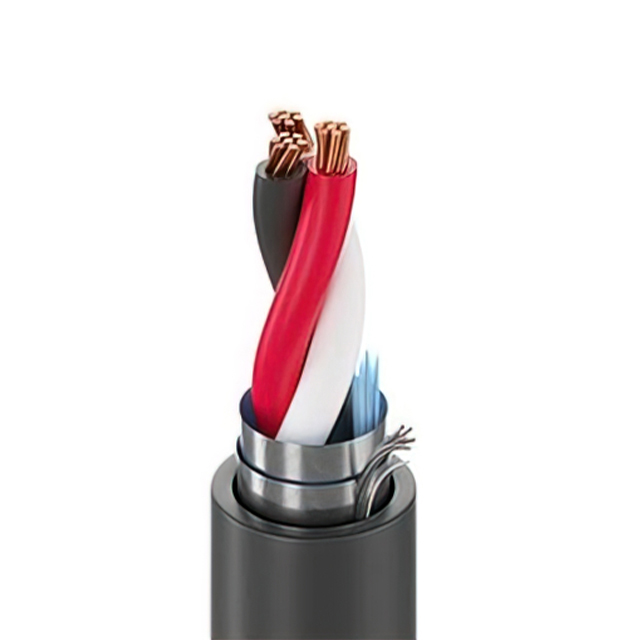

CABLE 3 COND 18AWG BLACK
| Part | Shield Coverage | Shield Material | Wire Gauge | Number of Conductors | Features | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Jacket (Insulation) Material | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Length | Length | Cable Type | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 18 AWG | 3 | Drain Wire Rip Cord | UL Style 2464 | 6.76 mm | 0.266 in | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | Foil | 0.94 mm | 0.037 in | 26 AWG | 7 | Copper Bare | 3048 m | 10000 ft | Multi-Conductor | Black | -30 ░C | 105 ░C |
Belden Inc. | 100 % | Aluminum | 18 AWG | 3 | Drain Wire Rip Cord | UL Style 2464 | 6.76 mm | 0.266 in | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | Foil | 0.94 mm | 0.037 in | 26 AWG | 7 | Copper Bare | 304.8 m | 1000 ft | Multi-Conductor | Black | -30 ░C | 105 ░C |
Belden Inc. | 100 % | Aluminum | 18 AWG | 3 | Drain Wire Rip Cord | UL Style 2464 | 6.76 mm | 0.266 in | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | Foil | 0.94 mm | 0.037 in | 26 AWG | 7 | Copper Bare | Multi-Conductor | Black | -30 ░C | 105 ░C | ||
 Belden Inc. | 100 % | Aluminum | 18 AWG | 3 | Drain Wire Rip Cord | UL Style 2464 | 6.76 mm | 0.266 in | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | Foil | 0.94 mm | 0.037 in | 26 AWG | 7 | Copper Bare | 304.8 m | 1000 ft | Multi-Conductor | Blue | -30 ░C | 105 ░C |
