DCCM31 Series

Manufacturer: Cinch Connectivity Solutions

Catalog

CONN MICRO-D RCPT 31POS PNL MNT

Part	Dielectric Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Current Rating (Amps)	Number of Positions [custom]	Connector Type	Features	Material Flammability Rating	Shell Size, Connector Layout [y]	Shell Size, Connector Layout [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Mounting Type	Contact Type	Number of Rows [custom]	Shell Material, Finish	Type	Color	Length	Length	1st Connector	2nd Connector	Backset Spacing	Backset Spacing	Termination	Flange Feature	Length [x]	Length [x]

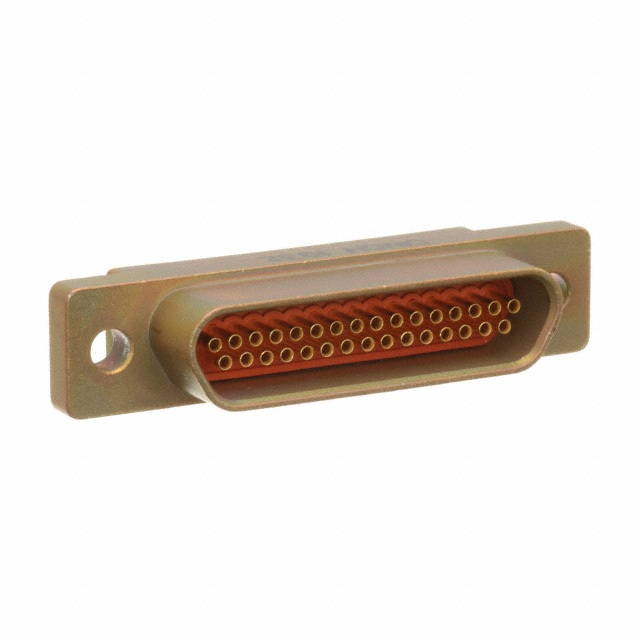

Cinch Connectivity Solutions DCCM31SSB	Diallyl Phthalate (DAP) Glass Filled	Copper Alloy	-55 C	135 °C	D-Type Micro-D	3 A	31	Receptacle Female Sockets	Shielded	UL94 V-0	0.043 in	0.05 in	50 µin	1.27 µm	Gold	Panel Mount	Signal	2	Aluminum Alloy Yellow Chromate Plated Cadmium
Cinch Connectivity Solutions DCCM31S6E5-36.0BN							31						50 µin	1.27 µm	Gold					D-Type Micro-D	Individual Multiple	91.44 cm	3 ft	Receptacle Female Sockets	Individual Wire Leads
Cinch Connectivity Solutions DCCM31SCBRPN	Diallyl Phthalate (DAP) Glass Filled	Copper Alloy	-55 C	135 °C	D-Type Micro-D	3 A	31	Receptacle Female Sockets	Shielded	UL94 V-0	0.043 in	0.05 in	50 µin	1.27 µm	Gold	Right Angle Through Hole	Signal	2	Aluminum Alloy Electroless Nickel Plated							0.13 in	3.3 mm	Solder	Female Screwlock Mating Side
Cinch Connectivity Solutions DCCM31P6E5-36.0BN							31						50 µin	1.27 µm	Gold					D-Type Micro-D	Individual Multiple	91.44 cm	3 ft	Male Pins Plug	Individual Wire Leads

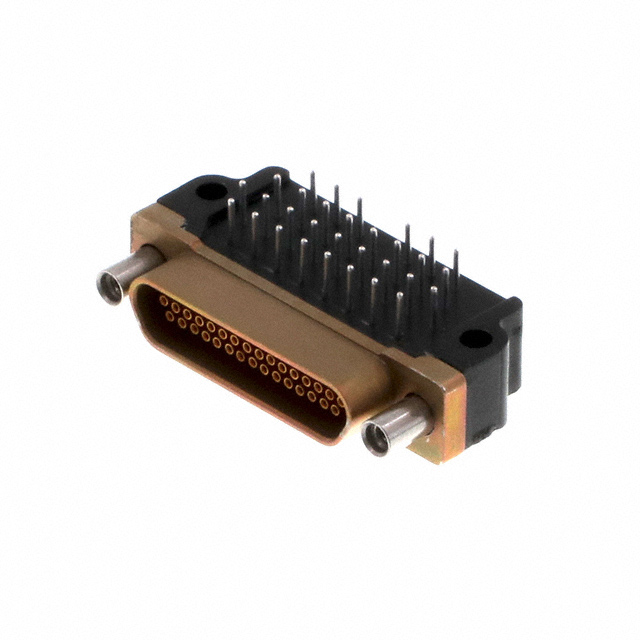

Cinch Connectivity Solutions DCCM31SCBRP	Diallyl Phthalate (DAP) Glass Filled	Copper Alloy	-55 C	135 °C	D-Type Micro-D	3 A	31	Receptacle Female Sockets	Shielded	UL94 V-0	0.043 in	0.05 in	50 µin	1.27 µm	Gold	Right Angle Through Hole	Signal	2	Aluminum Alloy Yellow Chromate Plated Cadmium							0.13 in	3.3 mm	Solder	Female Screwlock Mating Side

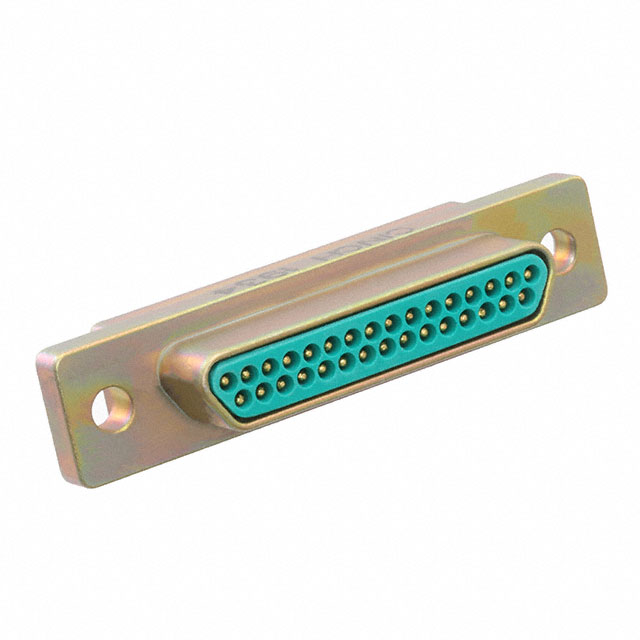

Cinch Connectivity Solutions DCCM31PSB	Diallyl Phthalate (DAP) Glass Filled	Copper Alloy	-55 C	135 °C	D-Type Micro-D	3 A	31	Plug Male Pins	Shielded	UL94 V-0	0.043 in	0.05 in	50 µin	1.27 µm	Gold	Panel Mount	Signal	2	Aluminum Alloy Yellow Chromate Plated Cadmium
Cinch Connectivity Solutions DCCM31PCBRPN	Diallyl Phthalate (DAP) Glass Filled	Copper Alloy	-55 C	135 °C	D-Type Micro-D	3 A	31	Plug Male Pins	Shielded	UL94 V-0	0.043 in	0.05 in	50 µin	1.27 µm	Gold	Right Angle Through Hole	Signal	2	Aluminum Alloy Electroless Nickel Plated							0.13 in	3.3 mm	Solder	Female Screwlock Mating Side
Cinch Connectivity Solutions DCCM31P6E5-18.0B							31						50 µin	1.27 µm	Gold					D-Type Micro-D	Individual Multiple			Male Pins Plug	Individual Wire Leads					457.2 mm	1.5 ft
Cinch Connectivity Solutions DCCM31PCBRP	Diallyl Phthalate (DAP) Glass Filled	Copper Alloy	-55 C	135 °C	D-Type Micro-D	3 A	31	Plug Male Pins	Shielded	UL94 V-0	0.043 in	0.05 in	50 µin	1.27 µm	Gold	Right Angle Through Hole	Signal	2	Aluminum Alloy Yellow Chromate Plated Cadmium							0.13 in	3.3 mm	Solder	Female Screwlock Mating Side

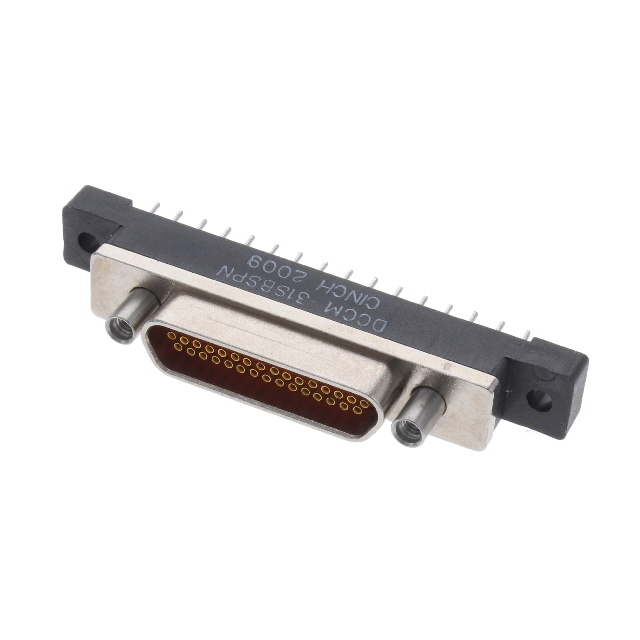

Cinch Connectivity Solutions DCCM31SBSPN	Diallyl Phthalate (DAP) Glass Filled	Copper Alloy	-55 C	135 °C	D-Type Micro-D	3 A	31	Receptacle Female Sockets	Shielded	UL94 V-0	0.043 in	0.05 in	50 µin	1.27 µm	Gold	Through Hole	Signal	2	Aluminum Alloy Electroless Nickel Plated									Solder	Female Screwlock Mating Side
