PBC20 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 20POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Contact Finish - Mating	Number of Rows	Contact Finish - Post	Material Flammability Rating	Termination	Current Rating (Amps)	Contact Shape	Contact Type	Mounting Type	Style	Insulation Material	Connector Type	Number of Positions Loaded	Fastening Type	Insulation Color	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Number of Positions	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length [x]	Overall Contact Length [x]	Number of Rows [custom]	Insulation Height [z]	Insulation Height [z]	Overall Contact Length	Contact Length - Post [custom]	Contact Length - Post [custom]
Sullins Connector Solutions PBC20SFDN	2.54 µm	100 µin	Unshrouded	Gold	1	Tin	UL94 V-0	Solder	3 A	Square	Male Pin	Through Hole	Board to Board Cable	Polybutylene Terephthalate (PBT)	Header Breakaway	All	Push-Pull	Black	Phosphor Bronze	-65 ░C	125 °C	0.25 µm	10 µin	21.29 mm	0.838 in	20	0.1 "	2.54 mm	0.1 in	2.54 mm	8.08 mm	0.318 in	10.67 mm	0.42 in

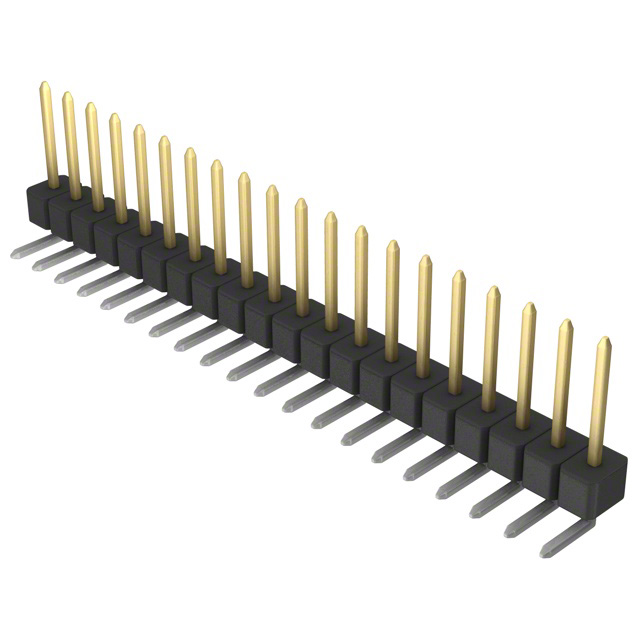

Sullins Connector Solutions PBC20SGAN	2.54 µm	100 µin	Unshrouded	Gold	1	Tin	UL94 V-0	Solder	3 A	Square	Male Pin	Right Angle Through Hole	Board to Board Cable	Polybutylene Terephthalate (PBT)	Header Breakaway	All	Push-Pull	Black	Phosphor Bronze	-65 ░C	125 °C	0.25 µm	10 µin			20	0.1 "	2.54 mm	0.14 in	3.56 mm	8.08 mm	0.318 in	2.54 mm	0.1 in

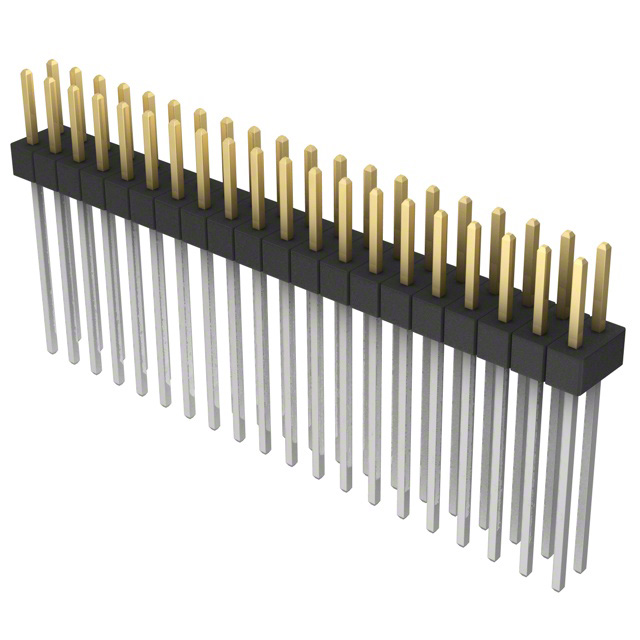

Sullins Connector Solutions PBC20DFAN	2.54 µm	100 µin	Unshrouded	Gold		Tin	UL94 V-0	Solder	3 A	Square	Male Pin	Through Hole	Board to Board Cable	Polybutylene Terephthalate (PBT)	Header Breakaway	All	Push-Pull	Black	Phosphor Bronze	-65 ░C	125 °C	0.25 µm	10 µin			40	0.1 "	2.54 mm	0.1 in	2.54 mm	8.08 mm	0.318 in	3.05 mm	0.12 in	0.1 in	2.54 mm	13.67 mm	0.538 in	2
Sullins Connector Solutions PBC20DGAN	2.54 µm	100 µin	Unshrouded	Gold		Tin	UL94 V-0	Solder	3 A	Square	Male Pin	Right Angle Through Hole	Board to Board Cable	Polybutylene Terephthalate (PBT)	Header Breakaway	All	Push-Pull	Black	Phosphor Bronze	-65 ░C	125 °C	0.25 µm	10 µin			40	0.1 "	2.54 mm			8.08 mm	0.318 in	2.54 mm	0.1 in	0.1 in	2.54 mm			2	6.1 mm	0.24 in
Sullins Connector Solutions PBC20DFCN	2.54 µm	100 µin	Unshrouded	Gold		Tin	UL94 V-0	Solder	3 A	Square	Male Pin	Through Hole	Board to Board Cable	Polybutylene Terephthalate (PBT)	Header Breakaway	All	Push-Pull	Black	Phosphor Bronze	-65 ░C	125 °C	0.25 µm	10 µin	18.75 mm		40	0.1 "	2.54 mm	0.1 in	2.54 mm	8.08 mm	0.318 in	8.13 mm	0.32 in	0.1 in	2.54 mm			2			0.738 in

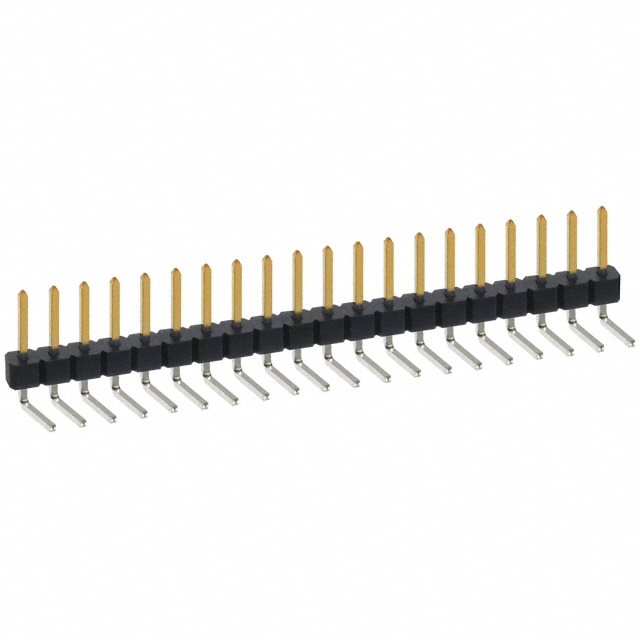

Sullins Connector Solutions PBC20SBBN	2.54 µm	100 µin	Unshrouded	Gold	1	Tin	UL94 V-0	Solder	3 A	Square	Male Pin	Right Angle Through Hole	Board to Board Cable	Polybutylene Terephthalate (PBT)	Header Breakaway	All	Push-Pull	Black	Phosphor Bronze	-65 ░C	125 °C	0.25 µm	10 µin			20	0.1 "	2.54 mm	0.14 in	3.56 mm	5.84 mm	0.23 in											5.08 mm	0.2 "
Sullins Connector Solutions PBC20DAFN	2.54 µm	100 µin	Unshrouded	Gold		Tin	UL94 V-0	Solder	3 A	Square	Male Pin	Through Hole	Board to Board Cable	Polybutylene Terephthalate (PBT)	Header Breakaway	All	Push-Pull	Black	Phosphor Bronze	-65 ░C	125 °C	0.25 µm	10 µin	24.13 mm	0.95 in	40	0.1 "	2.54 mm	0.1 in	2.54 mm	5.84 mm	0.23 in			0.1 in	2.54 mm			2				15.75 mm	0.62 "

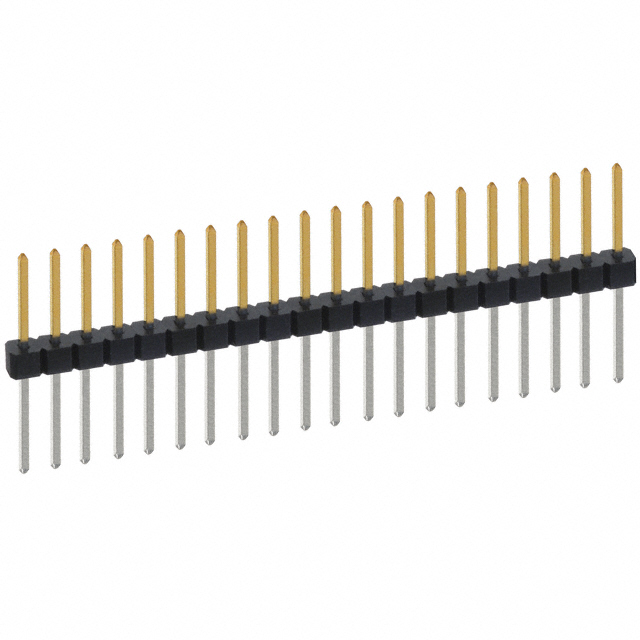

Sullins Connector Solutions PBC20SFBN	2.54 µm	100 µin	Unshrouded	Gold	1	Tin	UL94 V-0	Solder	3 A	Square	Male Pin	Through Hole	Board to Board Cable	Polybutylene Terephthalate (PBT)	Header Breakaway	All	Push-Pull	Black	Phosphor Bronze	-65 ░C	125 °C	0.25 µm	10 µin	16.21 mm	0.638 in	20	0.1 "	2.54 mm	0.1 in	2.54 mm	8.08 mm	0.318 in	5.58 mm	0.22 in
Sullins Connector Solutions PBC20SFCN	2.54 µm	100 µin	Unshrouded	Gold	1	Tin	UL94 V-0	Solder	3 A	Square	Male Pin	Through Hole	Board to Board Cable	Polybutylene Terephthalate (PBT)	Header Breakaway	All	Push-Pull	Black	Phosphor Bronze	-65 ░C	125 °C	0.25 µm	10 µin	18.75 mm		20	0.1 "	2.54 mm	0.1 in	2.54 mm	8.08 mm	0.318 in	8.13 mm	0.32 in								0.738 in
Sullins Connector Solutions PBC20SAGN	2.54 µm	100 µin	Unshrouded	Gold	1	Tin	UL94 V-0	Solder	3 A	Square	Male Pin	Through Hole	Board to Board Cable	Polybutylene Terephthalate (PBT)	Header Breakaway	All	Push-Pull	Black	Phosphor Bronze	-65 ░C	125 °C	0.25 µm	10 µin	26.67 mm	1.05 in	20	0.1 "	2.54 mm	0.1 in	2.54 mm	5.84 mm	0.23 in	18.29 mm	0.72 "
