LMZM33604 Series
Manufacturer: Texas Instruments
Beta
⌘K
3.5-V TO 36-V INPUT, 1-V TO 20-V OUTPUT, 4-A POWER MODULE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Max) [Max] | Applications | Type | Voltage - Input (Min) [Min] | Mounting Type | Efficiency | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Current - Output (Max) [Max] | Number of Outputs | Features | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Supplier Device Package | Package / Case | Supplied Contents | Regulator Topology | Utilized IC / Part | Current - Output | Main Purpose | Voltage - Output | Voltage - Input [Min] | Voltage - Input [Max] | Board Type | Outputs and Type | Outputs and Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

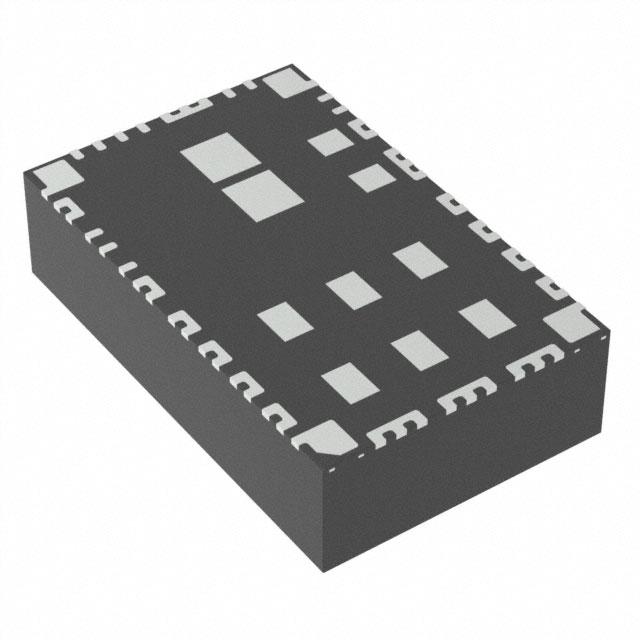

 Texas Instruments | -40 °C | 105 ░C | 36 V | ITE (Commercial) | Non-Isolated PoL Module | 3.5 V | Surface Mount | 91 % | 1 V | 20 V | 4 A | 1 | OCP OTP OVP Remote On/Off UVLO | 0.39 " | 16 mm | 0.63 " | 4.1 mm | 10 mm | 0.16 in | 41-B2QFN (16x10) | 41-PowerBQFN Module | |||||||||||

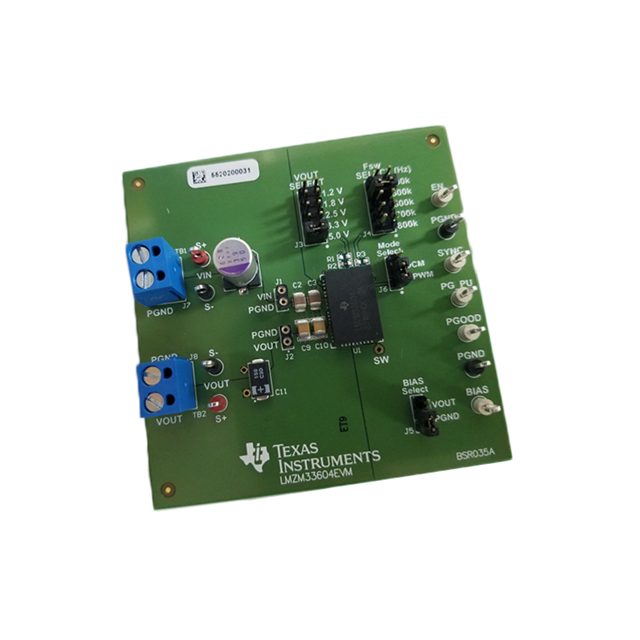

 Texas Instruments | Board(s) | Buck | LMZM33604 | 4 A | DC/DC Step Down | 1.2 V 1.8 V 2.5 V 3.3 V 5 V | 3.5 V | 36 V | Fully Populated | Non-Isolated | 1 |
