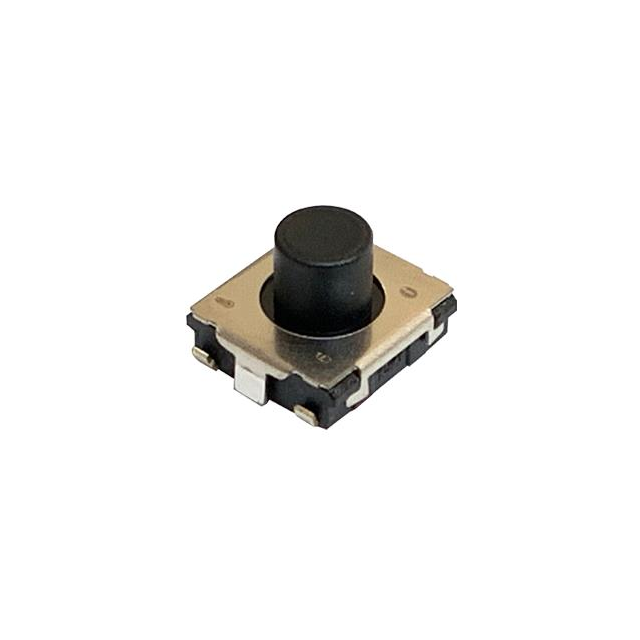

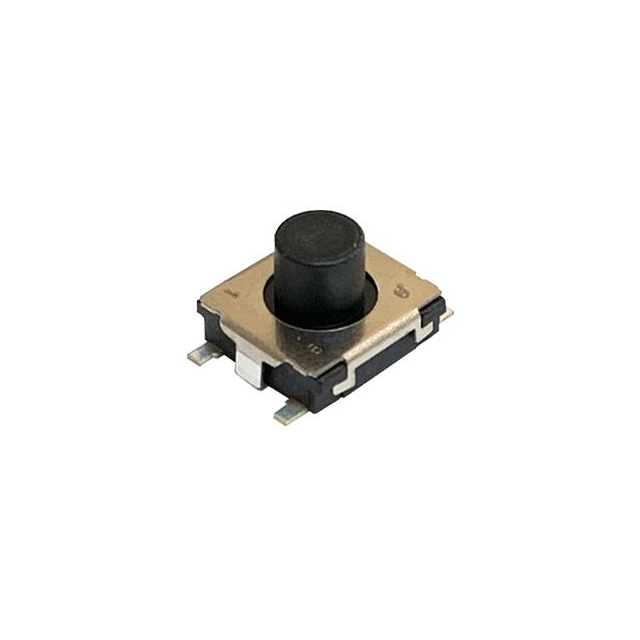

EVP-BT Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

SWITCH TACTILE SPST-NO 0.02A 15V

Part	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Operating Force	Actuator Orientation	Actuator Type	Switch Travel	Outline [x]	Outline [y]	Mounting Type	Actuator Height off PCB, Vertical [z]	Termination Style	Circuit	Switch Function	Contact Rating @ Voltage [x]
Panasonic Industrial Automation Sales EVP-BT5A4A000	Non-Illuminated	85 °C	-40 °C	1000000 Cycles	163 gf	Top Actuated	Standard	0.25 mm	6.5 mm	6 mm	Surface Mount	4.3 mm	SMD (SMT) Tab	SPST-NO	Off-Mom	0.02 A 15 VDC
Panasonic Industrial Automation Sales EVP-BT3A4A000	Non-Illuminated	85 °C	-40 °C	1000000 Cycles	102 gf	Top Actuated	Standard	0.2 mm	6.5 mm	6 mm	Surface Mount	4.3 mm	SMD (SMT) Tab	SPST-NO	Off-Mom	0.02 A 15 VDC
Panasonic Industrial Automation Sales EVP-BT1J4A000	Non-Illuminated	85 °C	-40 °C	2000000 Cycles	50 gf	Top Actuated	Standard	0.2 mm	6.5 mm	6 mm	Surface Mount	4.3 mm	J Lead	SPST-NO	Off-Mom	0.02 A 15 VDC
Panasonic Industrial Automation Sales EVP-BT4C4A000	Non-Illuminated	85 °C	-40 °C	1000000 Cycles	133 gf	Top Actuated	Standard	0.25 mm	6.5 mm	6 mm	Surface Mount	4.3 mm	J Lead	SPST-NO	Off-Mom	0.02 A 15 VDC
Panasonic Industrial Automation Sales EVP-BT6C4A000	Non-Illuminated	85 °C	-40 °C	200000 Cycles	265 gf	Top Actuated	Standard	0.25 mm	6.5 mm	6 mm	Surface Mount	4.3 mm	J Lead	SPST-NO	Off-Mom	0.02 A 15 VDC
Panasonic Industrial Automation Sales EVP-BT2J4A000	Non-Illuminated	85 °C	-40 °C	2000000 Cycles	80 gf	Top Actuated	Standard	0.2 mm	6.5 mm	6 mm	Surface Mount	4.3 mm	J Lead	SPST-NO	Off-Mom	0.02 A 15 VDC
Panasonic Industrial Automation Sales EVP-BT3J4A000	Non-Illuminated	85 °C	-40 °C	1000000 Cycles	102 gf	Top Actuated	Standard	0.2 mm	6.5 mm	6 mm	Surface Mount	4.3 mm	J Lead	SPST-NO	Off-Mom	0.02 A 15 VDC
Panasonic Industrial Automation Sales EVP-BT1C4A000	Non-Illuminated	85 °C	-40 °C	2000000 Cycles	50 gf	Top Actuated	Standard	0.2 mm	6.5 mm	6 mm	Surface Mount	4.3 mm	J Lead	SPST-NO	Off-Mom	0.02 A 15 VDC
Panasonic Industrial Automation Sales EVP-BT7J4A000	Non-Illuminated	85 °C	-40 °C	100000 Cycles	357 gf	Top Actuated	Standard	0.25 mm	6.5 mm	6 mm	Surface Mount	4.3 mm	J Lead	SPST-NO	Off-Mom	0.02 A 15 VDC
Panasonic Industrial Automation Sales EVP-BT6G4A000	Non-Illuminated	85 °C	-40 °C	200000 Cycles	265 gf	Top Actuated	Standard	0.25 mm	6.5 mm	6 mm	Surface Mount	4.3 mm	SMD (SMT) Tab	SPST-NO	Off-Mom	0.02 A 15 VDC
