RSBEC Series
Manufacturer: KEMET
Beta
⌘K

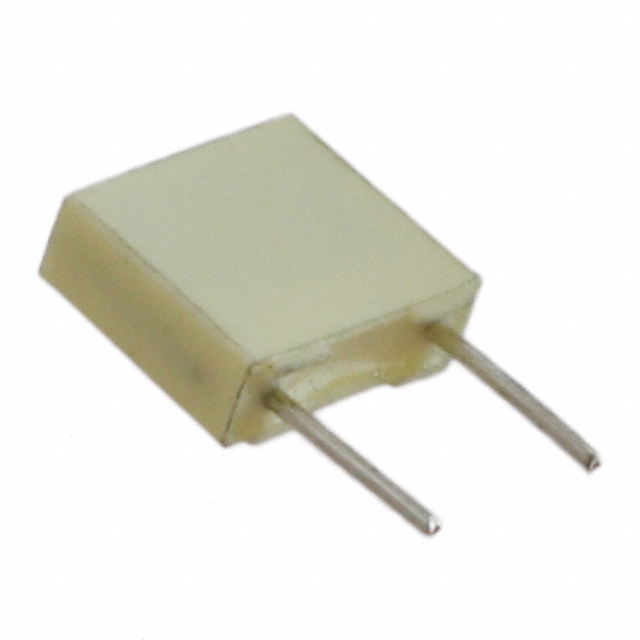

CAP FILM 10000PF 10% 100VDC RAD
| Part | Mounting Type | Applications | Package / Case | Lead Spacing | Lead Spacing | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Features | Termination | Capacitance | Dielectric Material | Ratings | Voltage Rating - DC | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Tolerance | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | Through Hole | Automotive | Radial | 0.197 " | 5 mm | 0.098 in | 0.283 " | 2.5 mm | 7.2 mm | High Temperature | PC Pins | 10000 pF | Polyester Metallized | AEC-Q200 | 100 V | 6.6 mm | 0.26 in | 10 % | -55 C | 125 °C | 63 V |
 KEMET | Through Hole | Automotive | Radial | 0.197 " | 5 mm | 0.098 in | 0.283 " | 2.5 mm | 7.2 mm | High Temperature | PC Pins | Metallized - Stacked Polyester Polyethylene Terephthalate (PET) | AEC-Q200 | 100 V | 6.6 mm | 0.26 in | 10 % | -55 C | 125 °C | 63 V |
