SM15B-ZE Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

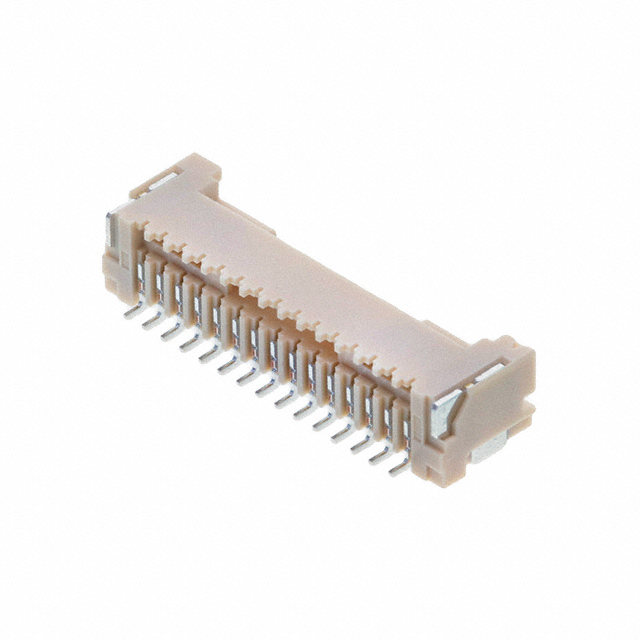

CONN HEADER SMD R/A 15POS 1.5MM
| Part | Number of Positions | Shrouding | Contact Material | Contact Type | Insulation Color | Insulation Height [z] | Insulation Height [z] | Material Flammability Rating | Number of Positions Loaded | Connector Type | Contact Finish - Post | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Voltage Rating | Insulation Material | Termination | Current Rating (Amps) | Mounting Type | Contact Shape | Style | Number of Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 15 | Shrouded - 4 Wall | Copper Alloy | Outer Shroud Contact | Natural | 0.228 " | 5.8 mm | UL94 V-0 | All | Header | Tin | 85 °C | -25 °C | Locking Ramp | 100 V | Nylon Polyamide (PA) | Solder | 2 A | Right Angle Surface Mount | Rectangular | Board to Cable/Wire | 1 | Solder Retention |
