80120 Series

Catalog

MULTICONDUCTOR CABLE, ECOFLEX® PUR, SHIELDED, 2 CONDUCTOR, 20 AWG, 0.523 MM², 100 FT, 30.5 M

Part	Shield Coverage	Shield Material	Cable Type	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Shield Type	Jacket (Insulation) Material	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]

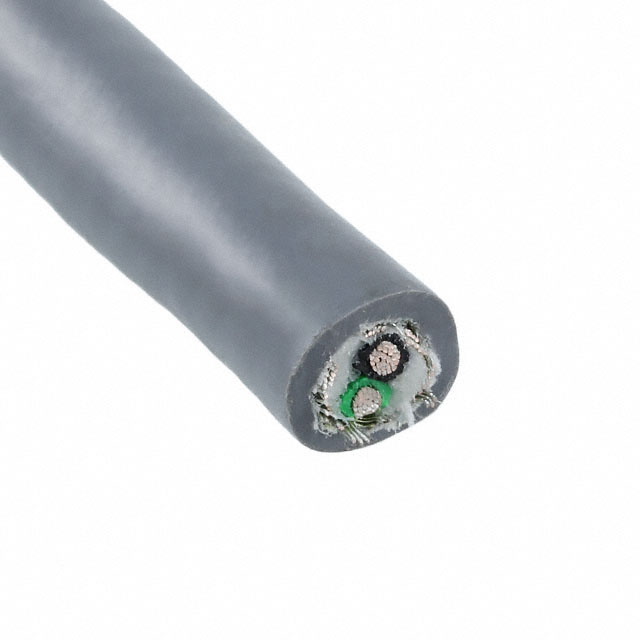

ALPHA WIRE 80120 SL005	85 %	Copper Tinned	Multi-Conductor	Slate	0.206 in	5.23 mm	100 ft	30.5 m	600 V	90 °C	-50 °C	20 AWG	Polyphenylene Ether (PPE)	0.0319 in	0.81 mm	Copper Tinned	Braid	Polyurethane (PU)	2	26	34 AWG
