XHP35A Series

Catalog

LED MOD XHP35A CL WH RECT 5700K

Part	Configuration	Height [z]	Color	Current - Max [Max]	CCT (K)	Type	Size / Dimension [x]	Size / Dimension [y]	Lens Type	Temperature - Test	Current - Test	CRI (Color Rendering Index)	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Viewing Angle	Size / Dimension [diameter]	CCT (K)	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]

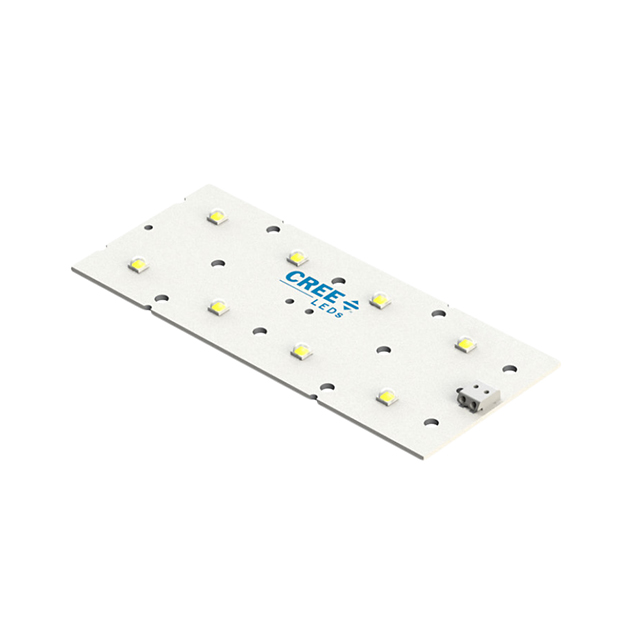

New Energy XHP35A-0R-08-0D0HD457E	Rectangle	1.52 mm	Cool White	2.1 A	5700 K	LED Module	110.39 mm	45.01 mm	Flat	85 °C
New Energy XHP35A-0R-08-0D0HD440E	Rectangle	1.52 mm	Neutral White	2.1 A	4000 K	LED Module	110.39 mm	45.01 mm	Flat	85 °C

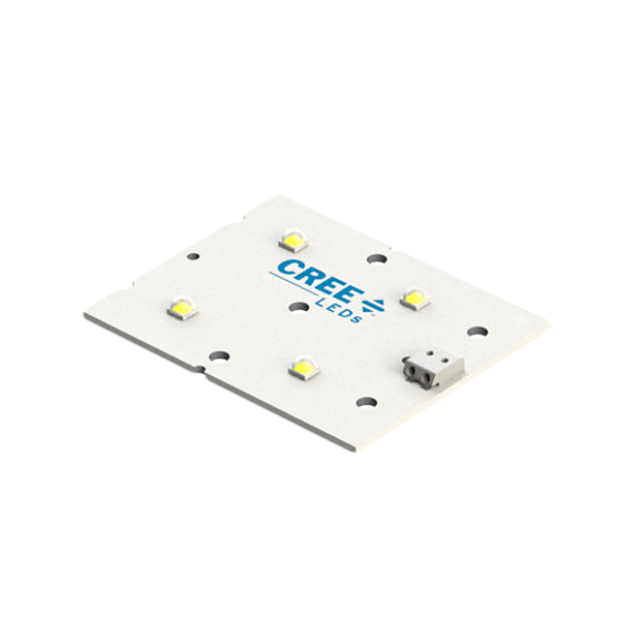

New Energy XHP35A-0R-04-0D0HD457E	Rectangle	1.52 mm	Cool White	1.05 A	5700 K	LED Module	59.59 mm	45.01 mm	Flat	85 °C	350 mA
New Energy XHP35A-0R-08-0D0BE240E	Rectangle		Neutral White	2.1 A	4000 K	LED Module	107.95 mm	44.96 mm	Domed	85 °C		70	4720 lm	149 lm/W

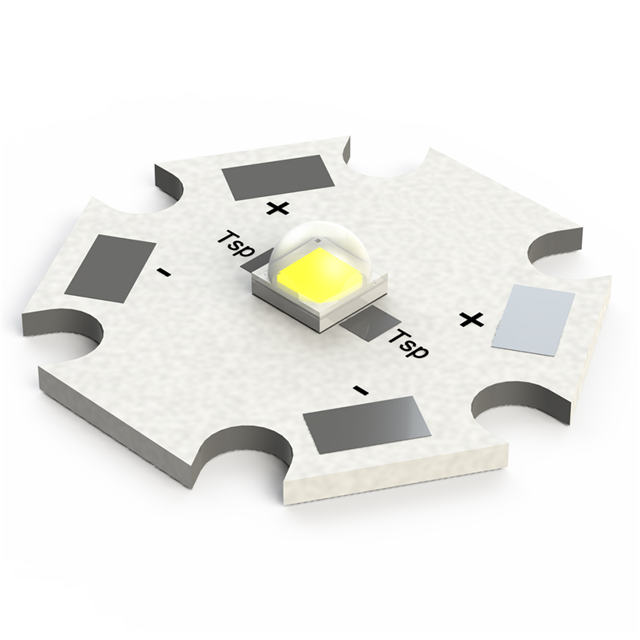

New Energy XHP35A-00-0000-0D0BE450E-SB01	Starboard		Cool White	1.05 A	5000 K	LED Module			Domed	85 °C	350 mA	70	658 lm	166 lm/W	11.3 V	125 °	19.89 mm	5-Step MacAdam Ellipse

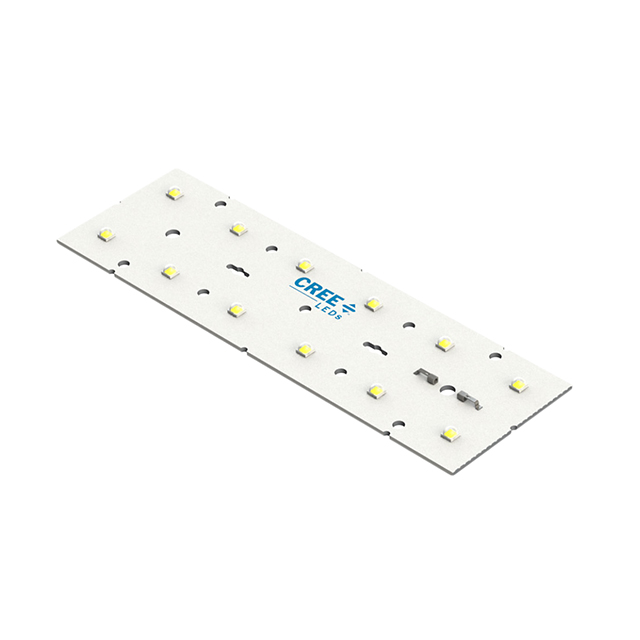

New Energy XHP35A-0R-12-0D0BE240E	Rectangle		Neutral White	3.15 A	4000 K	LED Module	146.56 mm	44.96 mm	Domed	85 °C	1.05 A	70	7080 lm	149 lm/W

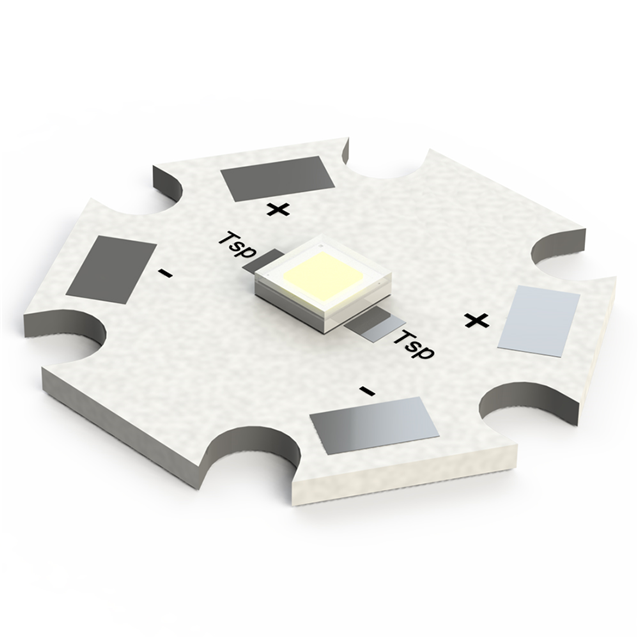

New Energy XHP35A-H0-0000-0D0BC440E-SB01	Starboard		Neutral White	1.05 A	4000 K	LED Module			Flat	85 °C	350 mA	70	493 lm	125 lm/W	11.3 V	115 °	19.89 mm		475 lm	510 lm
New Energy XHP35A-0R-04-0D0HC427E	Rectangle		Warm White	1.05 A	2700 K	LED Module	2.25 "	44.96 mm	Domed	85 °C	350 mA	80	1900 lm	120 lm/W				5-Step MacAdam Ellipse
New Energy XHP35A-0R-04-0D0HD450E	Rectangle	1.52 mm	Cool White	1.05 A	5000 K	LED Module	59.59 mm	45.01 mm	Flat	85 °C	350 mA							5-Step MacAdam Ellipse
New Energy XHP35A-0R-04-0D0BE457E	Rectangle		Cool White	1.05 A	5700 K	LED Module	2.25 "	44.96 mm	Domed	85 °C	350 mA	70	2540 lm	161 lm/W
