002601 Series

Manufacturer: Molex

Catalog

CONN HEADER R/A 24POS 4.2MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Contact Type	Contact Finish - Post	Termination	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Shrouding	Features	Connector Type	Contact Shape	Insulation Material	Contact Material	Number of Positions Loaded	Number of Rows [custom]	Fastening Type	Mounting Type	Style	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Color	Contact Termination	Pitch	Pitch	Row Spacing	Row Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Note	Row Spacing	Number of Rows
Molex 0026013126	2.54 µm	100 µin	General Purpose Industrial Telecommunications	Male Pin	Tin	Solder	UL94 V-2	0.38 µm	15 µin	Natural	0.165 in	4.2 mm	24	Gold	0.142 in	3.6 mm	Shrouded - 4 Wall	Board Lock	Header	Square	Nylon 6/6 Polyamide (PA66)	Brass	All	2	Locking Ramp	Right Angle Through Hole	Board to Cable/Wire	0.165 in	4.2 mm	9.6 mm	0.378 in
Molex 0026013128	2.54 µm	100 µin	General Purpose Industrial Telecommunications	Male Pin	Tin	Solder	UL94 V-0	0.38 µm	15 µin	Natural	0.165 in	4.2 mm	4	Gold	0.142 in	3.6 mm	Shrouded - 4 Wall	Board Lock	Header	Square	Nylon 6/6 Polyamide (PA66)	Brass	All	2	Locking Ramp	Right Angle Through Hole	Board to Cable/Wire	0.165 in	4.2 mm	9.6 mm	0.378 in
Molex 0026013159				Male or Female									12					Glow Wire Compliant	Plug		Nylon 6 Polyamide (PA6)			3	Push-Pull	Free Hanging (In-Line)						Black	Crimp	3.68 mm	0.145 in	0.145 in	3.68 mm	-40 C	105 ░C

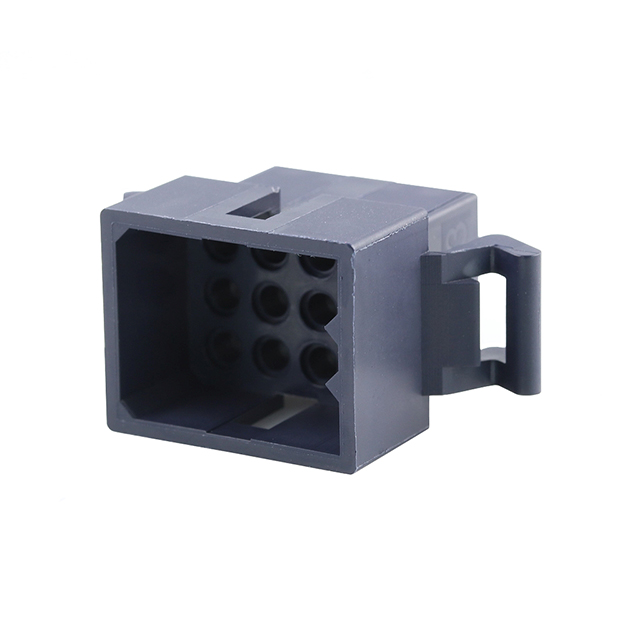

Molex 0026013157				Male or Female									12					Glow Wire Compliant	Plug		Nylon 6 Polyamide (PA6)			3	Detent Lock	Panel Mount Snap-In						Black	Crimp	3.68 mm	0.145 in	0.145 in	3.68 mm	-40 C	105 ░C	Contacts Not Included

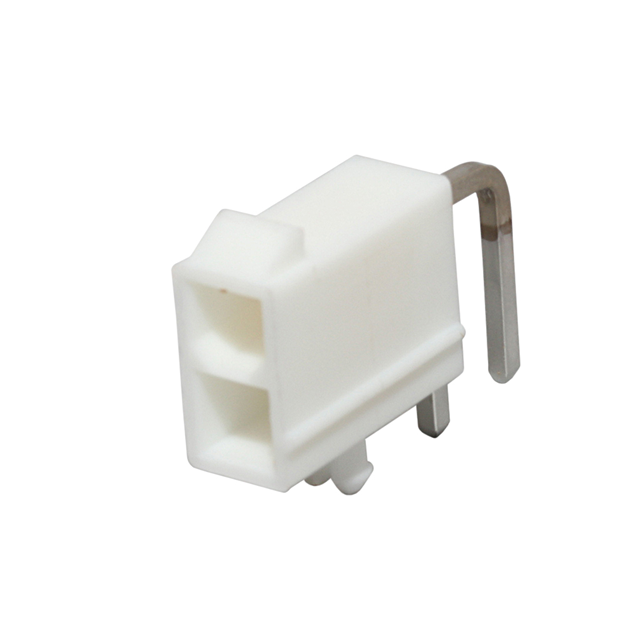

Molex 0026013127	2.54 µm	100 µin	General Purpose Industrial Telecommunications	Male Pin	Tin	Solder	UL94 V-0	0.38 µm	15 µin	Natural	0.165 in	4.2 mm	2	Gold	0.142 in	3.6 mm	Shrouded - 4 Wall	Board Lock	Header	Square	Nylon 6/6 Polyamide (PA66)	Brass	All	2	Locking Ramp	Right Angle Through Hole	Board to Cable/Wire			9.6 mm	0.378 in

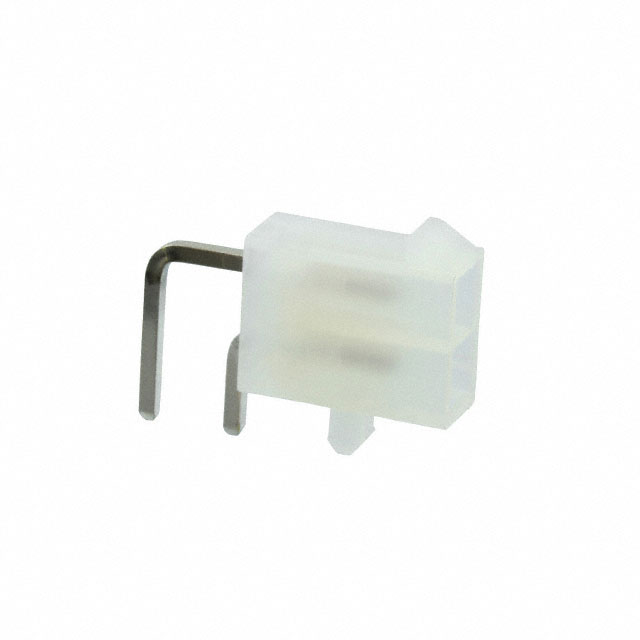

Molex 0026013114	2.54 µm	100 µin	General Purpose Industrial Telecommunications	Male Pin	Tin	Solder	UL94 V-2	0.38 µm	15 µin	Natural	0.165 in	4.2 mm	2	Gold	0.142 in	3.6 mm	Shrouded - 4 Wall	Board Lock	Header	Square	Nylon 6/6 Polyamide (PA66)	Brass	All	2	Locking Ramp	Right Angle Through Hole	Board to Cable/Wire			9.6 mm	0.378 in
Molex 0026013096				Male Pin									12						Plug					2		Panel Mount						Black	Crimp	4.2 mm	0.165 in	4.2 mm				Contacts Not Included	0.165 in

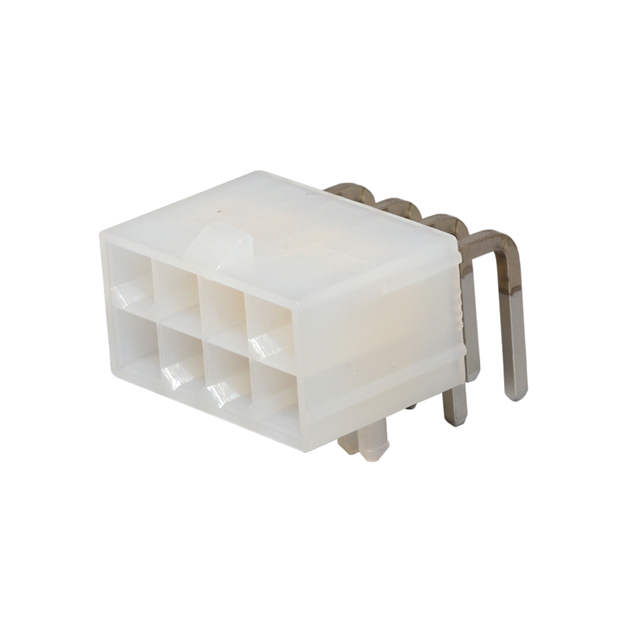

Molex 0026013144	2.54 µm	100 µin	General Purpose Industrial Telecommunications	Male Pin	Tin	Solder	UL94 V-2	1.27 µm	50 µin	Natural	0.165 in	4.2 mm	8	Gold	0.142 in	3.6 mm	Shrouded - 4 Wall	Board Lock	Header	Square	Nylon 6/6 Polyamide (PA66)	Brass	All	2	Locking Ramp	Right Angle Through Hole	Board to Cable/Wire	0.165 in	4.2 mm	9.6 mm	0.378 in
Molex 0026013093				Male Pin									4						Plug							Free Hanging (In-Line)						Black	Crimp	4.2 mm	0.165 in					Contacts Not Included		1
