3124-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

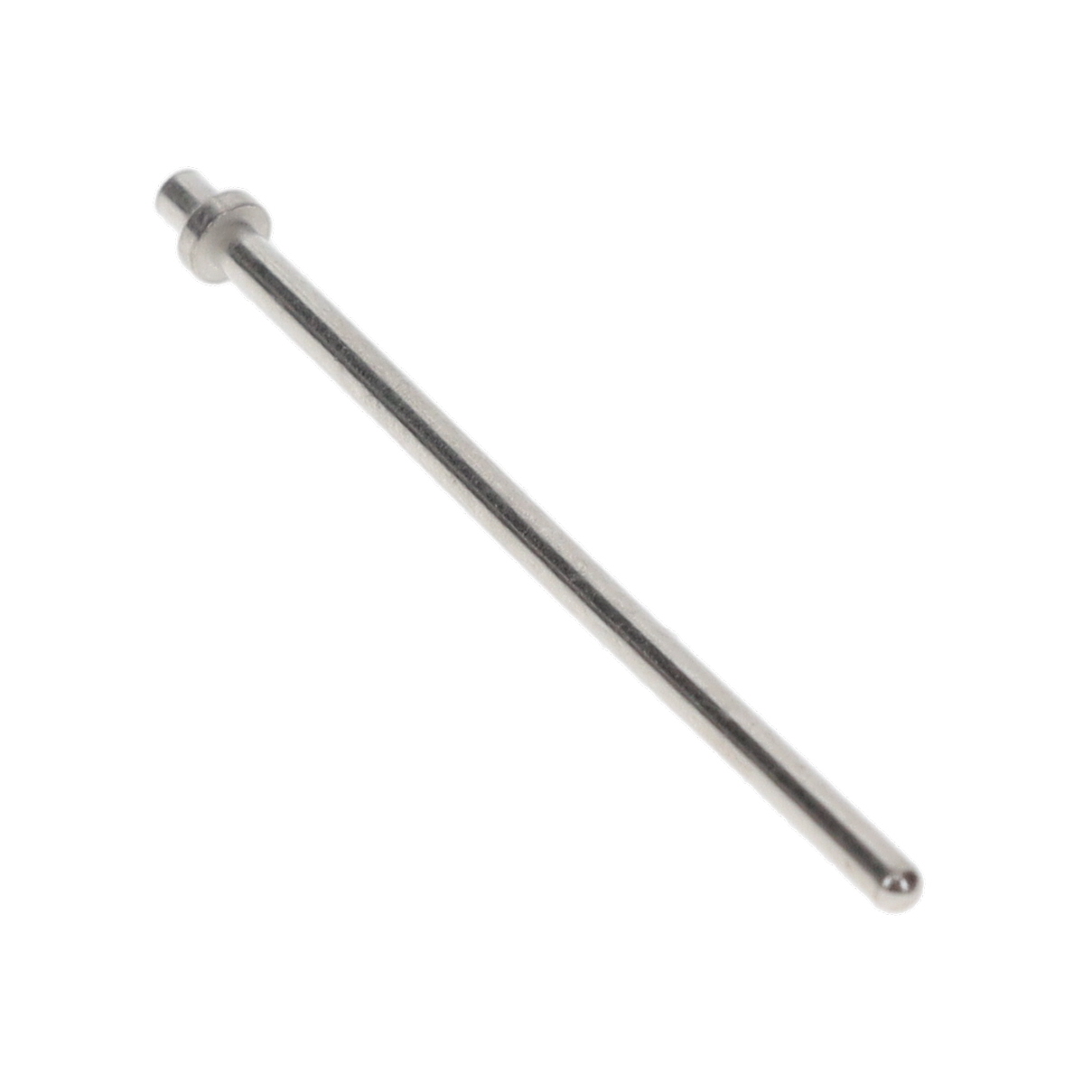

CONN PC PIN CIRC .040DIA GOLD
| Part | Insulation | Contact Material | Length - Below Flange [x] | Length - Below Flange [x] | Terminal Type | Length - Above Flange [x] | Length - Above Flange [x] | Contact Finish | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Length - Overall | Length - Overall | Mounting Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Terminal Style | Termination | Board Thickness | Board Thickness | Flange Diameter [diameter] | Flange Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Non-Insulated | Brass Alloy | 0.051 " | 1.3 mm | PC Pin | 22.35 mm | 0.88 in | Gold | 0.043 in | 1.09 mm | 0.25 Ám | 10 Áin | 24.16 mm | 0.951 in | Through Hole | 0.04 in | 1.02 mm | Single End | Swage | 0.79 mm | 0.031 in | 1.77 mm | 0.07 in |
 Mill-Max Manufacturing Corp. | Non-Insulated | Brass Alloy | 0.051 " | 1.3 mm | PC Pin | 22.35 mm | 0.88 in | Tin | 0.043 in | 1.09 mm | 5.08 Ám | 200 Áin | 24.16 mm | 0.951 in | Through Hole | 0.04 in | 1.02 mm | Single End | Swage | 0.79 mm | 0.031 in | 1.78 mm | 0.07 in |
Mill-Max Manufacturing Corp. | Non-Insulated | Brass Alloy | 0.051 " | 1.3 mm | PC Pin | 22.35 mm | 0.88 in | Gold | 0.043 in | 1.09 mm | 0.51 µm | 20 µin | 24.16 mm | 0.951 in | Through Hole | 0.04 in | 1.02 mm | Single End | Swage | 0.79 mm | 0.031 in | 1.77 mm | 0.07 in |
