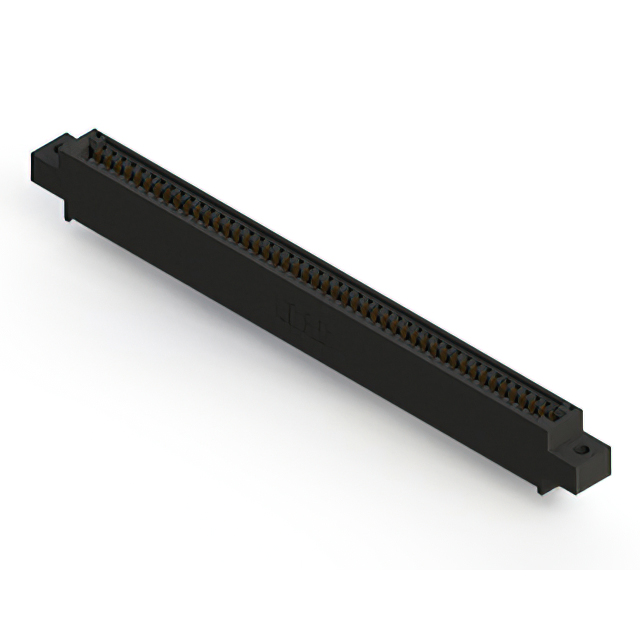

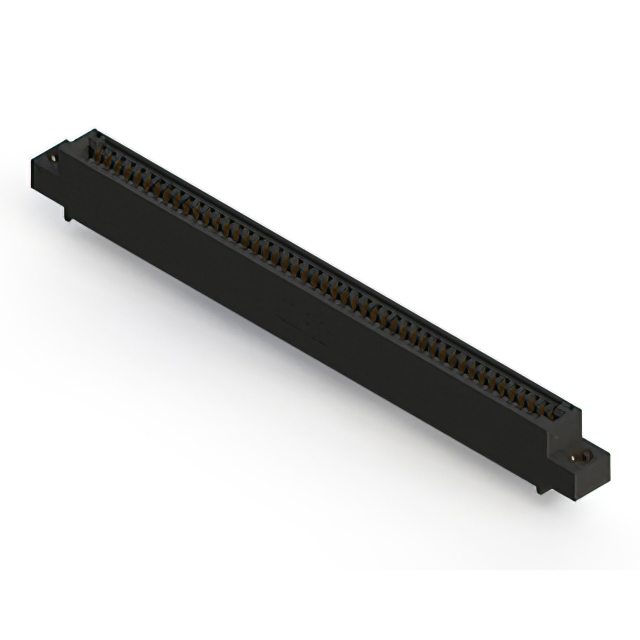

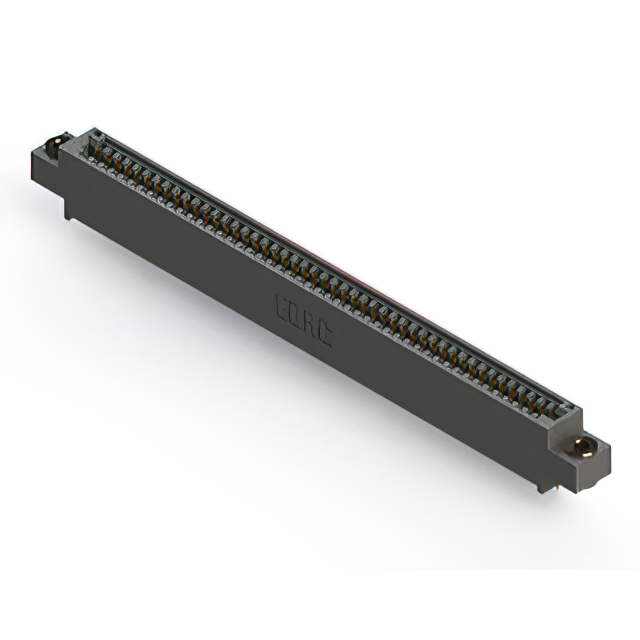

895-047 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 47POS 0.100
| Part | Termination Rows | Material - Insulation | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Read Out | Number of Positions/Bay/Row | Termination | Pitch | Pitch | Color | Gender | Card Thickness [Max] | Card Thickness [Min] | Card Type | Flange Feature | Mounting Type | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Gold | 0.25 Ám | 10 Áin | Copper Alloy | 47 | 125 °C | -40 C | 1 | Single | 47 | Wire Wrap | 0.1 " | 2.54 mm | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | M3 Threaded Insert Top Mount Opening | Through Hole | Cantilever | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Gold | 0.25 Ám | 10 Áin | Copper Alloy | 47 | 125 °C | -40 C | 1 | Single | 47 | Wire Wrap | 0.1 " | 2.54 mm | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Through Hole | Cantilever | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Gold | 0.25 Ám | 10 Áin | Copper Alloy | 47 | 125 °C | -40 C | 1 | Single | 47 | Wire Wrap | 0.1 " | 2.54 mm | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | Through Hole | Cantilever | 3.25 mm | 0.128 " |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Gold | 0.25 Ám | 10 Áin | Copper Alloy | 47 | 125 °C | -40 C | 1 | Single | 47 | Solder | 0.1 " | 2.54 mm | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Through Hole | Cantilever | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Gold | 0.25 Ám | 10 Áin | Copper Alloy | 47 | 125 °C | -40 C | 1 | Single | 47 | Solder | 0.1 " | 2.54 mm | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Floating Bobbin Top Mount Opening | Through Hole | Cantilever | 2.95 mm | 0.116 " |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Gold | 0.25 Ám | 10 Áin | Copper Alloy | 47 | 125 °C | -40 C | 1 | Single | 47 | Wire Wrap | 0.1 " | 2.54 mm | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Through Hole | Cantilever | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Gold | 0.25 Ám | 10 Áin | Copper Alloy | 47 | 125 °C | -40 C | 1 | Single | 47 | Solder | 0.1 " | 2.54 mm | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Through Hole | Cantilever | 3.25 mm | 0.128 " | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Gold | 0.25 Ám | 10 Áin | Copper Alloy | 47 | 125 °C | -40 C | 1 | Single | 47 | Wire Wrap | 0.1 " | 2.54 mm | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Through Hole | Cantilever | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Gold | 0.25 Ám | 10 Áin | Copper Alloy | 47 | 125 °C | -40 C | 1 | Single | 47 | Solder Eyelet(s) | 0.1 " | 2.54 mm | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Flush Mount Side Opening Unthreaded | Through Hole | Cantilever | 3.25 mm | 0.128 " |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Gold | 0.25 Ám | 10 Áin | Copper Alloy | 47 | 125 °C | -40 C | 1 | Single | 47 | Wire Wrap | 0.1 " | 2.54 mm | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | M3 Threaded Insert Top Mount Opening | Through Hole | Cantilever |
