ESX10-TC Series

Circuit Breakers 508, 1P, DM, 48VDC, N/O, 16A

Manufacturer: E-T-A

Catalog

Circuit Breakers 508, 1P, DM, 48VDC, N/O, 16A

Catalog

Circuit Breakers 508, 1P, DM, 48VDC, N/O, 16A

Part	Illumination	Voltage Rating - DC	Mounting Type	Approval Agency	Actuator Type	Number of Poles	Breaker Type	Current Rating (Amps)

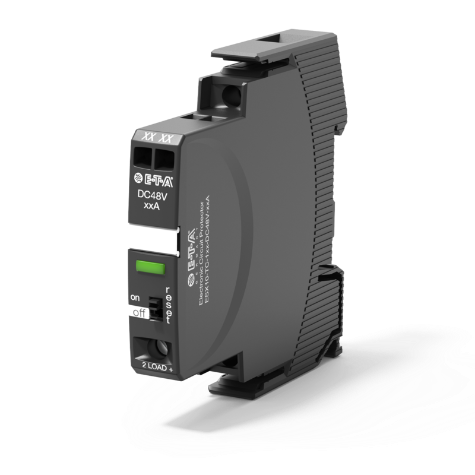

E-T-A ESX10-TC-101-DC48V-4A	None	48 V	DIN Rail	CSA C22.2 No 14 UL Class I Div 2 UL2367 UL508	Slide Switch	1	Solid State	4 A
E-T-A ESX10-TC-101-DC48V-1A	None	48 V	DIN Rail	CSA C22.2 No 14 UL Class I Div 2 UL2367 UL508	Slide Switch	1	Solid State
E-T-A ESX10-TC-101-DC48V-2A	None	48 V	DIN Rail	CSA C22.2 No 14 UL Class I Div 2 UL2367 UL508	Slide Switch	1	Solid State	2 A
E-T-A ESX10-TC-101-DC48V-12.5A	None	48 V	DIN Rail	CSA C22.2 No 14 UL Class I Div 2 UL2367 UL508	Slide Switch	1	Solid State	12.5 Amps
E-T-A ESX10-TC-101-DC48V-3A	None	48 V	DIN Rail	CSA C22.2 No 14 UL Class I Div 2 UL2367 UL508	Slide Switch	1	Solid State	3 A
E-T-A ESX10-TC-101-DC48V-8A	None	48 V	DIN Rail	CSA C22.2 No 14 UL Class I Div 2 UL2367 UL508	Slide Switch	1	Solid State	8 A
E-T-A ESX10-TC-101-DC48V-16A	None	48 V	DIN Rail	CSA C22.2 No 14 UL Class I Div 2 UL2367 UL508	Slide Switch	1	Solid State	16 A
E-T-A ESX10-TC-101-DC48V-6A	None	48 V	DIN Rail	CSA C22.2 No 14 UL Class I Div 2 UL2367 UL508	Slide Switch	1	Solid State	6 A
