173I Series

Manufacturer: Serpac

Catalog

BOX ABS ALMOND 6.88"L X 4.88"W

Part	Weight	Weight	Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material Flammability Rating	Area (L x W)	Area (L x W)	Design	Height [z]	Height [z]	Container Type	Thickness	Thickness	Color	Ratings	Features

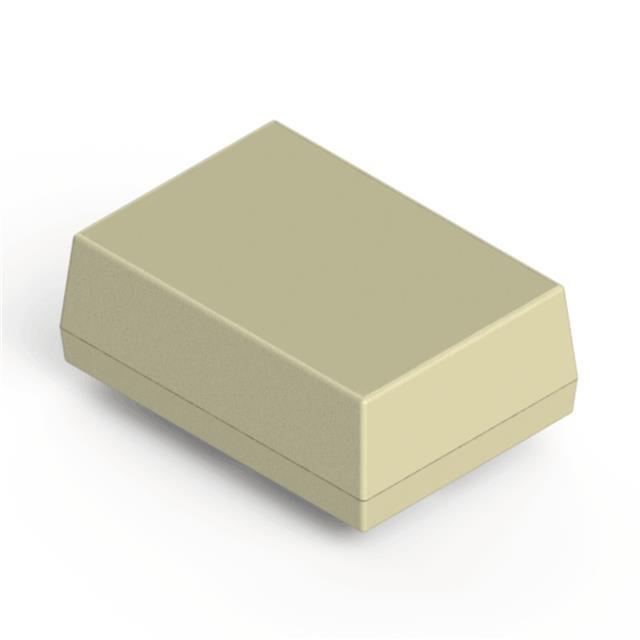

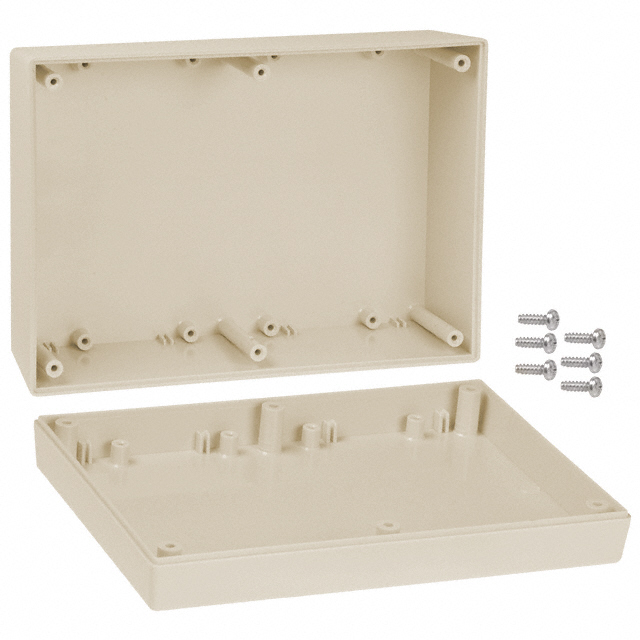

Serpac 173I,AL	226.8 g	0.5 lb	ABS Plastic	6.88 in	123.95 mm	174.75 mm	4.88 in	UL94 HB	217 cm²	33.6 in²	Hand Held Split Sides	2.5 in	63.5 mm	Box	2.54 mm	0.1 in	Almond	IP40 NEMA 1	PCB Supports

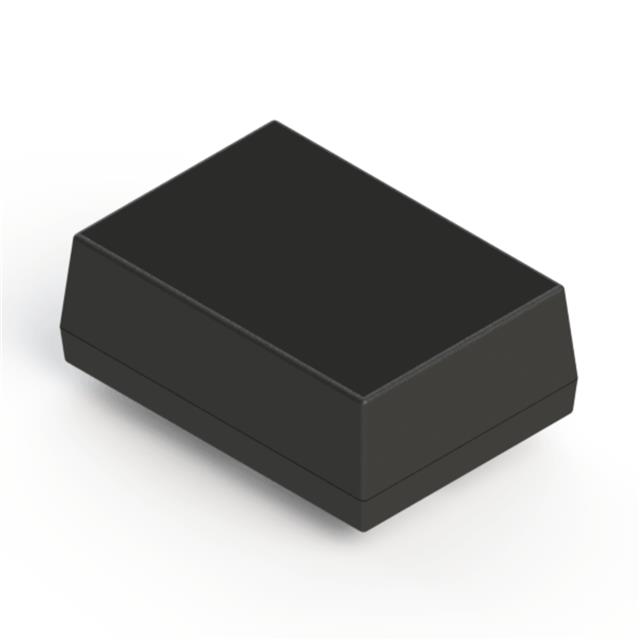

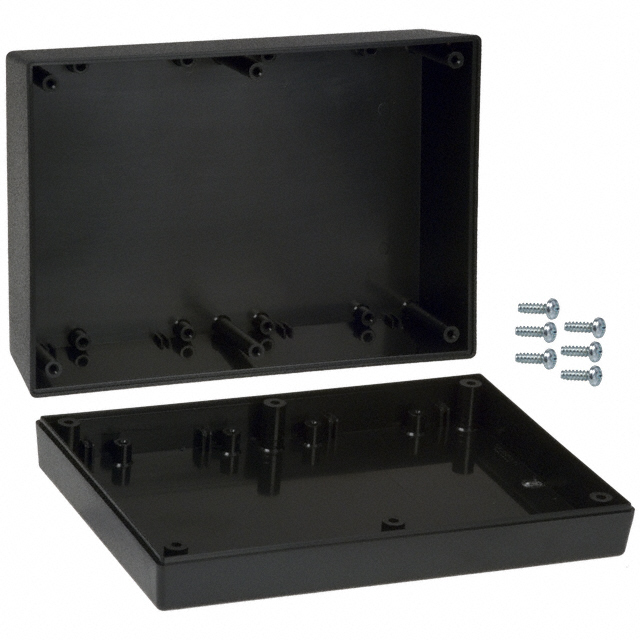

Serpac 173I,BK	226.8 g	0.5 lb	ABS Plastic	6.88 in	123.95 mm	174.75 mm	4.88 in	UL94 HB	217 cm²	33.6 in²	Hand Held Split Sides	2.5 in	63.5 mm	Box	2.54 mm	0.1 in	Black	IP40 NEMA 1	PCB Supports

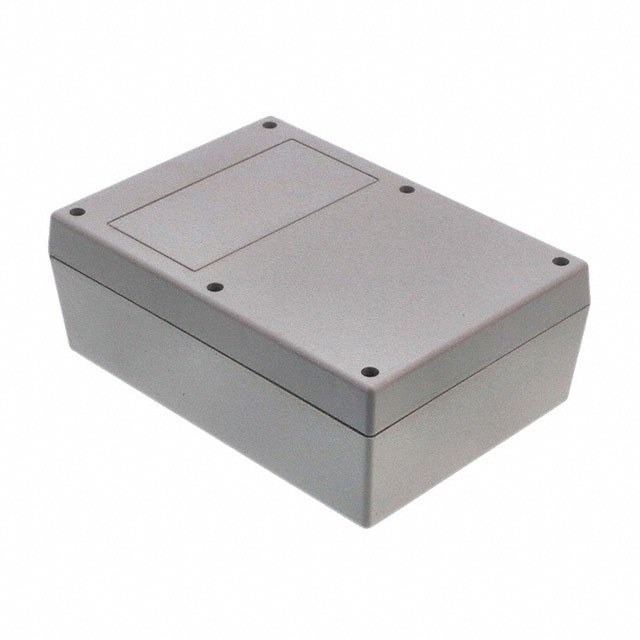

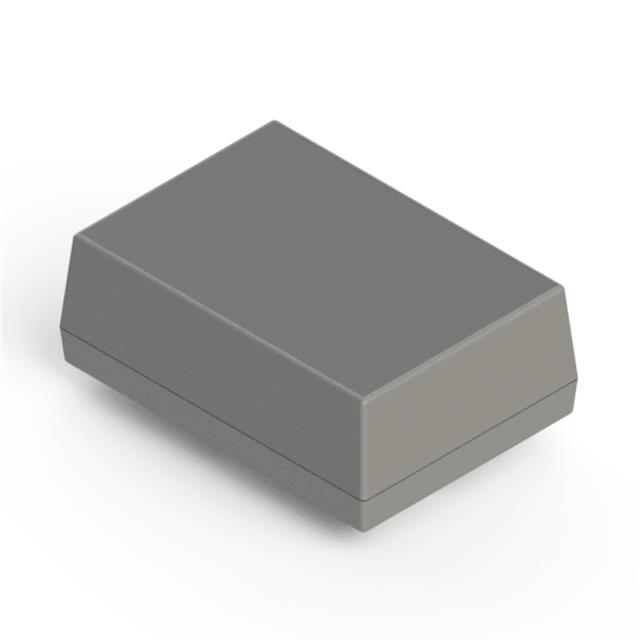

Serpac 173I,GY	226.8 g	0.5 lb	ABS Plastic	6.88 in	123.95 mm	174.75 mm	4.88 in	UL94 HB	217 cm²	33.6 in²	Hand Held Split Sides	2.5 in	63.5 mm	Box	2.54 mm	0.1 in	Gray	IP40 NEMA 1	PCB Supports
