WM052 Series

Manufacturer: Serpac

Catalog

BOX ABS BLACK 5.62"L X 3.25"W

Part	Weight [custom]	Weight [custom]	Ratings	Height [z]	Height [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Design	Material	Area (L x W)	Area (L x W)	Thickness	Thickness	Features	Material Flammability Rating	Color	Container Type	Area (L x W) [custom]	Area (L x W) [custom]

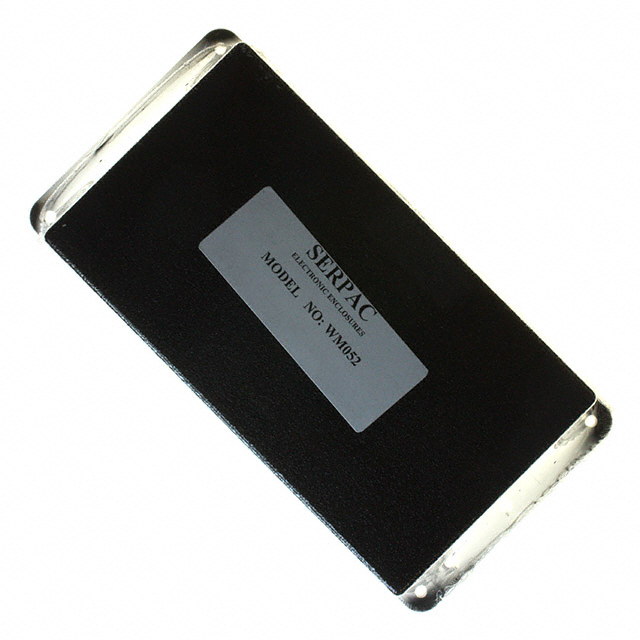

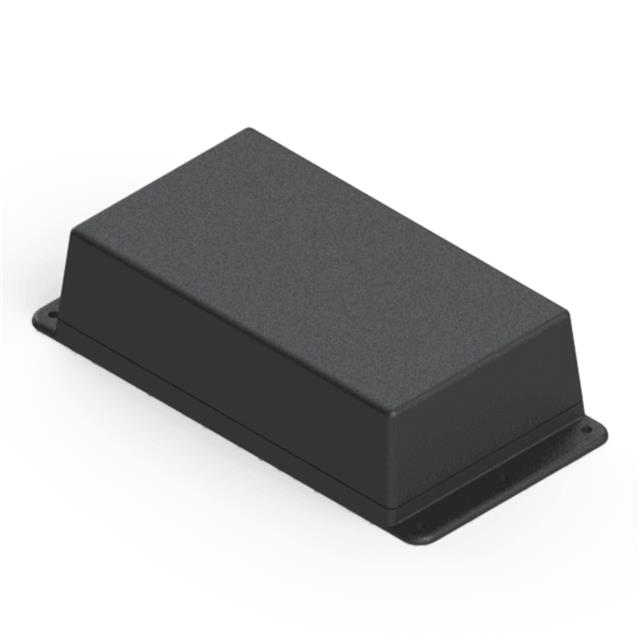

Serpac WM052,BK	110.68 g	0.244 lb	IP40 NEMA 1	1.6 "	40.64 mm	5.62 "	142.75 mm	82.55 mm	3.25 "	Cover Included	ABS Plastic	18.3 in²	118 cm²	2.54 mm	0.1 in	Mounting Flange PCB Supports Wall Mount	UL94 HB	Black	Box

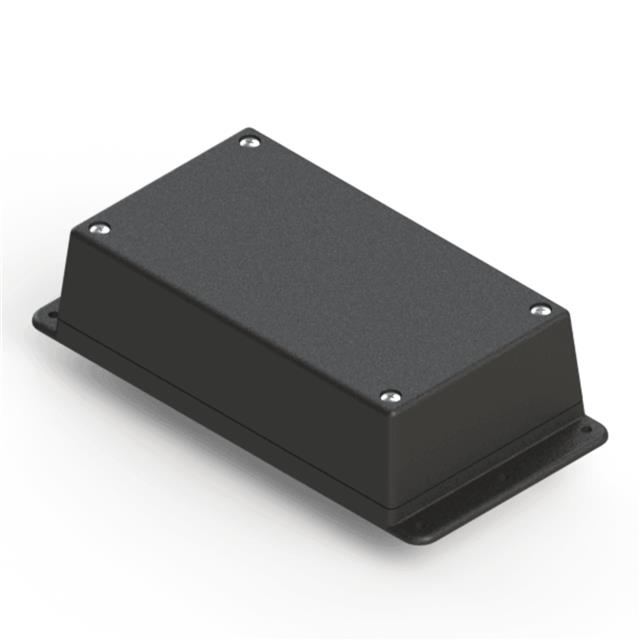

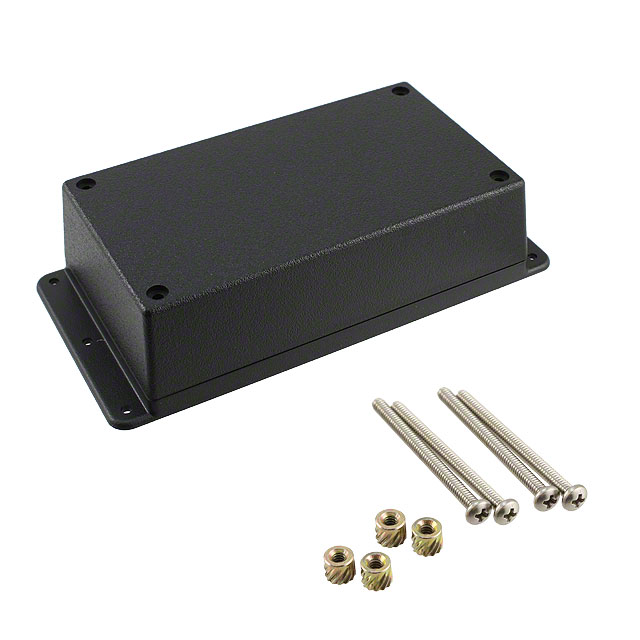

Serpac WM052R,BK	110.68 g	0.244 lb	IP40 NEMA 1	1.6 "	40.64 mm	5.62 "	142.75 mm	82.55 mm	3.25 "	Cover Included	ABS Plastic	18.3 in²	118 cm²	2.54 mm	0.1 in	Front Access Mounting Flange PCB Supports Wall Mount	UL94 HB	Black	Box	118 cm˛	18.3 in˛

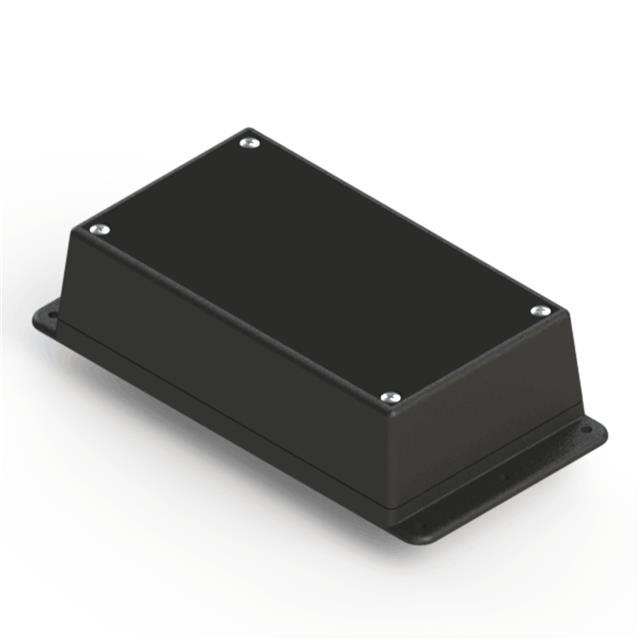

Serpac WM052RI,BK	110.68 g	0.244 lb	IP40 NEMA 1	1.6 "	40.64 mm	5.62 "	142.75 mm	82.55 mm	3.25 "	Cover Included	ABS Plastic	18.3 in²	118 cm²	2.54 mm	0.1 in	Front Access Mounting Flange PCB Supports Wall Mount	UL94 HB	Black	Box	118 cm˛	18.3 in˛

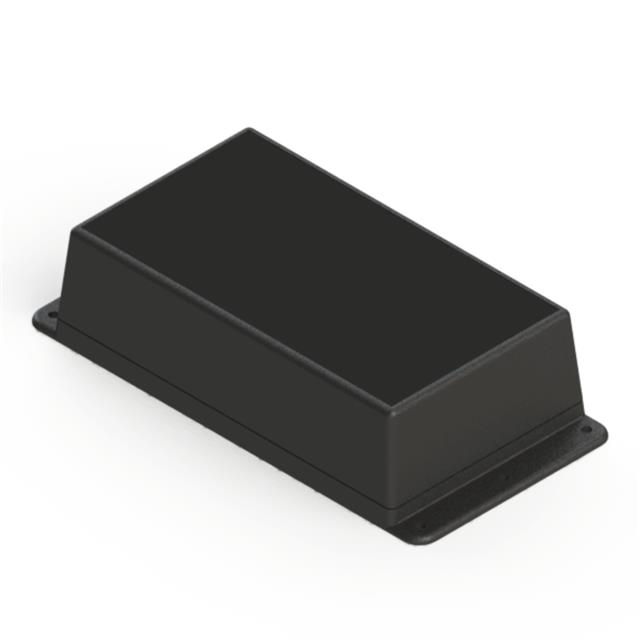

Serpac WM052I,BK	110.68 g	0.244 lb	IP40 NEMA 1	1.6 "	40.64 mm	5.62 "	142.75 mm	82.55 mm	3.25 "	Cover Included	ABS Plastic	18.3 in²	118 cm²	2.54 mm	0.1 in	Mounting Flange PCB Supports Wall Mount	UL94 HB	Black	Box

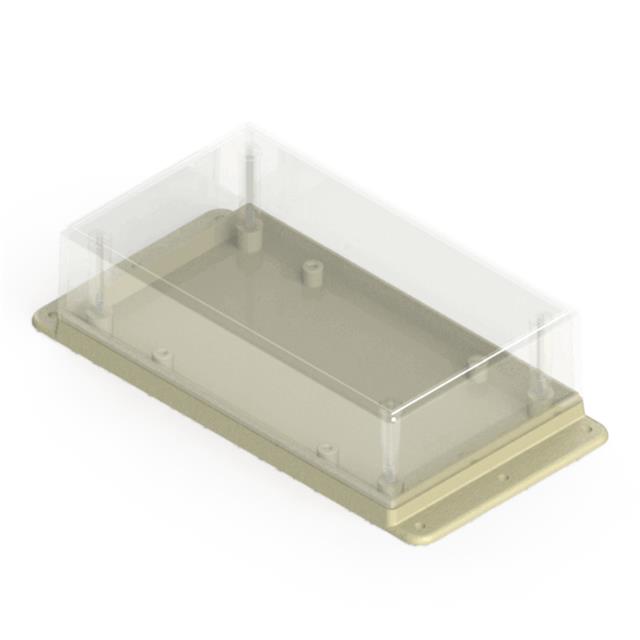

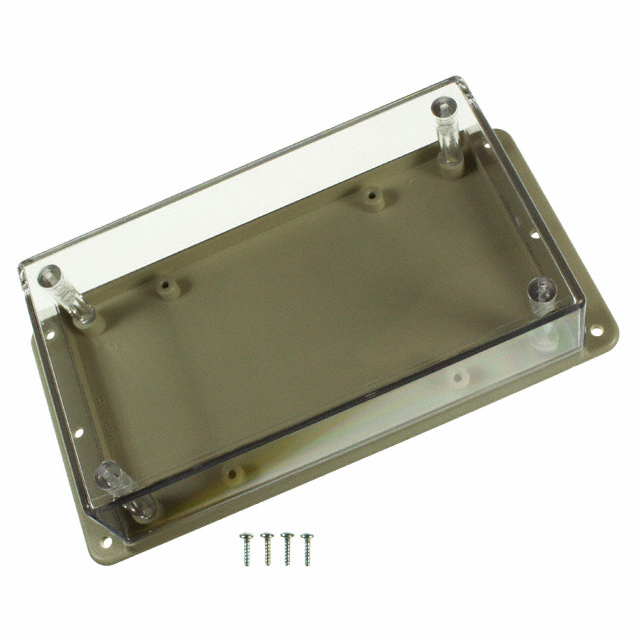

Serpac WM052C,AL	110.68 g	0.244 lb	IP40 NEMA 1	1.6 "	40.64 mm	5.62 "	142.75 mm	82.55 mm	3.25 "	Cover Included	Plastic Polycarbonate	18.3 in²	118 cm²	2.54 mm	0.1 in	Mounting Flange PCB Supports Wall Mount			Box

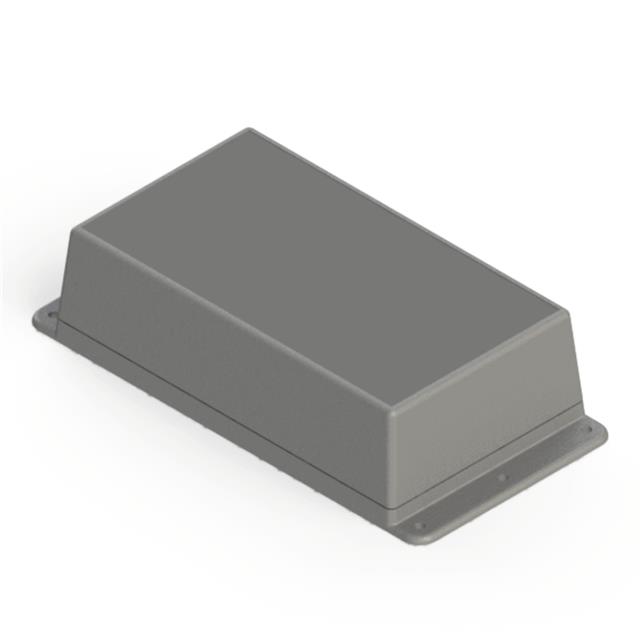

Serpac WM052I,GY	110.68 g	0.244 lb	IP40 NEMA 1	1.6 "	40.64 mm	5.62 "	142.75 mm	82.55 mm	3.25 "	Cover Included	ABS Plastic	18.3 in²	118 cm²	2.54 mm	0.1 in	Mounting Flange PCB Supports Wall Mount	UL94 HB	Gray	Box

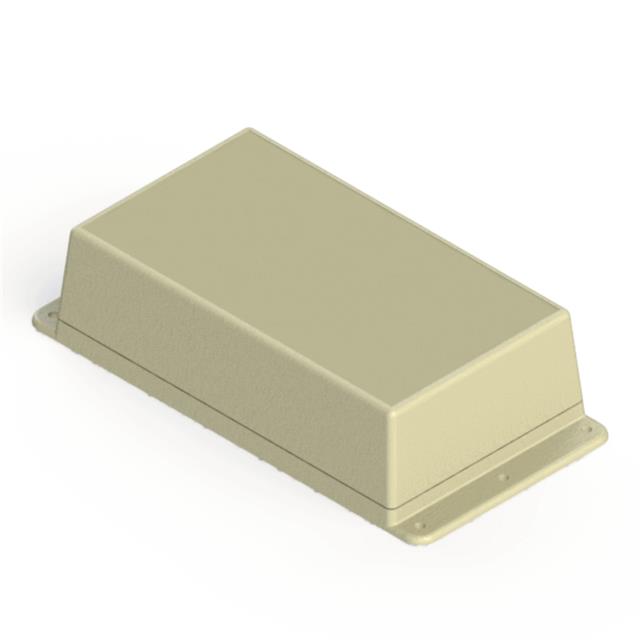

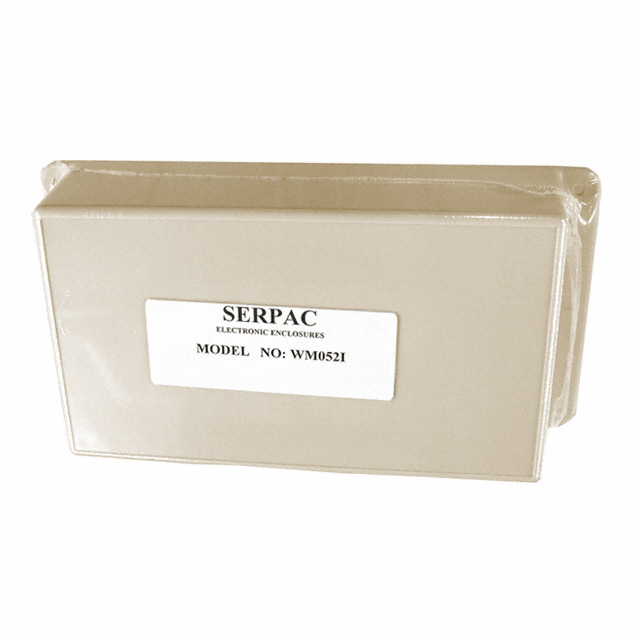

Serpac WM052I,AL	110.68 g	0.244 lb	IP40 NEMA 1	1.6 "	40.64 mm	5.62 "	142.75 mm	82.55 mm	3.25 "	Cover Included	ABS Plastic	18.3 in²	118 cm²	2.54 mm	0.1 in	Mounting Flange PCB Supports Wall Mount	UL94 HB	Almond	Box

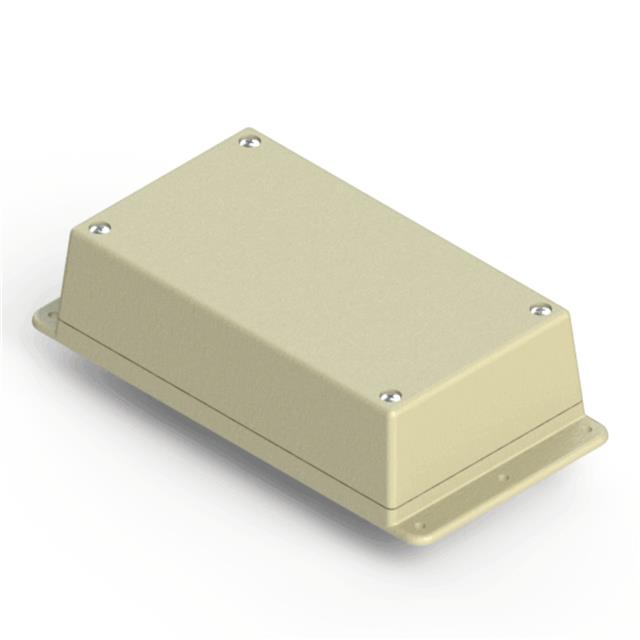

Serpac WM052R,AL	110.68 g	0.244 lb	IP40 NEMA 1	1.6 "	40.64 mm	5.62 "	142.75 mm	82.55 mm	3.25 "	Cover Included	ABS Plastic	18.3 in²	118 cm²	2.54 mm	0.1 in	Front Access Mounting Flange PCB Supports Wall Mount	UL94 HB	Almond	Box	118 cm˛	18.3 in˛

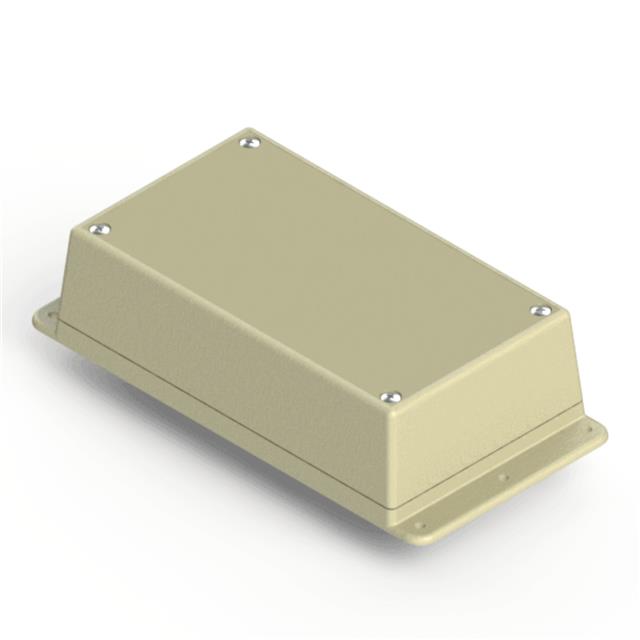

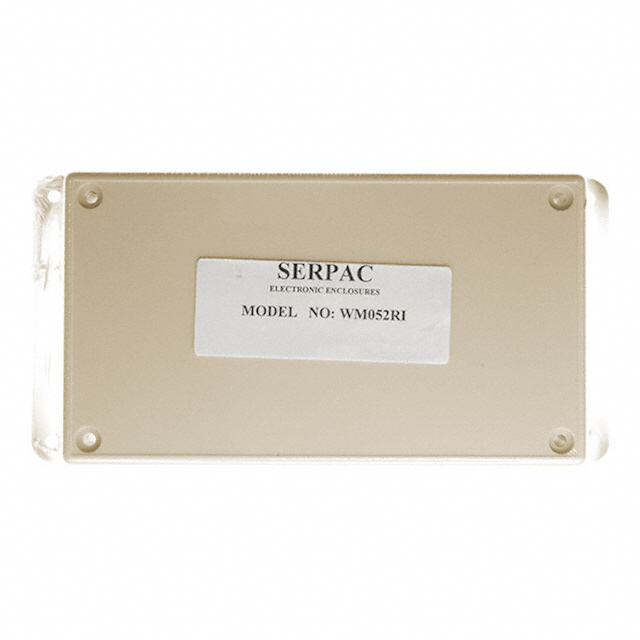

Serpac WM052RI,AL	110.68 g	0.244 lb	IP40 NEMA 1	1.6 "	40.64 mm	5.62 "	142.75 mm	82.55 mm	3.25 "	Cover Included	ABS Plastic	18.3 in²	118 cm²	2.54 mm	0.1 in	Front Access Mounting Flange PCB Supports Wall Mount	UL94 HB	Almond	Box

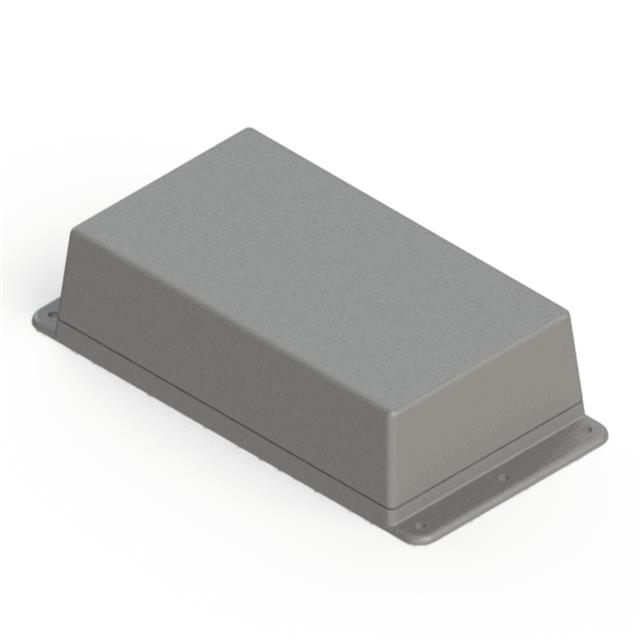

Serpac WM052,GY	110.68 g	0.244 lb	IP40 NEMA 1	1.6 "	40.64 mm	5.62 "	142.75 mm	82.55 mm	3.25 "	Cover Included	ABS Plastic	18.3 in²	118 cm²	2.54 mm	0.1 in	Mounting Flange PCB Supports Wall Mount	UL94 HB	Gray	Box
