64128 Series

Catalog

DISPLAY LCD 128X64 TRANSFL

Part	Dot Size Height	Dot Size Width	Backlight Type	Backlight Color	Viewing Area Height	Viewing Area Width	Display Mode	Dot Pixels (Horizontal)	Dot Pixels (Vertical)	Display Type	Interface	Controller Type

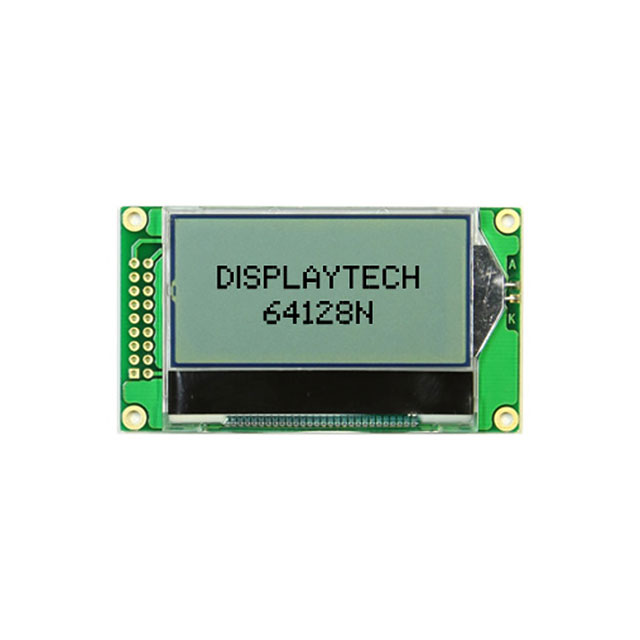

Displaytech 64128N FCBW-3LP	0.33 mm	0.33 mm	LED	White	25 mm	50 mm	Transflective	128 pixels	64 pixels	FSTN - Film Super-Twisted Nematic

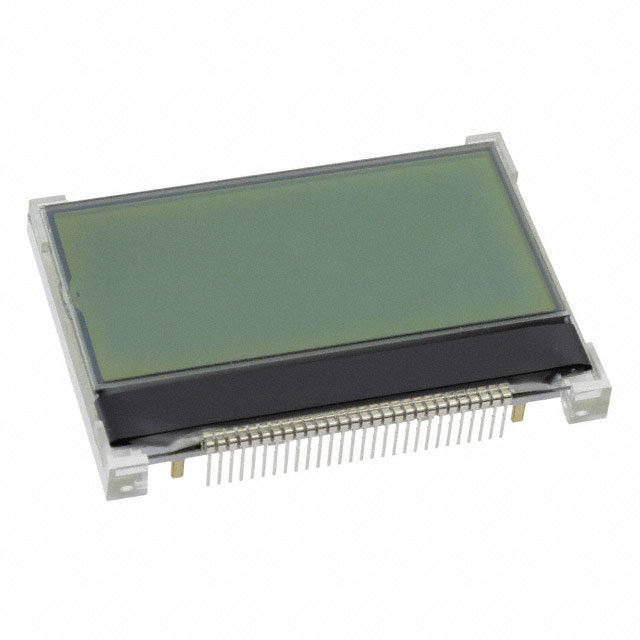

Displaytech 64128K FC BW-3	0.33 mm	0.33 mm	LED	White	25 mm	50 mm	Transflective	128 pixels	64 pixels	FSTN - Film Super-Twisted Nematic

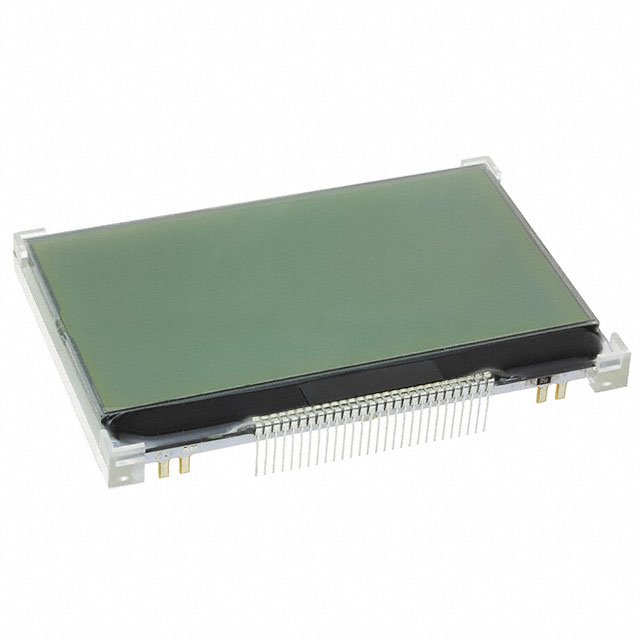

Displaytech 64128M FC BW-RGB	0.48 mm	0.48 mm	LED	Blue Green Red	40 mm	70 mm	Transflective	128 pixels	64 pixels	FSTN - Film Super-Twisted Nematic

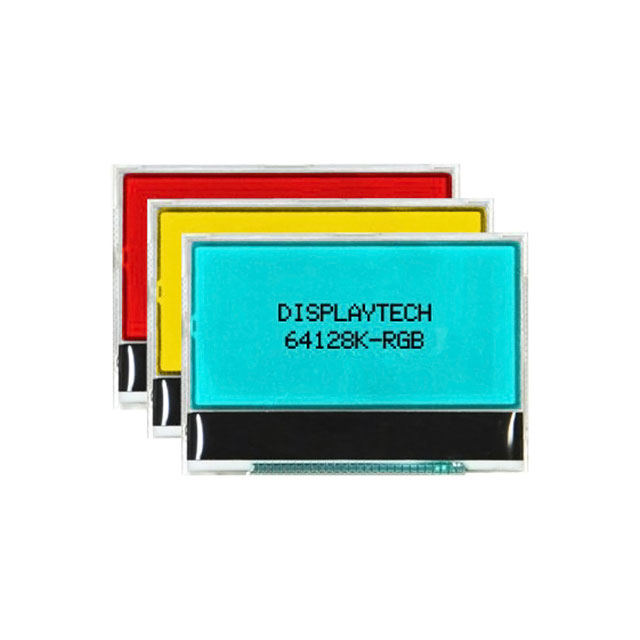

Displaytech 64128K FC BW-RGB	0.33 mm	0.33 mm	LED	Blue Green Red	25 mm	50 mm	Transflective	128 pixels	64 pixels	FSTN - Film Super-Twisted Nematic	Parallel SPI	ST7565R

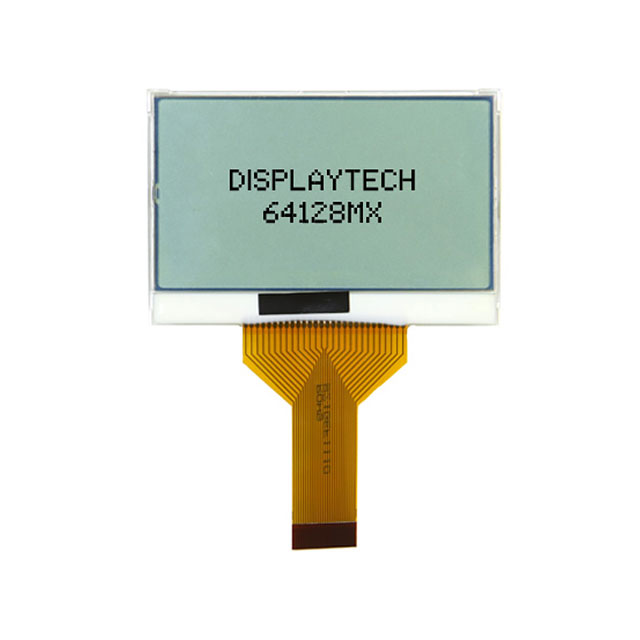

Displaytech 64128MX FC BW-3	0.48 mm	0.48 mm	LED	White	40 mm	70 mm	Transflective	128 pixels	64 pixels	FSTN - Film Super-Twisted Nematic

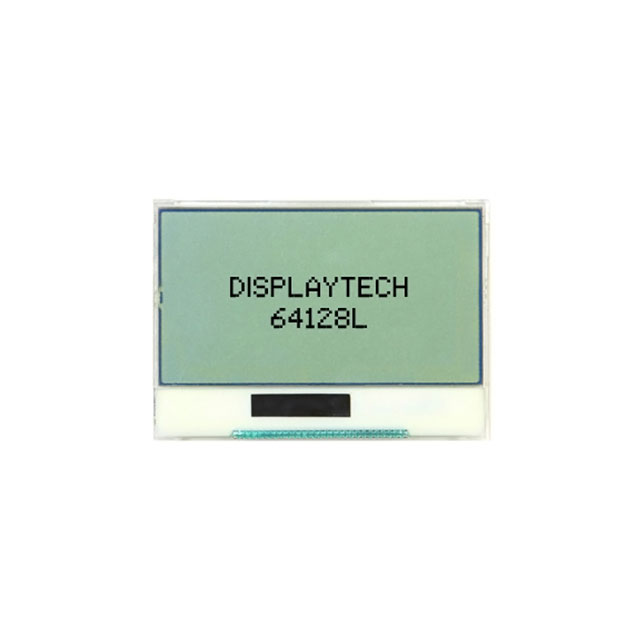

Displaytech 64128L FC BW-3	0.4 mm	0.4 mm	LED	White	33.1 mm	60.6 mm	Transflective	128 pixels	64 pixels	FSTN - Film Super-Twisted Nematic

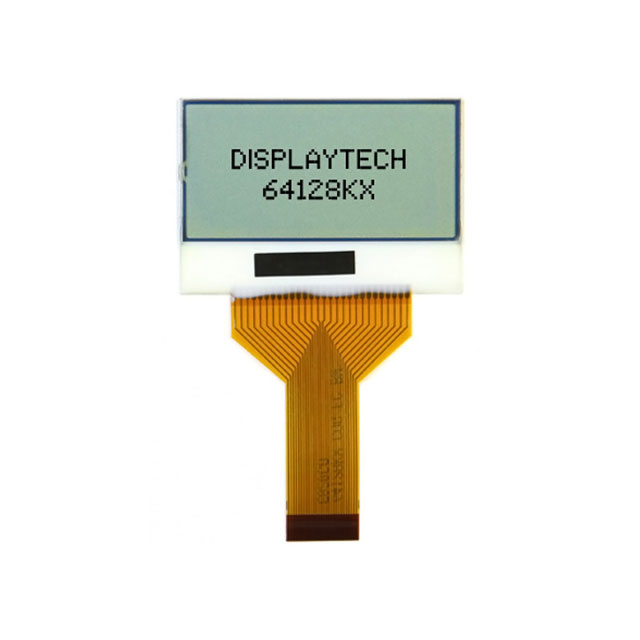

Displaytech 64128KX FC BW-3	0.33 mm	0.33 mm	LED	White	25 mm	50 mm	Transflective	128 pixels	64 pixels	FSTN - Film Super-Twisted Nematic

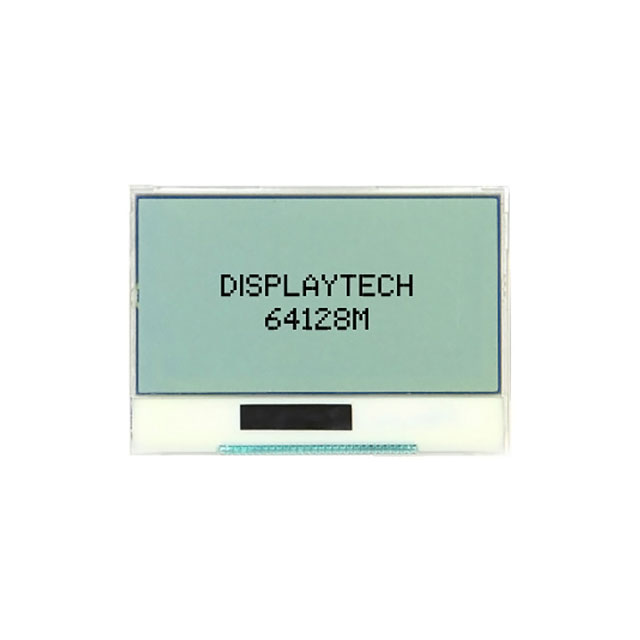

Displaytech 64128M FC BW-3	0.48 mm	0.48 mm	LED	White	40 mm	70 mm	Transflective	128 pixels	64 pixels	FSTN - Film Super-Twisted Nematic
