AOTS21115 Series

Catalog

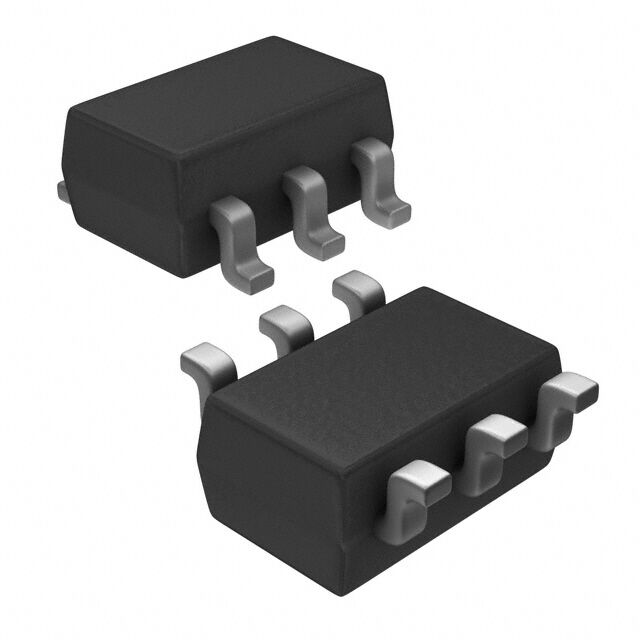

MOSFET P-CH 20V 6.6A 6TSOP

Part	Power Dissipation (Max)	Rds On (Max) @ Id, Vgs	Operating Temperature [Max]	Operating Temperature [Min]	Input Capacitance (Ciss) (Max) @ Vds [Max]	Drain to Source Voltage (Vdss)	Technology	Gate Charge (Qg) (Max) @ Vgs [Max]	FET Type	Current - Continuous Drain (Id) @ 25°C	Supplier Device Package	Package / Case	Vgs(th) (Max) @ Id	Mounting Type	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Vgs (Max) [Max]
Alpha & Omega Semiconductor Inc. AOTS21115C	2.5 W	40 mOhm	150 °C	-55 °C	930 pF	20 V	MOSFET (Metal Oxide)	17 nC	P-Channel	6.6 A	6-TSOP	SC-74 SOT-457	950 mV	Surface Mount	1.8 V	4.5 V	8 V
