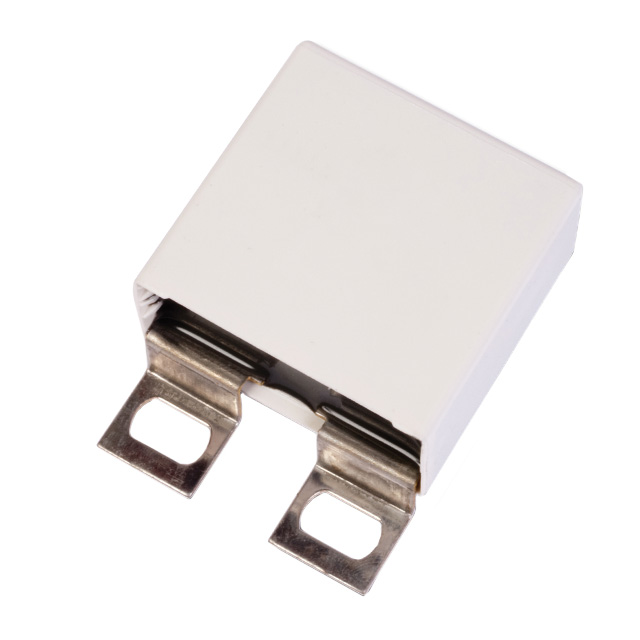

C4BSMB Series
Manufacturer: KEMET
Beta
⌘K

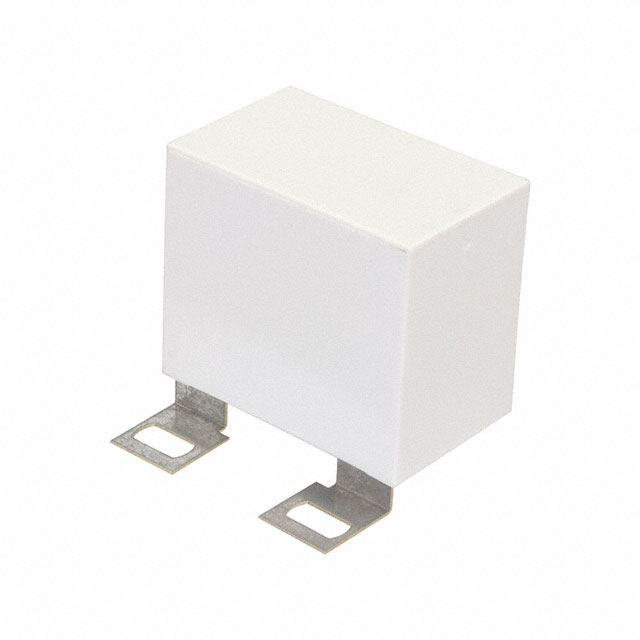

CAP FILM 2UF 5% 850VDC SCREW
| Part | Capacitance | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Tolerance | Package / Case | Mounting Type | Voltage Rating - DC | Applications | Termination | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Lead Spacing | Lead Spacing | Voltage Rating - AC | ESR (Equivalent Series Resistance) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 2 µF | 85 °C | -40 C | Polypropylene (PP) Metallized | 5 % | Rectangular Box | Chassis Mount | 850 V | DC Filtering DC Link Snubber | Screw Terminals | ||||||||||
 KEMET | 5 µF | 85 °C | -40 C | Polypropylene (PP) Metallized | 5 % | Rectangular Box | Chassis Mount | 850 V | DC Filtering DC Link Snubber | Screw Terminals | 57.5 mm | 1.378 in | 35 mm | 2.264 in | 1.457 " | 37 mm | 550 V | 1.9 mOhm | 1.969 in | 50 mm |
