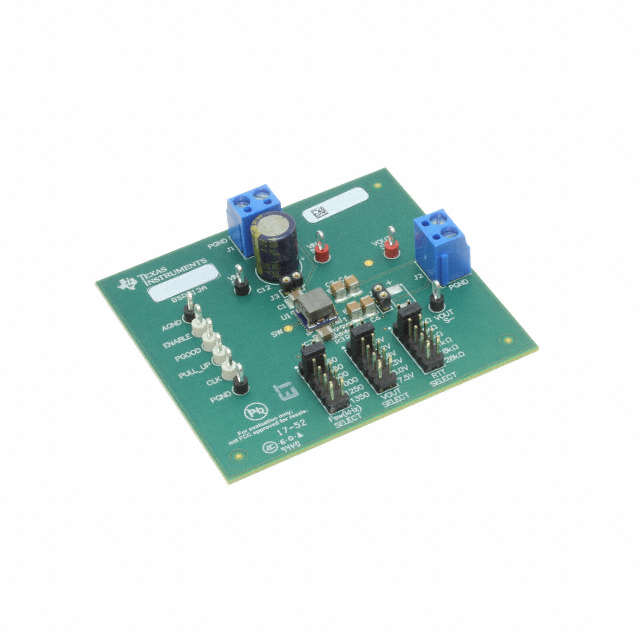

TPSM84424 Series

4.5V to 17V Input, 0.6V-10V Output, 4A Power Module in Compact 7.5x7.5mm Footprint

Catalog

4.5V to 17V Input, 0.6V-10V Output, 4A Power Module in Compact 7.5x7.5mm Footprint

Part	Applications	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Package / Case	Voltage - Input (Min) [Min]	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Voltage - Input (Max) [Max]	Number of Outputs	Features	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Mounting Type	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]
Texas Instruments TPSM84424MOLR	ITE (Commercial)	Non-Isolated PoL Module	7.5 mm	0.3 "	0.21 in	7.5 mm	0.3 in	5.4 mm	24-SMD Module	4.5 V	7.5	7.5	24-QFM	17 V	1	OCP OTP UVLO	0.6 V	10 V	Surface Mount	94 %	-40 °C	105 ░C	4 A

Catalog

4.5V to 17V Input, 0.6V-10V Output, 4A Power Module in Compact 7.5x7.5mm Footprint

Key Features

• Integrated Inductor Power Solution7.5 mm × 7.5 mm × 5.3 mm QFM PackageAll Pins Accessible from Package PerimeterInput Voltage Range: 4.5 V to 17 VWide-Output Voltage Range: 0.6 V to 10 VEfficiencies up to 96%Adjustable Fixed Switching Frequency(200 kHz to 1.6 MHz)Allows Synchronization to an External ClockUltra-Fast Load Step Response (TurboTrans™)Power Good OutputMeets EN55011 Class B Radiated EMI LimitsOperating Ambient Range: –40°C to +105°COperating IC Junction Range: –40°C to +150°CCreate a Custom Design Using the TPSM84424 With theWEBENCH®Power DesignerIntegrated Inductor Power Solution7.5 mm × 7.5 mm × 5.3 mm QFM PackageAll Pins Accessible from Package PerimeterInput Voltage Range: 4.5 V to 17 VWide-Output Voltage Range: 0.6 V to 10 VEfficiencies up to 96%Adjustable Fixed Switching Frequency(200 kHz to 1.6 MHz)Allows Synchronization to an External ClockUltra-Fast Load Step Response (TurboTrans™)Power Good OutputMeets EN55011 Class B Radiated EMI LimitsOperating Ambient Range: –40°C to +105°COperating IC Junction Range: –40°C to +150°CCreate a Custom Design Using the TPSM84424 With theWEBENCH®Power Designer

Description

The TPSM84424 power module is an easy-to-use integrated power supply that combines a 4-A DC/DC converter with power MOSFETs, a shielded inductor and passives into a small form factor, QFM package. This power solution allows as few as six external components while maintaining the ability to adjust key parameters to meet specific design requirements. Ultra-fast transient response can be achieved by use of the TurboTrans™ feature. TurboTrans allows the transient response to be optimized for reduced output voltage deviation with less required output capacitance. The 7.5 mm × 7.5 mm × 5.3 mm, 24-pin, QFM package is easy to solder to a printed circuit board and has excellent power dissipation capability. The TPSM84424 offers flexibility with many features including power good, programmable UVLO, tracking, prebias start-up, as well as overcurrent and overtemperature protection making it ideal for powering a wide range of devices and systems. The TPSM84424 power module is an easy-to-use integrated power supply that combines a 4-A DC/DC converter with power MOSFETs, a shielded inductor and passives into a small form factor, QFM package. This power solution allows as few as six external components while maintaining the ability to adjust key parameters to meet specific design requirements. Ultra-fast transient response can be achieved by use of the TurboTrans™ feature. TurboTrans allows the transient response to be optimized for reduced output voltage deviation with less required output capacitance. The 7.5 mm × 7.5 mm × 5.3 mm, 24-pin, QFM package is easy to solder to a printed circuit board and has excellent power dissipation capability. The TPSM84424 offers flexibility with many features including power good, programmable UVLO, tracking, prebias start-up, as well as overcurrent and overtemperature protection making it ideal for powering a wide range of devices and systems.
