1420A Series

Catalog

MULTI-PAIR 6COND 24AWG

Part	Shield Coverage	Shield Material	Length	Length	Number of Conductors	Features	Conductor Material	Ratings	Jacket (Insulation) Material	Operating Temperature [Max]	Operating Temperature [Min]	Usage	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation

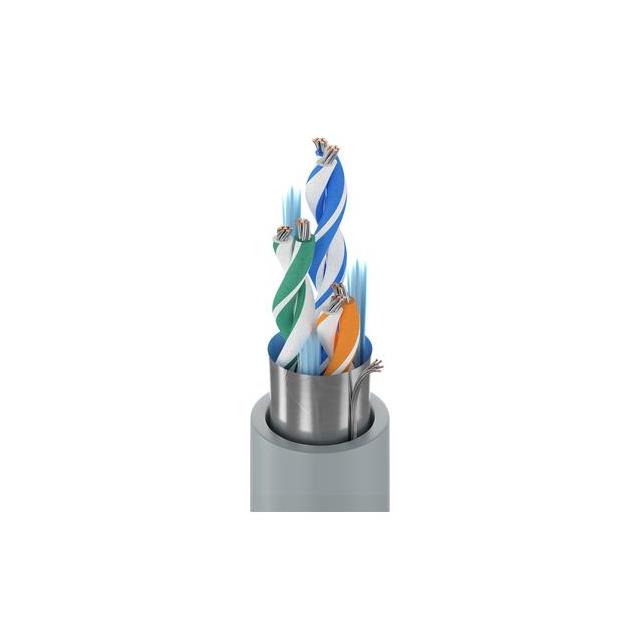

Belden Inc. 1420A 0601000	100 %	Aluminum	304.8 m	1000 ft	6	Drain Wire	Copper Tinned	UL Style 2919	Poly-Vinyl Chloride (PVC)	80 °C	-20 ░C	Computer	Multi-Pair	0.035 in	0.889 mm	Chrome	7	32 AWG	24 AWG	Foil	6.63 mm	0.261 in	Foam Polyethylene (FPE)

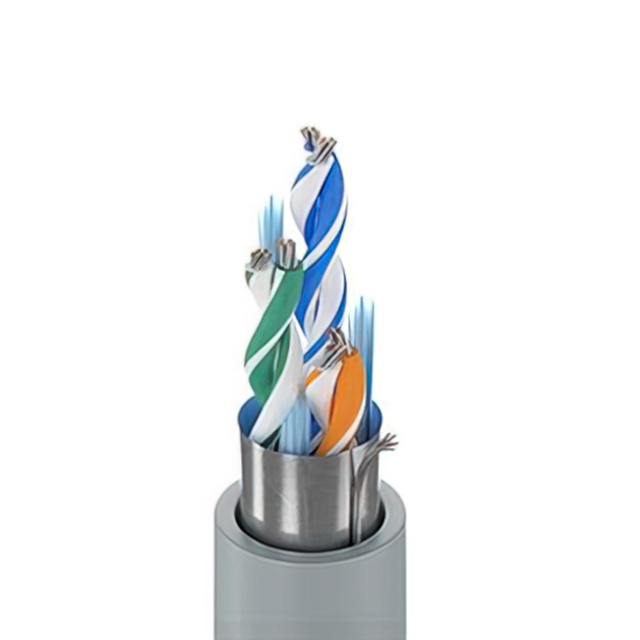

Belden Inc. 1420A 06010000	100 %	Aluminum	3048 m	10000 ft	6	Drain Wire	Copper Tinned	UL Style 2919	Poly-Vinyl Chloride (PVC)	80 °C	-20 ░C	Computer	Multi-Pair	0.035 in	0.889 mm	Chrome	7	32 AWG	24 AWG	Foil	6.63 mm	0.261 in	Foam Polyethylene (FPE)
Belden Inc. 1420A 060500	100 %	Aluminum	152.4 m	500 ft	6	Drain Wire	Copper Tinned	UL Style 2919	Poly-Vinyl Chloride (PVC)	80 °C	-20 ░C	Computer	Multi-Pair	0.035 in	0.889 mm	Chrome	7	32 AWG	24 AWG	Foil	6.63 mm	0.261 in	Foam Polyethylene (FPE)
