ACC02E16 Series
Manufacturer: Amphenol Industrial Operations
Beta
⌘K

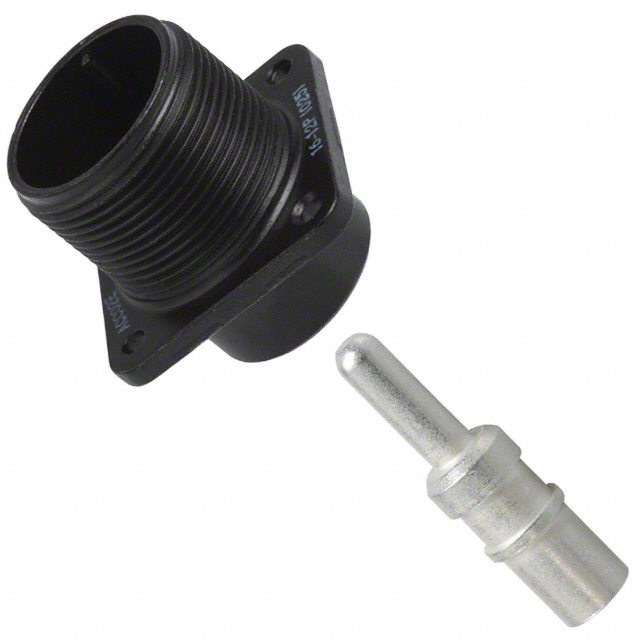

CONN RCPT MALE 7POS GOLD CRIMP
| Part | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Cable Opening [diameter] | Cable Opening [diameter] | Color | Applications | Mounting Feature | Operating Temperature [Min] | Operating Temperature [Max] | Shell Finish | Shell Size - Insert | Shielding | Termination | Orientation | Primary Material | Contact Material | Qualification | Ingress Protection | Contact Finish - Mating | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations | 7 | 30 Áin | 0.76 Ám | Male Pins Receptacle | 22.22 mm | 0.875 in | Olive Drab | Automotive Industrial | Flange | -55 °C | 125 °C | Olive Drab Cadmium | 16S-1 | Unshielded | Crimp | N | Metal | Copper Alloy | MIL-5015 Derivative | Environment Resistant | Gold | Aluminum |
 Amphenol Industrial Operations | 1 | Male Pins Receptacle | 22.22 mm | 0.875 in | Black | Automotive Industrial | Flange | -55 °C | 125 °C | Black Zinc Cobalt | 16-12 | Crimp | N | Metal | Copper Alloy | MIL-5015 Derivative | Environment Resistant | Silver | Aluminum | |||
Amphenol Industrial Operations | 7 | 35.4 µin | 0.9 µm | Male Pins Receptacle | 22.22 mm | 0.875 in | Olive Drab | Automotive Industrial | Flange | -55 °C | 125 °C | Olive Drab Cadmium | 16S-1 | Unshielded | Crimp | N | Metal | Copper Alloy | MIL-5015 Derivative | Environment Resistant | Gold | Aluminum |
Amphenol Industrial Operations | 7 | 30 Áin | 0.76 Ám | Male Pins Receptacle | 22.22 mm | 0.875 in | Olive Drab | Automotive Industrial | Flange | -55 °C | 125 °C | Olive Drab Cadmium | 16S-1 | Unshielded | Crimp | Z | Metal | Copper Alloy | MIL-5015 Derivative | Environment Resistant | Gold | Aluminum |
