501951 Series
Manufacturer: Molex
Beta
⌘K

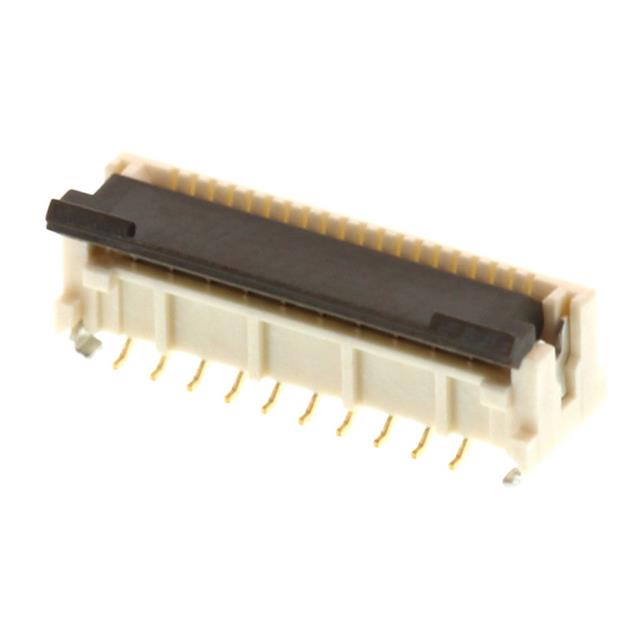

EASY-ON FFC/FPC CONNECTOR, 0.50MM PITCH, V-FLIP SERIES, VERTICAL, 4.05MM HEIGHT, 70 CIRCUITS, PHOSPHOR BRONZE, GOLD PLATING
| Part | Actuator Color | Housing Color | Mating Cycles | Current Rating (Amps) | Material Flammability Rating | Termination | Height Above Board | Height Above Board | Voltage Rating | FFC, FCB Thickness | Connector/Contact Type | Cable End Type | Contact Finish | Locking Feature | Number of Positions | Contact Material | Features | Pitch | Pitch | Flat Flex Type | Mounting Type | Actuator Material | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Black | White | 20 | 0.4 A | UL94 V-0 | Solder | 0.171 in | 4.35 mm | 50 V | 0.3 mm | Contacts Top | Straight | Gold | Flip Lock | 70 | Phosphor Bronze | Solder Retention | 0.02 " | 0.5 mm | FPC | Surface Mount | Glass Filled Nylon Polyamide (PA) | Glass Filled Liquid Crystal Polymer (LCP) | 85 °C | -40 C |
 Molex | |||||||||||||||||||||||||
 Molex | Black | White | 20 | 0.5 A | UL94 V-0 | Solder | 0.159 in | 4.04 mm | 50 V | 0.3 mm | Contacts Vertical - 1 Sided | Straight Tapered | Gold | Flip Lock | 48 | Copper Alloy | Solder Retention | 0.02 " | 0.5 mm | FFC FPC | Surface Mount | Glass Filled Nylon Polyamide (PA) | Glass Filled Liquid Crystal Polymer (LCP) | 125 °C | -40 C |
 Molex | UL94 V-0 | Solder | 0.159 in | 4.04 mm | 50 V | 0.3 mm | Contacts Vertical - 1 Sided | Straight | Gold | Flip Lock | 20 | Phosphor Bronze | Solder Retention | 0.02 " | 0.5 mm | FFC FPC | Surface Mount | Glass Filled Nylon Polyamide (PA) | Glass Filled Liquid Crystal Polymer (LCP) | 85 °C | -40 C | ||||
 Molex | Black | White | 20 | 0.5 A | UL94 V-0 | Solder | 0.159 in | 4.04 mm | 50 V | 0.3 mm | Contacts Vertical - 1 Sided | Straight | Gold | Flip Lock | 11 | Copper Alloy | Solder Retention | 0.02 " | 0.5 mm | FFC FPC | Right Angle Surface Mount | Glass Filled Nylon Polyamide (PA) | Glass Filled Liquid Crystal Polymer (LCP) | 125 °C | -40 C |
Molex | Black | White | 20 | 0.5 A | UL94 V-0 | Solder | 0.159 in | 4.04 mm | 50 V | 0.3 mm | Contacts Vertical - 1 Sided | Straight | Gold | Flip Lock | 55 | Copper Alloy | Solder Retention | 0.02 " | 0.5 mm | FFC FPC | Right Angle Surface Mount | Glass Filled Nylon Polyamide (PA) | Glass Filled Liquid Crystal Polymer (LCP) | 125 °C | -40 C |
 Molex | UL94 V-0 | Solder | 0.159 in | 4.04 mm | 50 V | 0.3 mm | Contacts Vertical - 1 Sided | Straight | Gold | Flip Lock | 10 | Phosphor Bronze | Solder Retention | 0.02 " | 0.5 mm | FFC FPC | Surface Mount | Glass Filled Nylon Polyamide (PA) | Glass Filled Liquid Crystal Polymer (LCP) | 85 °C | -40 C | ||||
Molex | Black | White | 20 | 0.5 A | UL94 V-0 | Solder | 0.159 in | 4.04 mm | 50 V | 0.3 mm | Contacts Vertical - 1 Sided | Straight Tapered | Gold | Flip Lock | 28 | Copper Alloy | Solder Retention | 0.02 " | 0.5 mm | FFC FPC | Surface Mount | Glass Filled Nylon Polyamide (PA) | Glass Filled Liquid Crystal Polymer (LCP) | 125 °C | -40 C |
Molex | Black | White | 20 | 0.5 A | UL94 V-0 | Solder | 0.159 in | 4.04 mm | 50 V | 0.3 mm | Contacts Vertical - 1 Sided | Straight Tapered | Gold | Flip Lock | 51 | Copper Alloy | Solder Retention | 0.02 " | 0.5 mm | FFC FPC | Surface Mount | Glass Filled Nylon Polyamide (PA) | Glass Filled Liquid Crystal Polymer (LCP) | 125 °C | -40 C |
Molex | UL94 V-0 | Solder | 0.159 in | 4.04 mm | 50 V | 0.3 mm | Contacts Vertical - 1 Sided | Straight Tapered | Gold | Flip Lock | 19 | Phosphor Bronze | Solder Retention | 0.02 " | 0.5 mm | FFC FPC | Surface Mount | Glass Filled Nylon Polyamide (PA) | Glass Filled Liquid Crystal Polymer (LCP) | 85 °C | -40 C |
