FDMF5821 Series

Catalog

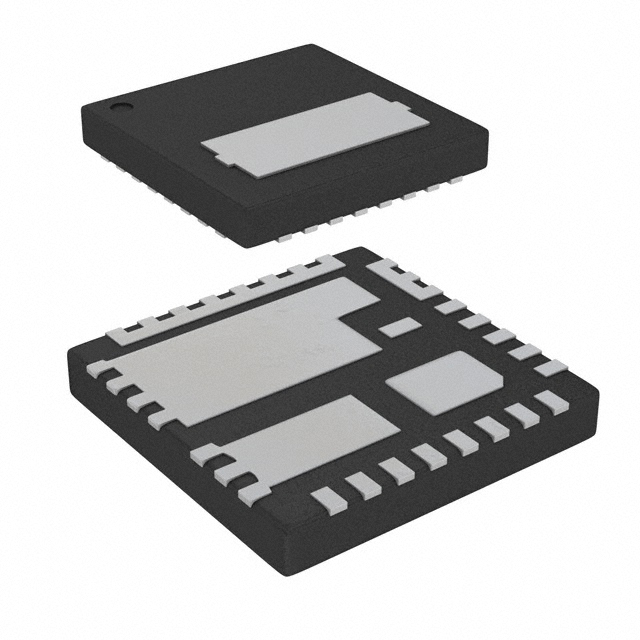

DRIVER 7A 1-OUT HIGH SIDE/LOW SIDE 31-PIN QFN EP T/R

Part	Fault Protection	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Interface	Package / Case	Features	Operating Temperature [Min]	Operating Temperature [Max]	Load Type	Voltage - Load [Max]	Voltage - Load [Min]	Current - Output / Channel	Rds On (Typ)	Supplier Device Package	Technology	Applications
ON Semiconductor FDMF5821DC	Over Temperature UVLO	Surface Mount	4.5 V	5.5 V	PWM	31-PowerWFQFN	Bootstrap Circuit Latch Function Status Flag	-40 °C	125 ¯C	Inductive	16 V	4.5 V	60 A	470 mOhm 680 mOhm	31-PQFN (5x5)	UMOS	Synchronous Buck Converters
ON Semiconductor FDMF5821	Over Temperature UVLO	Surface Mount	4.5 V	5.5 V	PWM	31-PowerWFQFN	Bootstrap Circuit Latch Function Status Flag	-40 °C	125 ¯C	Inductive	16 V	4.5 V	60 A	470 mOhm 680 mOhm	31-PQFN (5x5)	UMOS	Synchronous Buck Converters
