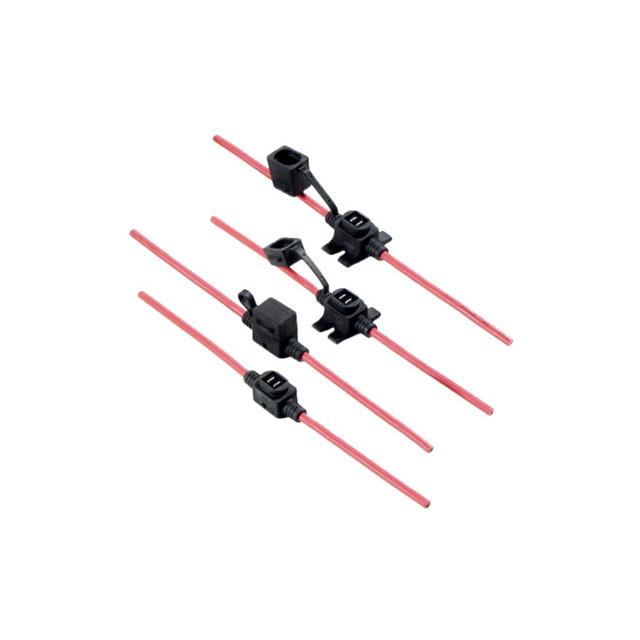

0FHJ2001G Series

Holdr, JCase w/o cover 10AWG mount brkt

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Holdr, JCase w/o cover 10AWG mount brkt

Part	Mounting Type	For Use With/Related Products	Number of Circuits	Current Rating (Amps)	Fuse Size [x]	Fuse Size [z]	Fuse Size [y]	Fuse Size [z]	Fuse Size [y]	Fuse Size [x]	Termination Style	Fuseholder Type
Littelfuse/Commercial Vehicle Products 0FHJ2001G	Free Hanging (In-Line)	Auto Link	1	40 A	14.1 mm	27 mm	12 mm	1.063 in	0.472 in	0.555 in	Wire Leads	Holder

Catalog

Holdr, JCase w/o cover 10AWG mount brkt

Key Features

• Compatible with JCASE® fuses up to 40 amps (fuse sold separately)

• Integrated mounting bracket for simple installation

• 4" (102 mm) 10 AWG GXL leads with red insulation

• 0.35" (9 mm) end strips

Description

Easily install a JCASE® cartridge fuse up to 40 amps (sold separately) using the JCASE® FHJ Series 32V In-Line Cartridge Fuse Holder. The JCASE® FHJ Series fuse holder features black TPV housing with a UL 94 V-0 flammability rating and comes with tin-plated copper alloy contacts for reliable fuse installation. This model of the in-line fuse holder (0FHJ2001G) features red 10 AWG GXL leads and a built-in mounting bracket for simple installation.
