622-M15 Series
Manufacturer: EDAC Inc.
Beta
⌘K
EDAC RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES
| Part | Color | Contact Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Mounting Type | Material Flammability Rating | Number of Positions | Number of Rows [custom] | Connector Type | Connector Style | Shell Size, Connector Layout | Features | Contact Finish Thickness | Termination | Flange Feature | Current Rating (Amps) | Contact Finish | Backset Spacing | Backset Spacing | Flange Feature | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | White | Copper Alloy | Polyamide (PA6T) Nylon 6T | -55 C | 125 °C | Signal | Board Edge Right Angle Through Hole | UL94 V-0 | 15 | 2 | Receptacle Female Sockets | D-Sub | 2 | Board Lock Mounting Brackets Shielded | Flash | Solder | 4-40 | 5 A | Gold | 7.2 mm | 0.283 in | ||||

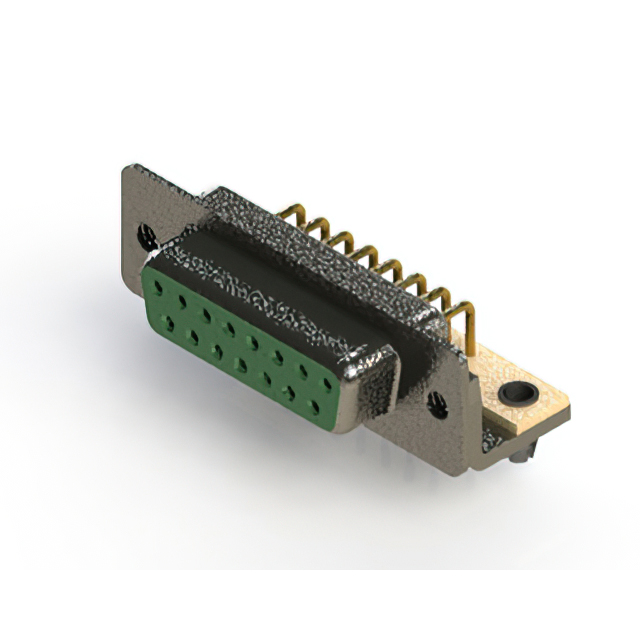

 EDAC Inc. | Green | Copper Alloy | Polyamide (PA6T) Nylon 6T | -55 C | 125 °C | Signal | Board Edge Right Angle Through Hole | UL94 V-0 | 15 | 2 | Receptacle Female Sockets | D-Sub | 2 | Mounting Brackets Shielded | Solder | Housing/Shell | 5 A | Gold | 7.2 mm | 0.283 in | 4-40 | Nickel Plated Steel | 30 Áin | 0.76 Ám | |

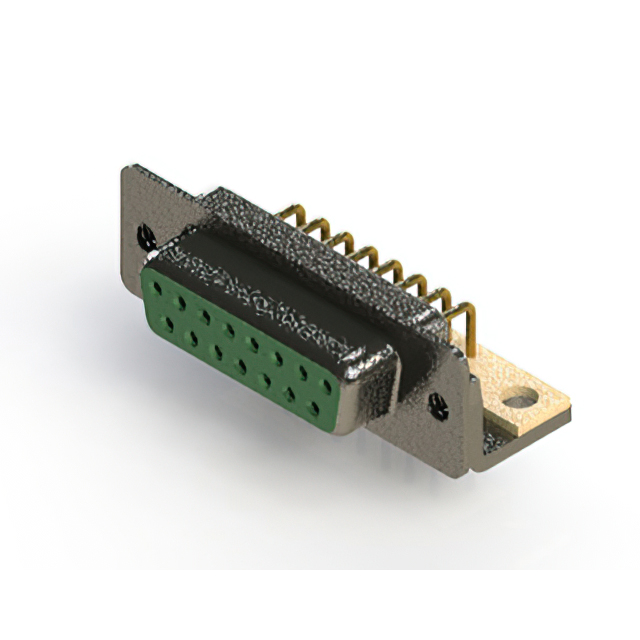

 EDAC Inc. | Green | Copper Alloy | Polyamide (PA6T) Nylon 6T | -55 C | 125 °C | Signal | Board Edge Right Angle Through Hole | UL94 V-0 | 15 | 2 | Receptacle Female Sockets | D-Sub | 2 | Shielded | Solder | Housing/Shell | 5 A | Gold | 7.2 mm | 0.283 in | 4-40 | 15 µin | 0.38 µm | ||
 EDAC Inc. | Green | Copper Alloy | Polyamide (PA6T) Nylon 6T | -55 C | 125 °C | Signal | Board Edge Right Angle Through Hole | UL94 V-0 | 15 | 2 | Receptacle Female Sockets | D-Sub | 2 | Board Lock Mounting Brackets Shielded | Solder | Housing/Shell | 5 A | Gold | 7.2 mm | 0.283 in | 4-40 | Nickel Plated Steel | 30 Áin | 0.76 Ám | |
 EDAC Inc. | Green | Copper Alloy | Polyamide (PA6T) Nylon 6T | -55 C | 125 °C | Signal | Board Edge Right Angle Through Hole | UL94 V-0 | 15 | 2 | Receptacle Female Sockets | D-Sub | 2 | Board Lock Mounting Brackets Shielded | Flash | Solder | 4-40 | 5 A | Gold | 7.2 mm | 0.283 in | ||||

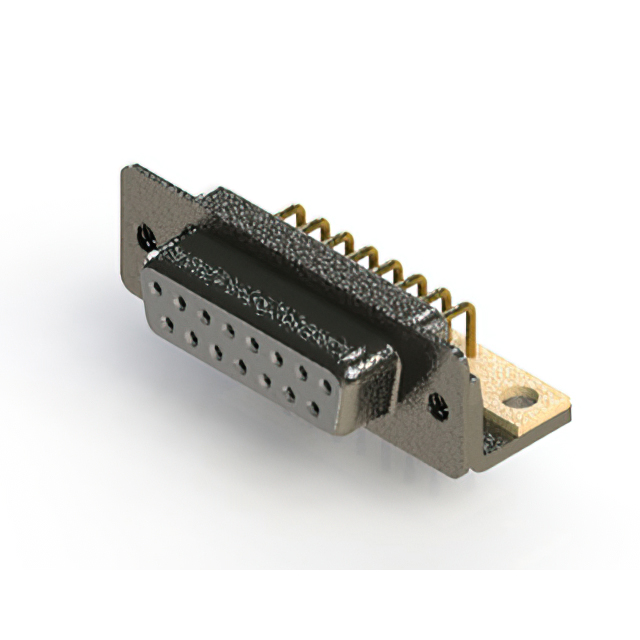

 EDAC Inc. | White | Copper Alloy | Polyamide (PA6T) Nylon 6T | -55 C | 125 °C | Signal | Board Edge Right Angle Through Hole | UL94 V-0 | 15 | 2 | Receptacle Female Sockets | D-Sub | 2 | Mounting Brackets Shielded | Solder | Housing/Shell | 5 A | Gold | 7.2 mm | 0.283 in | 4-40 | 15 µin | 0.38 µm | ||

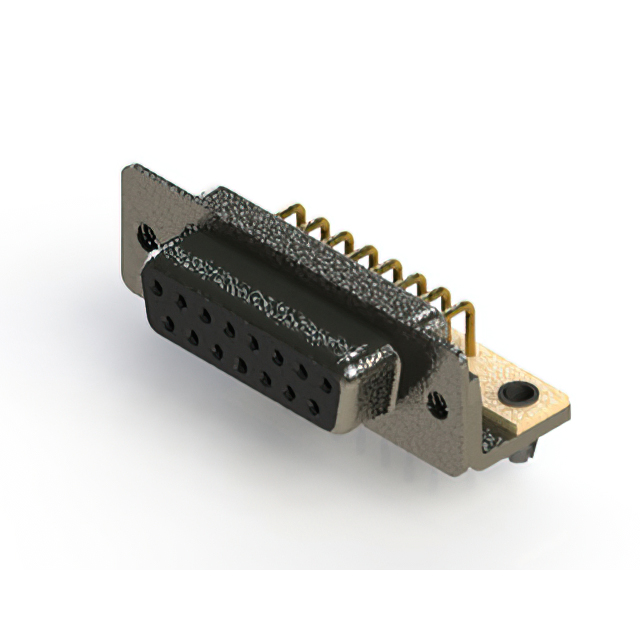

 EDAC Inc. | Black | Copper Alloy | Polyamide (PA6T) Nylon 6T | -55 C | 125 °C | Signal | Board Edge Right Angle Through Hole | UL94 V-0 | 15 | 2 | Receptacle Female Sockets | D-Sub | 2 | Mounting Brackets Shielded | Solder | Housing/Shell | 5 A | Gold | 7.2 mm | 0.283 in | 4-40 | 30 Áin | 0.76 Ám | ||

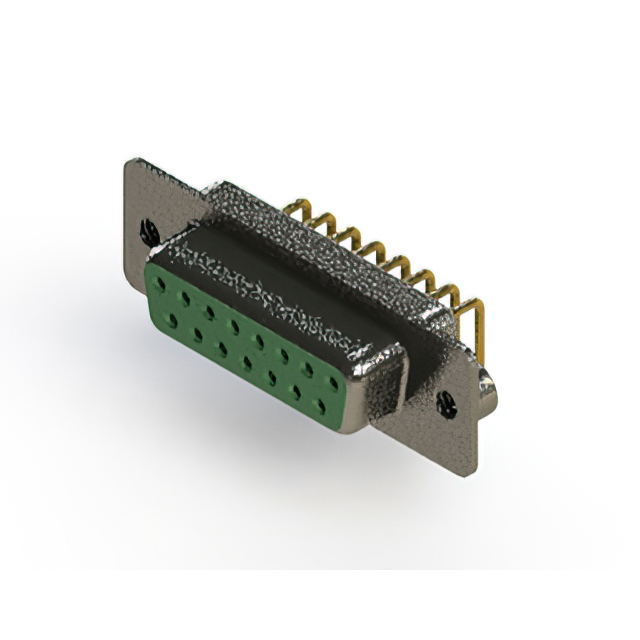

 EDAC Inc. | Green | Copper Alloy | Polyamide (PA6T) Nylon 6T | -55 C | 125 °C | Signal | Board Edge Right Angle Through Hole | UL94 V-0 | 15 | 2 | Receptacle Female Sockets | D-Sub | 2 | Mounting Brackets Shielded | Solder | Housing/Shell | 5 A | Gold | 7.2 mm | 0.283 in | 4-40 | Nickel Plated Steel | 15 µin | 0.38 µm | |

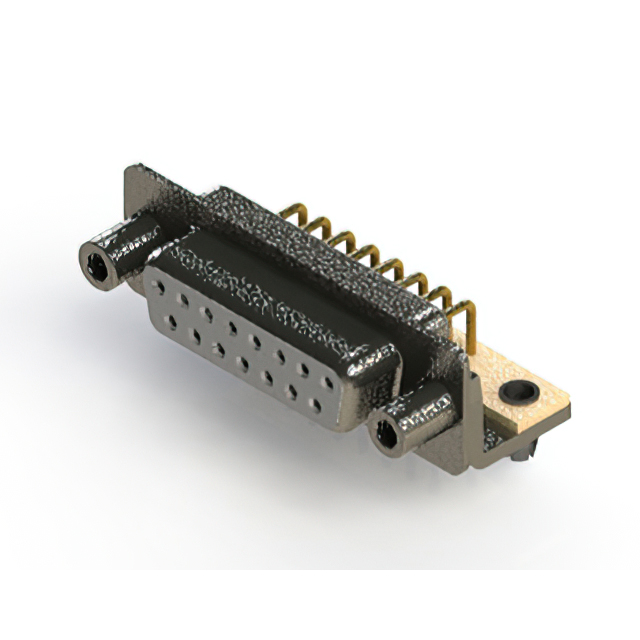

 EDAC Inc. | White | Copper Alloy | Polyamide (PA6T) Nylon 6T | -55 C | 125 °C | Signal | Board Edge Right Angle Through Hole | UL94 V-0 | 15 | 2 | Receptacle Female Sockets | D-Sub | 2 | Shielded | Flash | Solder | Housing/Shell | 5 A | Gold | 7.2 mm | 0.283 in | 4-40 | |||

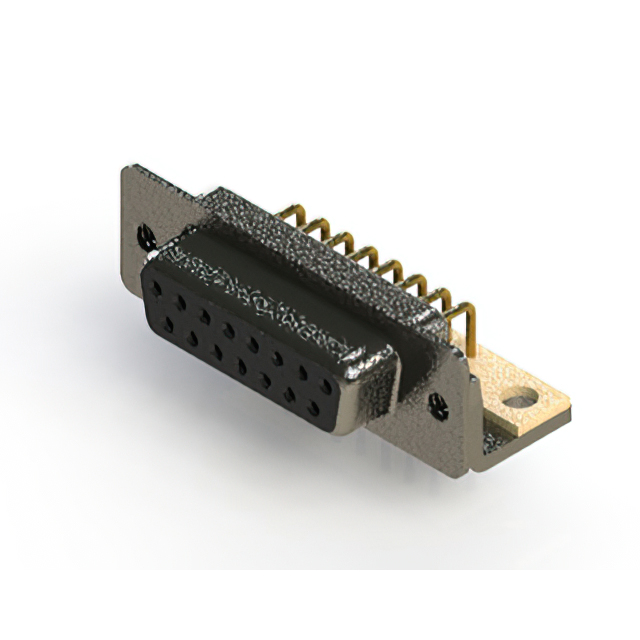

 EDAC Inc. | Black | Copper Alloy | Polyamide (PA6T) Nylon 6T | -55 C | 125 °C | Signal | Board Edge Right Angle Through Hole | UL94 V-0 | 15 | 2 | Receptacle Female Sockets | D-Sub | 2 | Shielded | Solder | Housing/Shell (Unthreaded) | 5 A | Gold | 7.2 mm | 0.283 in | 15 µin | 0.38 µm |
