NPPN122 Series

Catalog

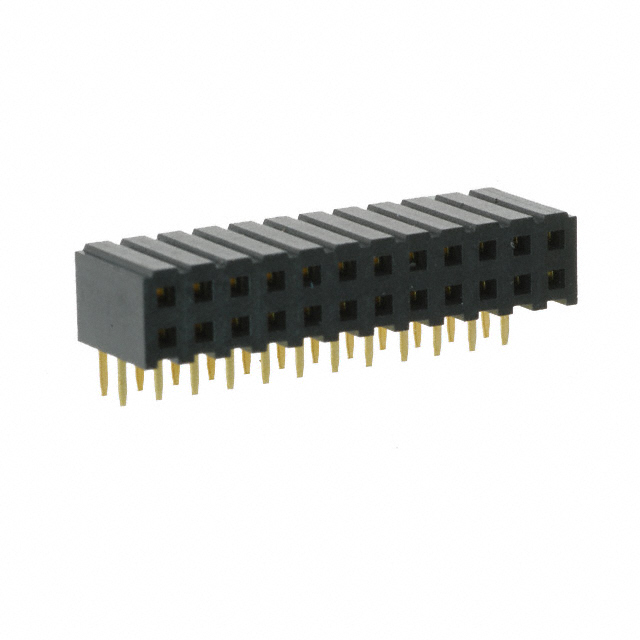

CONN HDR 24P 0.079 GOLD PCB R/A

Part	Contact Shape	Insulation Material	Contact Finish Thickness - Post	Contact Material	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height [z]	Contact Finish - Post	Number of Positions	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Mounting Type	Material Flammability Rating	Insulation Color	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Number of Rows [custom]	Contact Finish Thickness - Mating	Contact Type	Number of Positions Loaded	Termination	Fastening Type	Features	Current Rating (Amps)	Insulation Height	Contact Length - Post [custom]
Sullins Connector Solutions NPPN122FJFN-RC	Square	Nylon 6T Polyamide (PA6T)	Flash	Phosphor Bronze	0.079 "	2 mm	4.85 mm	0.191 in	Gold	24	Header	-40 C	105 ░C	0.118 in	3 mm	Right Angle Through Hole	UL94 V-0	Black	Gold	2 mm	0.079 in	2	Flash	Female Socket	All	Solder	Push-Pull
Sullins Connector Solutions NPPN122GFNP-M81RC	Square	Nylon 6T Polyamide (PA6T)	Flash	Phosphor Bronze	0.079 "	2 mm			Gold	24	Header Top or Bottom Entry	-40 C	105 ░C			Surface Mount	UL94 V-0	Black	Gold	2 mm	0.079 in	2	Flash	Female Socket	All	Solder	Push-Pull	Board Guide Pick and Place	2 A
Sullins Connector Solutions NPPN122AFEN-RC	Square	Nylon 6T Polyamide (PA6T)	Flash	Phosphor Bronze	0.079 "	2 mm	4.3 mm		Gold	24	Header	-40 C	105 ░C		2.79 mm	Through Hole	UL94 V-0	Black	Gold	2 mm	0.079 in	2	Flash	Female Socket	All	Solder	Push-Pull			0.169 "	0.11 in
