8609348861 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

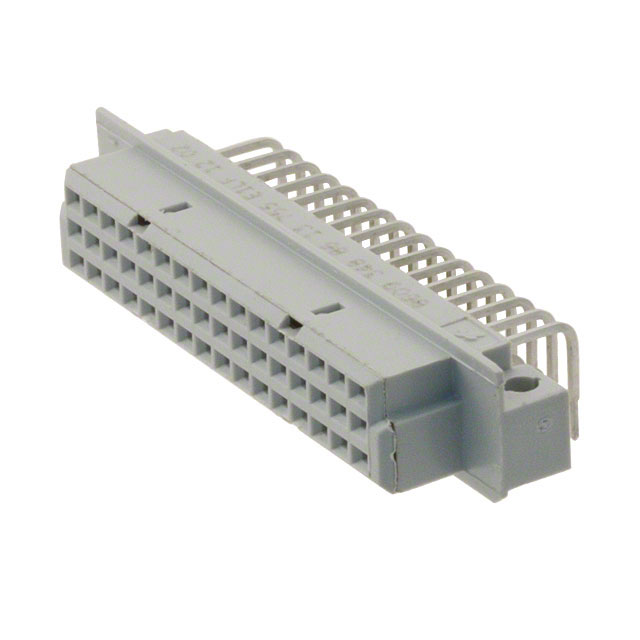

CONN DIN RCPT 48POS PCB RA GOLD
| Part | Style | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Material Flammability Rating | Pitch [x] | Pitch [x] | Connector Type | Number of Positions Loaded | Termination | Number of Rows | Number of Positions | Contact Finish | Current Rating (Amps) | Level, Class |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | R/2 (1/2 R) | Polyester Thermoplastic | -55 °C | 125 °C | Through Hole Right Angle | UL94 V-0 | 2.54 mm | 0.1 in | Receptacle Female Sockets | All | Solder | 3 | 48 | Gold | 1.5 A | |
Amphenol ICC (FCI) | 1/2 R | Polyester Thermoplastic | -55 °C | 125 °C | Through Hole Right Angle | UL94 V-0 | 2.54 mm | 0.1 in | Receptacle | All | Solder | 3 | 48 | Gold | 1.5 A | |
Amphenol ICC (FCI) | R/2 (1/2 R) | Polyester Thermoplastic | -55 °C | 125 °C | Through Hole | UL94 V-0 | 2.54 mm | 0.1 in | Receptacle Female Sockets | All | Solder | 3 | 48 | Gold | 1.5 A | 1 |
