TZB4P400 Series

Catalog

CAP TRIMMER 8.5-40PF 100V SMD

Part	Features	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Voltage - Rated	Adjustment Type	Capacitance Range [Max]	Capacitance Range [Min]	Dielectric Material	Q @ Freq	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Murata Power Solutions Inc. TZB4P400AA10R01	General Purpose	-25 °C	85 °C	4.5 mm	0.177 in	4 mm	0.157 in	Surface Mount	100 V	Top	40 pF	8.5 pF	Ceramic	1 MHz 300	3.2 mm	0.126 in
Murata Power Solutions Inc. TZB4P400BB10B00	General Purpose	-25 °C	85 °C	4.5 mm	0.177 in	4 mm	0.157 in	Surface Mount	100 V	Top	40 pF	8.5 pF	Ceramic	1 MHz 300	3.2 mm	0.126 in
Murata Power Solutions Inc. TZB4P400AB10B00	General Purpose	-25 °C	85 °C	4.5 mm	0.177 in	4 mm	0.157 in	Surface Mount	100 V	Top	40 pF	8.5 pF	Ceramic	1 MHz 300	3.2 mm	0.126 in

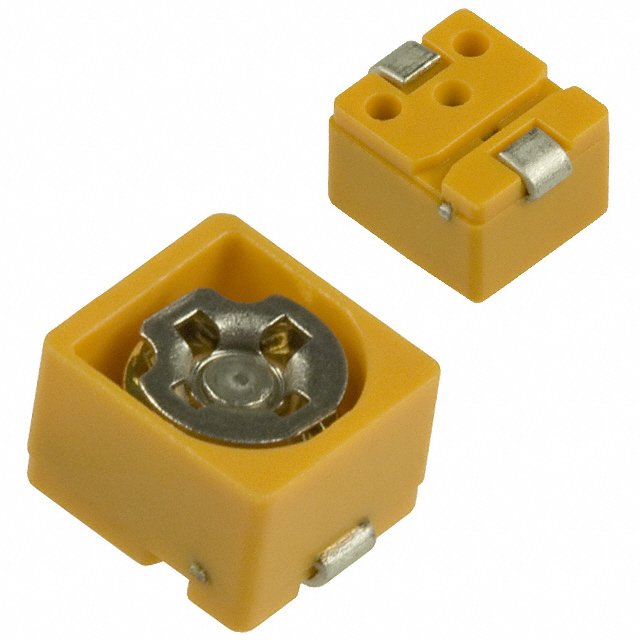

Murata Power Solutions Inc. TZB4P400AA10R00	General Purpose	-25 °C	85 °C	4.5 mm	0.177 in	4 mm	0.157 in	Surface Mount	100 V	Top	40 pF	8.5 pF	Ceramic	1 MHz 300	3.2 mm	0.126 in

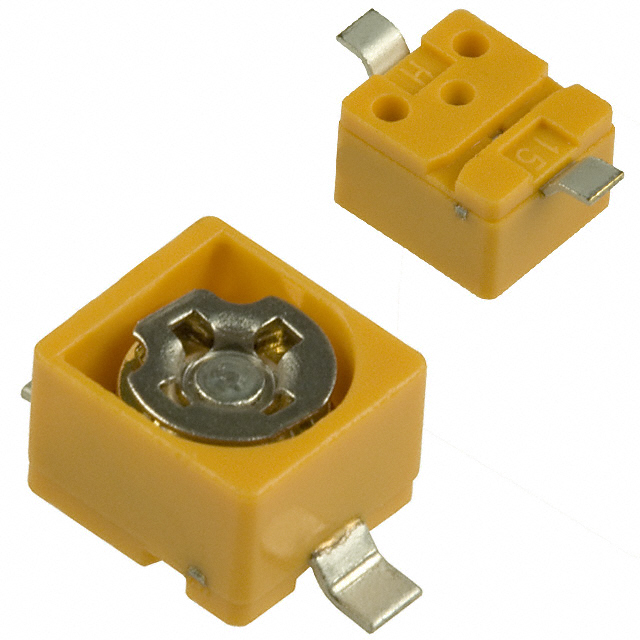

Murata Power Solutions Inc. TZB4P400BA10R00	General Purpose	-25 °C	85 °C	4.5 mm	0.177 in	4 mm	0.157 in	Surface Mount	100 V	Top	40 pF	8.5 pF	Ceramic	1 MHz 300	3.2 mm	0.126 in
Murata Power Solutions Inc. TZB4P400BA10B00	General Purpose	-25 °C	85 °C	4.5 mm	0.177 in	4 mm	0.157 in	Surface Mount	100 V	Top	40 pF	8.5 pF	Ceramic	1 MHz 300	3.2 mm	0.126 in
