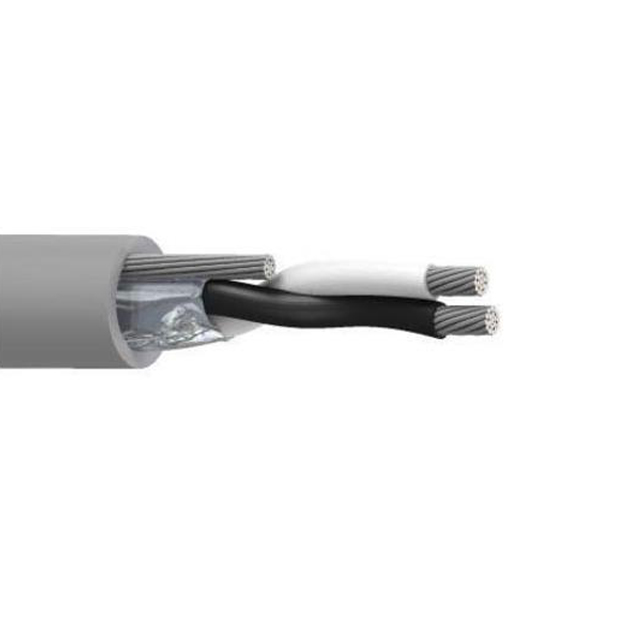

8761MN Series

Catalog

CABLE 2COND 22AWG BLUE SHLD

Part	Shield Material	Shield Coverage	Usage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Material	Jacket Color	Voltage	Cable Type	Number of Conductors	Features	Jacket (Insulation) Material	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Wire Gauge	Length [x]	Length [x]	Length	Length
Belden Inc. 8761MN 006100	Aluminum	100 %	Audio Control Instrumentation	34 AWG	19	0.135 in	3.43 mm	Polypropylene (PP)	80 °C	-20 ░C	Copper Tinned	Blue	300 VDC	Multi-Conductor	2	Drain Wire	Poly-Vinyl Chloride (PVC)	UL Style 2937	0.406 mm	0.016 in	Foil	22 AWG	100 ft	30.5 m

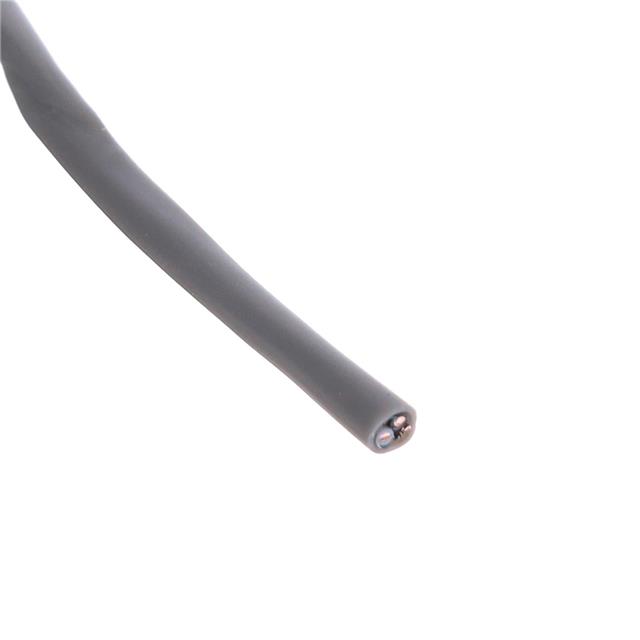

Belden Inc. 8761MN 008100	Aluminum	100 %	Audio Control Instrumentation	34 AWG	19	0.135 in	3.43 mm	Polypropylene (PP)	80 °C	-20 ░C	Copper Tinned	Gray		Multi-Conductor	2	Drain Wire	Poly-Vinyl Chloride (PVC)		0.406 mm	0.016 in	Foil	22 AWG	100 ft	30.5 m
Belden Inc. 8761MN 0061000	Aluminum	100 %	Audio Control Instrumentation	34 AWG	19	0.135 in	3.43 mm	Polypropylene (PP)	80 °C	-20 ░C	Copper Tinned	Blue	300 VDC	Multi-Conductor	2	Drain Wire	Poly-Vinyl Chloride (PVC)	UL Style 2937	0.406 mm	0.016 in	Foil	22 AWG			304.8 m	1000 ft
Belden Inc. 8761MN 0041000	Aluminum	100 %	Audio Control Instrumentation	34 AWG	19	0.135 in	3.43 mm	Polypropylene (PP)	80 °C	-20 ░C	Copper Tinned	Yellow	300 VDC	Multi-Conductor	2	Drain Wire	Poly-Vinyl Chloride (PVC)	UL Style 2937	0.406 mm	0.016 in	Foil	22 AWG			304.8 m	1000 ft
